(05-02) - SERVICE BRAKE ASSEMBLY

Запчасти Case IH KP-525 (05-02) - SERVICE BRAKE ASSEMBLY (5.1) - BRAKES

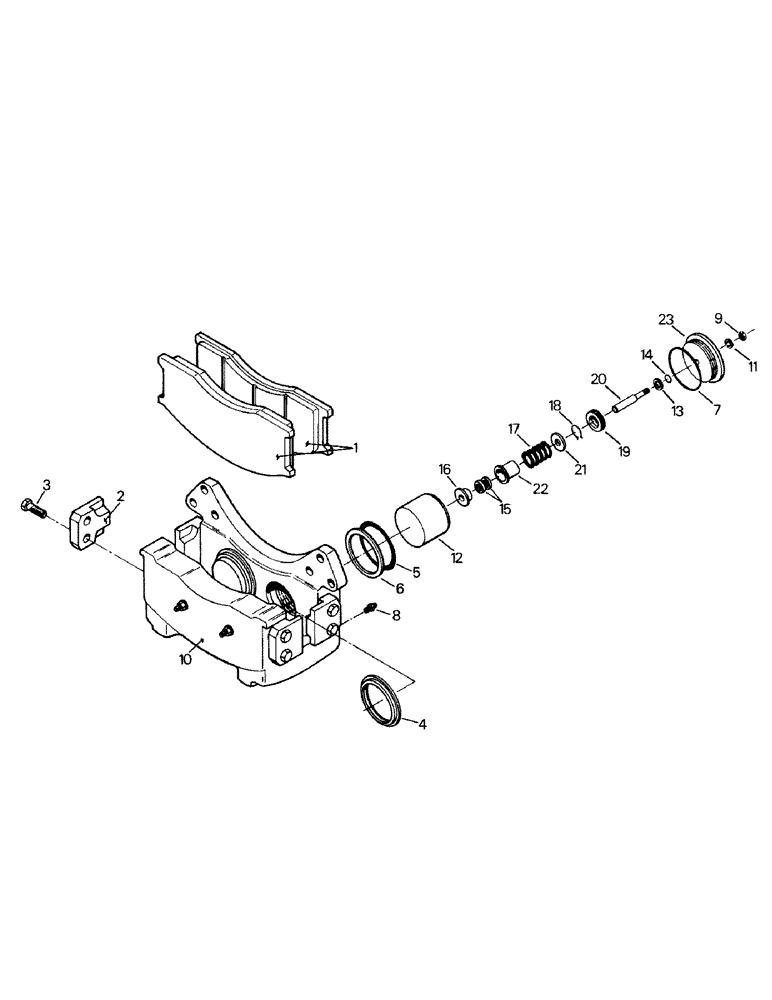

Схема запчастей Case IH KP-525 - (05-02) - SERVICE BRAKE ASSEMBLY (5.1) - BRAKES
20
9
17
1
11
13
4
14
16
2
10
7
3
18
21
6
23
5
19
12
22
15
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-2350T91

BRAKE ASSY.

Service Brake Assy, consists of ref. nos. 1-23

1шт.

90-2404T1

SEAL KIT

Seal Kit (incl Refs. 4-7)

1шт.

1

47-4734T1

PAD

2шт.

2

47-4731

LARGE PLATE

Pad Retainer Plate

4шт.

3

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

8шт.

4

NSS

NOT SOLD SEPARAT

Piston Dust Boot

4шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

6

NSS

NOT SOLD SEPARAT

Backup Ring

4шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

8

47-4742

SCREW

Bleeder

2шт.

9

19-88

NUT,5/16"-24, G5

4шт.

10

NSS

NOT SOLD SEPARAT

Housing

1шт.

11

19-818

NUT,Int Tooth, 5/16"

Lock Washer

4шт.

90-2402T91

PISTON

Sub-Assy, consists of ref. nos. 12-22

4шт.

12

NSS

NOT SOLD SEPARAT

Piston

4шт.

13

90-2401T1

WASHER

Retaining Washer

4шт.

14

90-2403T1

O-RING

4шт.

15

90-2399T1

GRIP

& Pin Sub-Assy

4шт.

16

90-2390T1

GUIDE

Spring Guide

4шт.

17

90-2391T1

SPRING

4шт.

18

90-2392T1

OIL SEAL

Lock Ring

4шт.

19

90-2393T1

OIL SEAL

Threaded Ring

4шт.

20

90-2394T1

PIN

Return Pin

4шт.

21

90-2395T1

RETAINER

Spring Retainer

4шт.

22

90-2396T1

GUIDE

Spring Guide

4шт.

23

90-1776T1

HEAD

Cylinder Head

2шт.
