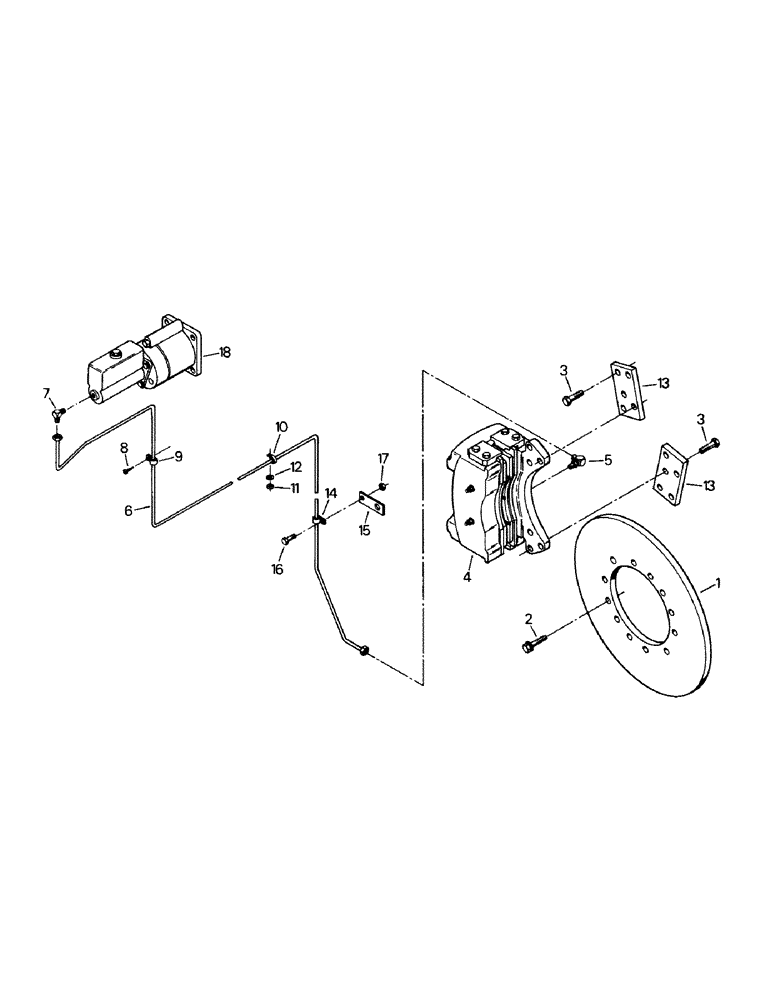

Запчасти Case IH KP-525 (05-01) - SERVICE BRAKE & MOUNTING (5.1) - BRAKES

1

90-2941T1

BRAKE DISC

1шт.

2

19-5875

FLANGE BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

Flanged Capscrew

12шт.

3

223449

BOLT (SPREADER),Hex, 3/4" - 10 x 1 3/4", Gr 8

Capscrew

10шт.

4

Service Brake Assy (see fig. 5-2)

1шт.

5

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4)

1шт.

6

90-4069T2

TUBE,.25" OD

1шт.

7

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

8

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

1шт.

9

32-68

COTTER PIN,3/32" x 1/2"

Clamp

1шт.

10

22-635

MOUNTING CLIP

Clip

1шт.

11

19-76

NUT,1/4"-20, G5

1шт.

12

19-223

WASHER,1/4"

1шт.

13

90-2936T1

Plate

2шт.

14

31-1862

CLAMP

1шт.

15

90-3949T2

Brace

1шт.

16

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

1шт.

17

232-4136

LOCK NUT,3/8"-16, GC

1шт.

18

Brake Master Cylinder (see fig. 5-4)

1шт.
