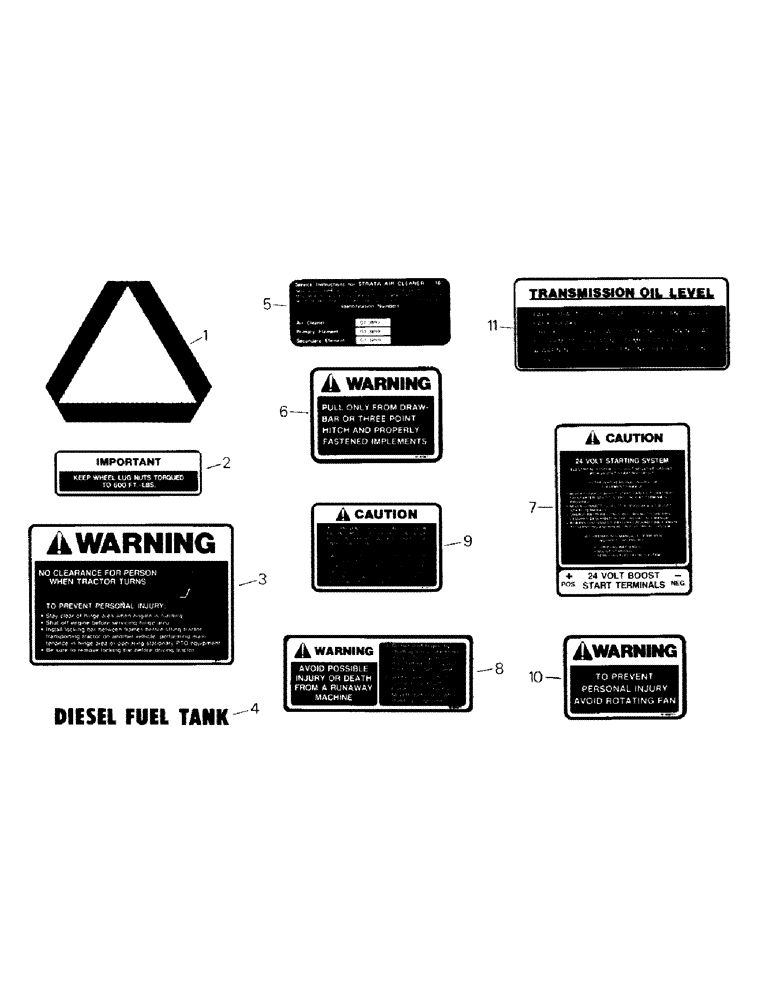

Запчасти Case IH KP-525 (09-03) - CHASSIS DECALS (13) - DECALS

1

26-1

TRAFFIC SIGN

SMV Emblem Plate (metal backed)

1шт.

26-8

EMBLEM CASE/IH

SMV Decal (mounting hardware listed below)

1шт.

19-233

SCREW,Sl Rd Hd, #10 - 24 x 1/2", Gr 2

Machine Screw

2шт.

19-567

NUT,#10-24

2шт.

2

2-5348T1

ADHESIVE

Wheel Lug Nuts Decal

4шт.

3

2-6876T1

DECAL

Center Hinge Decal

2шт.

4

26-242T1

DECAL

Diesel Fuel Decal

1шт.

5

47-4461

DECAL

Air Cleaner Decal (16")

1шт.

6

1-5726T1

DECAL

Implement Attachment Decal

1шт.

7

2-7182T1

DECAL

Booster Battery Decal

1шт.

8

2-6940T1

DECAL

Safety Decal

2шт.

9

2-7133T1

DECAL

Hood Lock Decal

2шт.

10

1-5727T1

DECAL

Fan Warning Decal

2шт.

11

90-2247T1

DECAL

Oil Level Decal

1шт.

26-1059

STRIP

Safety Walk Tape (not shown)

3шт.

60-1127T1

STRIP

Safety Walk Tape (not shown)

1шт.
