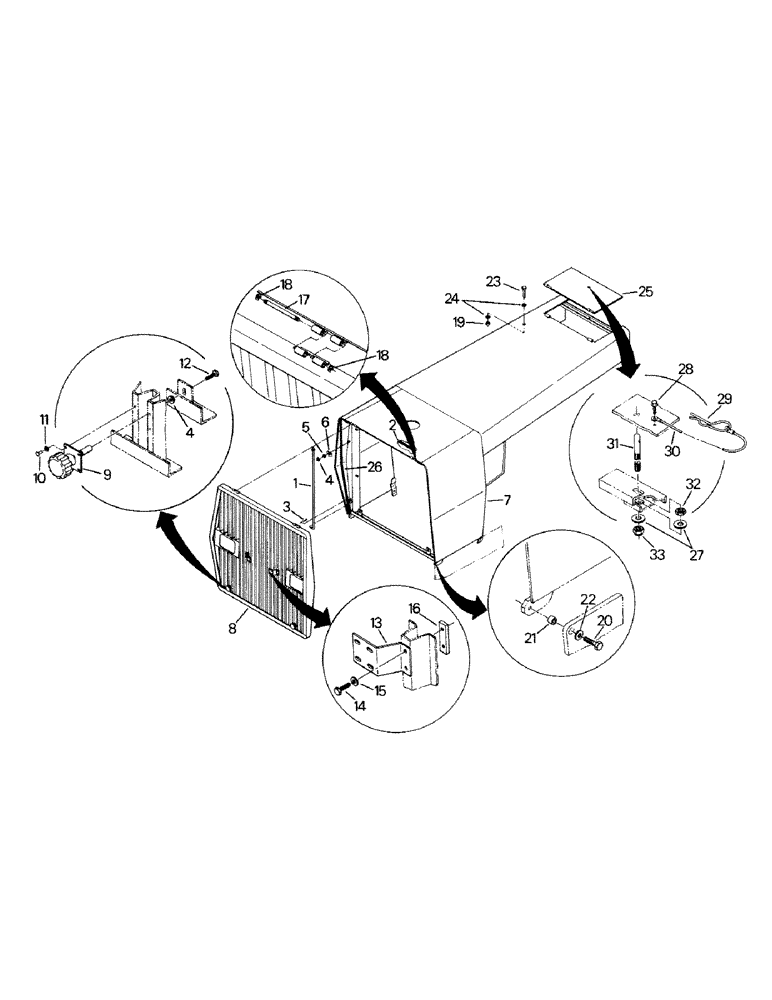

Запчасти Case IH KP-525 (06-02) - HOOD & GRILLE (12) - FRAME

1

47-4500

LATCH

1шт.

2

70-2921T1

Foam

1шт.

3

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

4

19-77

NUT,5/16"-18, G5

3шт.

5

19-700

WASHER,5/16"

1шт.

6

1-1291

CLIP

1шт.

7

70-2891T1

HOOD

1шт.

8

70-2927T1

GRILLE

1шт.

9

70-2914T1

LATCH

Assy

2шт.

10

19-157

RIVET

Pop Rivet

8шт.

11

19-281

WASHER,#8

8шт.

12

19-949

SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"

Capscrew

2шт.

13

70-2977T1

SUPPORT

Medallion Bracket (Left)

1шт.

70-2978T1

SUPPORT

Medallion Bracket (Right)

1шт.

14

19-611

BOLT,1/4" - 20 x 1/2", Gr 5

Capscrew

4шт.

15

19-223

WASHER,1/4"

4шт.

16

70-2230T1

LARGE PLATE

Tapped Plate

2шт.

17

70-1996T2

PIN

Rod

2шт.

18

70-2600T1

RING, SNAP

Retaining Ring

4шт.

19

19-81

NUT,1/2"-13, G5

2шт.

20

19-430

BOLT,7/16" - 20 x 1 1/4", Gr 8

Capscrew

2шт.

21

70-2905T1

BUSHING

2шт.

22

19-643

WASHER,7/16", SAE

2шт.

23

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

Capscrew

2шт.

24

19-463

WASHER,1/2", SAE

4шт.

25

47-4433

Hood Access Cover

1шт.

26

70-2920T1

Foam

1шт.

1-545

LATCH

Hood Latch Assy, Includes: Ref. 27 - 33

1шт.

27

19-463

WASHER,1/2", SAE

2шт.

28

281-1438

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/2"

Tapping Screw

1шт.

29

19-5768

PIN

Clip Pin

1шт.

30

2-4120T1

CABLE

Lanyard Cable

1шт.

31

2-4121T1

PIN

1шт.

32

19-93

NUT,1/2"-20, G5

1шт.

33

231-2448

LOCK NUT,1/2"-20, GB

1шт.
