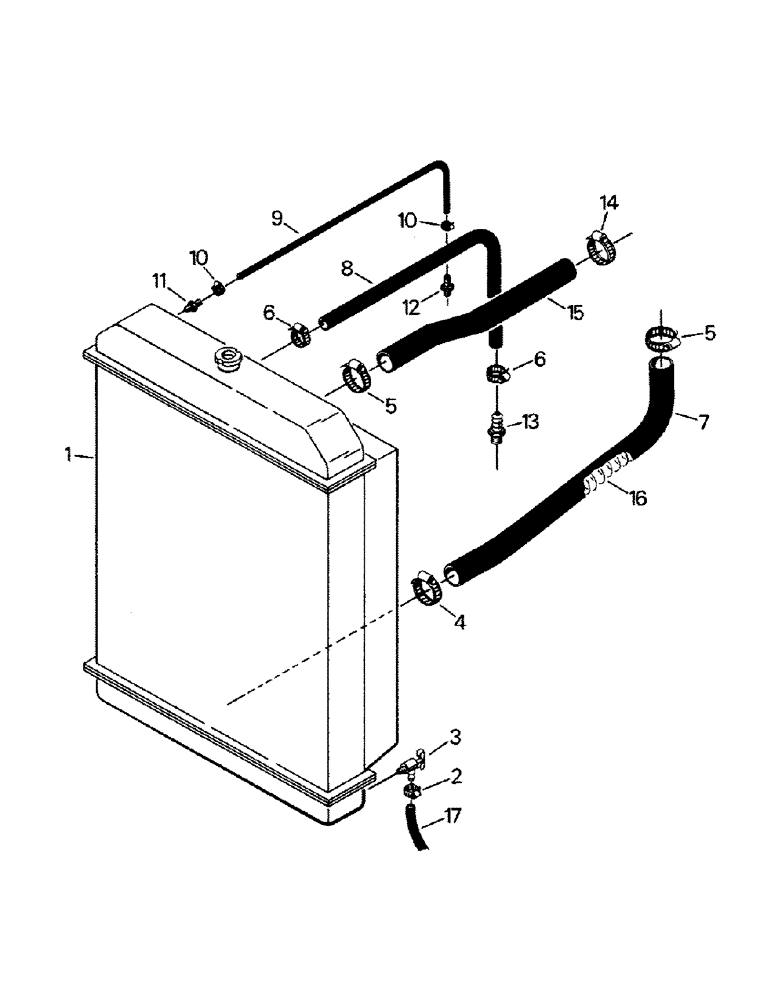

Запчасти Case IH KP-1400 (04-20) - RADIATOR AND HOSES, CUMMINS 855 ENGINE (04) - Drive Train

1

RADIATOR ASSY (see figure 4-21)

1шт.

2

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

1шт.

These Refs. 2 and 17, are only used on early models, they are not needed and will not be used on later models

1шт.

3

31-159

COCK, DRAIN

DRAIN COCK

1шт.

4

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

1шт.

5

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP

2шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

7

31-1510T1

RADIATOR HOSE,2.500" ID, 3.00" ID x 28.31", SAE 20R4

Replaces 31-1510, P/N 31-1510T1 will now include the hose spring while with hose P/N 31-1510 the spring, ref. 16, is a Separate Part 2.500" ID, 3.00" ID x 28.31", SAE 20R4

1шт.

8

31-1503

HOSE,1.00" ID x 28.00"

1шт.

9

31-1184

HOSE,6.4 mm ID x 914.40 mm

1шт.

10

32-29

HOSE CLAMP

CLAMP

2шт.

11

31-1186

FITTING

BARBED FITTING

1шт.

12

31-615

ROD, CONNECTING

BARBED FITTING

1шт.

13

31-248

FITTING

KING NIPPLE

1шт.

14

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP

1шт.

15

31-1511

RADIATOR HOSE,2.25" ID x 22.06", SAE 20R4 CLASS D2

2.25" ID x 22.06", SAE 20R4 CLASS D2

1шт.

16

32-1007

SPRING

HOSE SPRING, hose P/N 31-1510T1 will now include this spring, while with hose P/N 31-1510 this spring is a seperate ref.

1шт.

17

31-1208

HOSE,0.38" ID x 12.00"

1шт.

These Refs. 2 and 17, are only used on early models, they are not needed and will not be used on later models

1шт.
