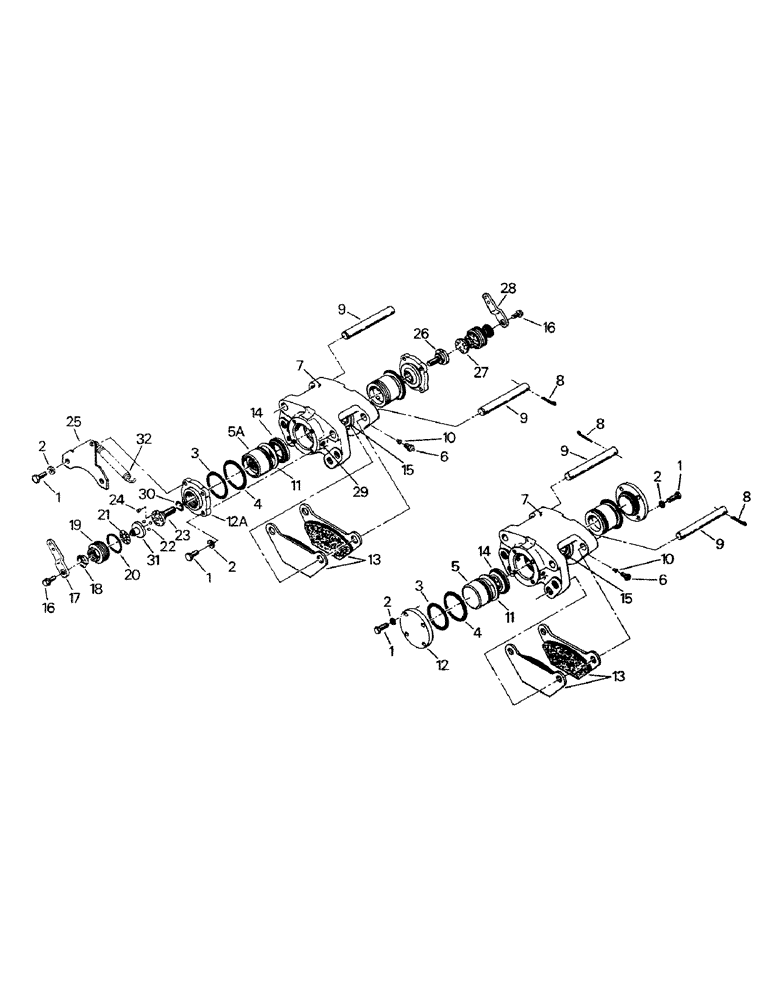

Запчасти Case IH KP-1400 (05-2) - BRAKE CALIPER ASSEMBLIES (5.1) - BRAKES

90-1993T91

CALIPER

BRAKE CALIPER ASSY (with park brake), consists of 1-32

1шт.

90-4070T91

CALIPER

BRAKE CALIPER ASSY (w/o park brake), consists of 1-15

1шт.

1

90-3445T1

SCREW,Hex, 3/8" - 16 x 1"

CAPSCREW

8шт.

2

19-117

LOCK WASHER,3/8"

(qty 4 on brake caliper P/N 90-1993T91) 3/8"

8шт.

3

90-3479T1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

O-RING

2шт.

4

90-3480T1

SEAL

2шт.

5

90-3463T1

PISTON

2шт.

5a

90-3443T1

PISTON

2шт.

6

90-3460T1

SCREW

BLEEDER SCREW

3шт.

7

90-3442T1

HOUSING

CALIPER HOUSING

1шт.

8

19-658

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

90-3458T1

PIN

2шт.

10

90-3459T1

INSERT

TUBE SEAT INSERT

4шт.

11

90-3481T1

INSULATOR

2шт.

12

90-3464T1

CAP

END CAP

2шт.

12a

90-3444T1

ANCHOR

MOUNT

1шт.

13

90-3457T1

BRAKE LINING

PAD HOLDER ASSY

2шт.

14

90-3461T1

RETAINER

2шт.

15

90-3482T1

BOOT

2шт.

16

90-3456T1

SERRATED SCREW,Hex Serrated Washer

MACHINE SCREW

2шт.

17

90-3455T1

LEVER

(left)

1шт.

18

90-3477T1

SEAL

2шт.

19

90-3453T1

RETAINER

2шт.

20

90-3478T1

O-RING

2шт.

21

90-3452T1

THRUST BEARING

THRUST BEARING

2шт.

22

90-3449T1

BALL

6шт.

23

90-3447T1

SCREW

THRUST SCREW (left)

1шт.

24

90-3448T1

PIN

2шт.

25

90-3462T1

SUPPORT

BRACKET

2шт.

26

90-3446T1

SCREW

THRUST SCREW (right)

1шт.

27

90-3450T1

SHAFT

ACTUATOR SHAFT (right)

1шт.

28

90-3454T1

LEVER

(right)

1шт.

29

NSS

NOT SOLD SEPARAT

CAP PLUG

1шт.

30

90-3483T1

O-RING

O-RING

2шт.

31

90-3451T1

SHAFT

ACTUATOR SHAFT (left)

1шт.

32

90-2902T1

SPRING

2шт.
