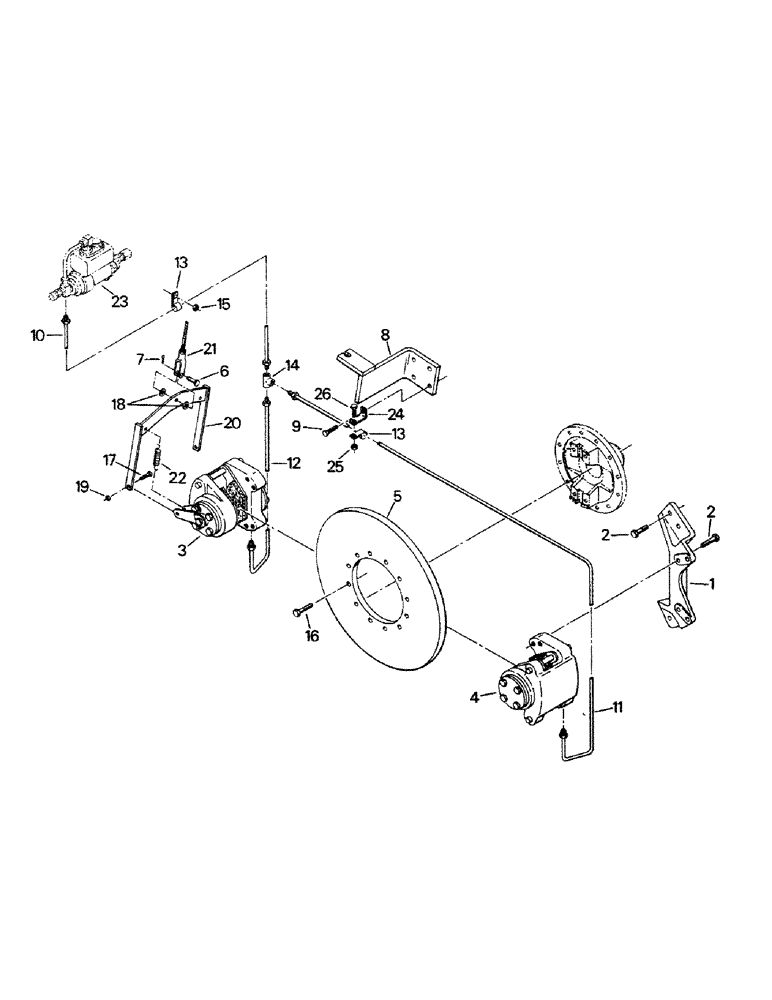

Запчасти Case IH KP-1400 (05-1) - BRAKE SYSTEM (5.1) - BRAKES

1

90-1978T2

ANCHOR

BRAKE MOUNT

2шт.

2

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

CAPSCREW

16шт.

3

BRAKE CALIPER (see figure 5-2)

1шт.

4

BRAKE CALIPER (see figure 5-2)

1шт.

5

90-1367T2

BRAKE DISC

1шт.

6

19-145

CLEVIS PIN,3/8" x 1.06"

1шт.

7

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

90-1860T4

CABLE MOUNT BRACKET

1шт.

9

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

CAPSCREW

4шт.

10

90-2184T1

TUBE,.25" OD

1шт.

11

90-2185T1

TUBE,.25" OD

1шт.

12

90-2186T1

TUBE,.25" OD

1шт.

13

31-1862

CLAMP

2шт.

14

31-1865

TEE

1шт.

15

9417954

NUT,5/16"-18, G5

1шт.

16

19-817

SCREW,Hex, 5/8"-11 x 2", G8

CAPSCREW

12шт.

17

19-654

BOLT,Hex, 5/16" - 18 x 1", Gr 8

CAPSCREW

2шт.

18

19-107

WASHER

2шт.

19

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

20

90-4030T1

SUPPORT

BRACKET

1шт.

21

19-139

YOKE

CLEVIS

1шт.

22

90-2902T1

SPRING

(incl with brake caliper)

1шт.

23

BRAKE MASTER CYLINDER ASSY (see figure 5-3)

1шт.

24

90-4074T1

STRAP

1шт.

Refs. will only be found on certain early models, they are not needed and will not be present on later models.

1шт.

25

19-78

SPECIAL NUT,3/8"-16, G5

1шт.

Refs. will only be found on certain early models, they are not needed and will not be present on later models.

1шт.

26

19-889

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

CAPSCREW

1шт.

Refs. will only be found on certain early models, they are not needed and will not be present on later models.

1шт.
