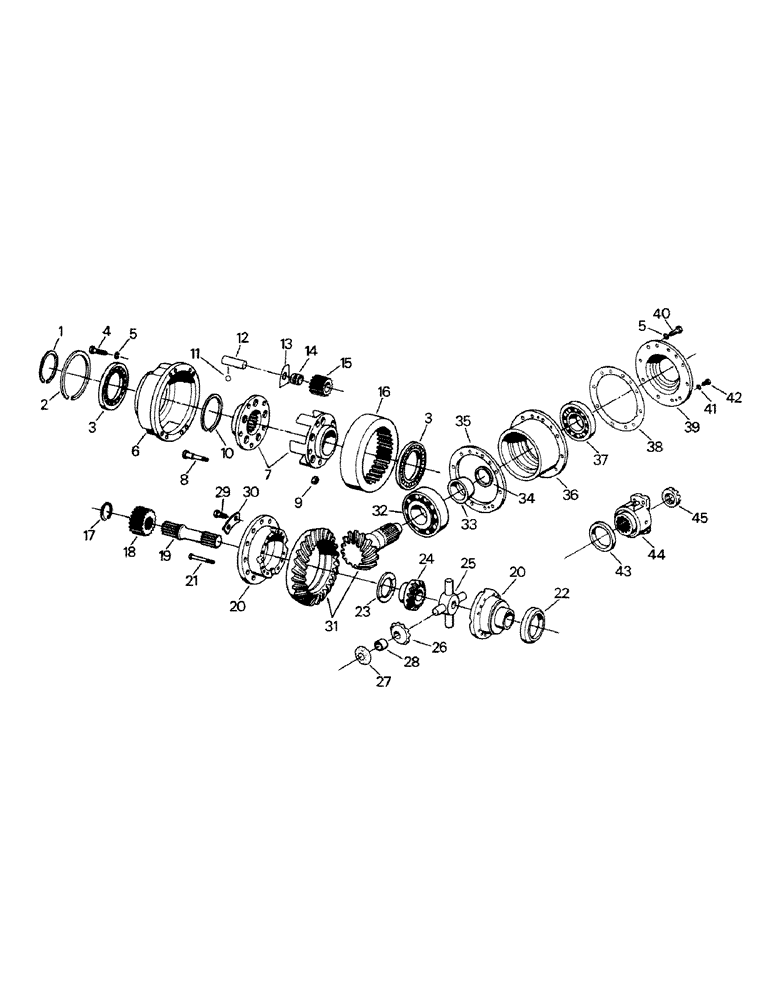

Запчасти Case IH KP-1360 (04-56) - AXLE DIFFERENTIAL AND INNER PLANET GEARS, K594.00/10 (04) - Drive Train

1

1-6726

CIRCLIP

SNAP RING

4шт.

2

1-6727

RING, SNAP

SNAP RING

2шт.

3

1-6728

BALL BEARING

4шт.

4

1-6729

CAPSCREW (long)

8шт.

1-6730

CAPSCREW,Hex, M12 x 1.5 x 55mm, Gr 10.9

(short)

8шт.

5

1-6731

SPRING WASHER

LOCK WASHER

26шт.

6

1-6732

BEARING BLOCK

2шт.

1-6733

GEAR

INNER PLANET GEAR ASSY, consists of ref. nos. 7-15

2шт.

7

1-6734

INNER PLANET CARRIER (incl refs. 8 & 9)

2шт.

8

1-6735

SCREW,M14 x 1.5 x 96mm, Cl 10.9

SHOULDERED CAPSCREW

10шт.

9

1-6736

NUT

10шт.

10

16-1609

RING, SNAP

SNAP RING

2шт.

11

1-6737

BALL

STEEL BALL

10шт.

12

16-1606

PINION

PLANET PIN

10шт.

13

1-6738

SPACER

THRUST WASHER

20шт.

14

16-1603

NEEDLE BEARING,30mm ID x 42mm OD x 30mm W

NEEDLE ROLLER BEARING

20шт.

15

16-1604

PINION

DIFF PINION GEAR

10шт.

16

1-6739

RING

INNER RING GEAR

2шт.

17

16-1596

RING, SNAP

SNAP RING

2шт.

18

16-1602

PINION

SUN GEAR

2шт.

19

1-6741

SHAFT

INNER DIFF SHAFT

2шт.

1-6742

HOUSING

DIFF HOUSING ASSY, consists of ref. nos. 20-28

1шт.

20

1-6743

HOUSING

DIFF HOUSING HALVES

1шт.

21

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

CAPSCREW

12шт.

22

16-1564

BAFFLE

Oil

1шт.

23

16-1551

SPACER

(4.6 mm)

1шт.

16-1552

SPACER

(4.7 mm)

1шт.

16-1553

SPACER

(4.8 mm)

1шт.

16-1554

SPACER

(4.9 mm)

1шт.

16-1555

SPACER

(5.0 mm)

1шт.

16-1556

SPACER

(5.1 mm)

1шт.

16-1557

SPACER

(5.2 mm)

1шт.

16-1558

SPACER

(5.3 mm)

1шт.

24

16-1559

PINION

MAIN DRIVE PINION GEAR

2шт.

25

16-1560

DIFF. SPIDER

SPIDER

1шт.

26

16-1561

PINION

DIFF PINION GEAR (incl ref. 28)

1шт.

27

16-1563

WASHER

4шт.

28

16-1562

BUSHING

4шт.

29

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

CAPSCREW

12шт.

30

16-1546

LARGE PLATE

TAB WASHER

6шт.

31

90-3385T1

GEAR

RING GEAR & PINION (front) (incl refs. 29, 30 & 45)

1шт.

90-3384T1

GEAR-SET

RING GEAR & PINION (rear) (incl refs. 29, 30 & 45)

1шт.

32

1-6749

TAPERED BEARING

1шт.

33

1-6750

SPACER

BUSHING

1шт.

34

16-1572

SHIM

SPACER (2.05 mm)

1шт.

16-1573

SPACER

(2.00 mm)

1шт.

16-1574

SPACER

(1.00 mm)

1шт.

16-1575

SPACER

(.50 mm)

1шт.

16-1576

SPACER

(.20 mm)

1шт.

16-1577

SPACER

(.10 mm)

1шт.

35

1-6751

SHIM

(1.00 mm)

1шт.

1-6752

SHIM

(.50 mm)

1шт.

1-6753

SHIM

(.30 mm)

1шт.

1-6754

SHIM

(.25 mm)

1шт.

1-6755

SHIM

(.20 mm)

1шт.

36

1-6756

BUSHING

CARRIER

1шт.

37

16-1582

TAPERED BEARING

1шт.

38

1-6758

GASKET

1шт.

39

1-6759

COVER

1шт.

40

1-6760

CAPSCREW

10шт.

41

16-1633

SPRING WASHER

LOCK WASHER

2шт.

42

1-6761

CAPSCREW

2шт.

43

1-6857

SEALING RING

SEAL

2шт.

44

1-6763

YOKE

1шт.

45

1-6764

NUT

SLOTTED NUT

1шт.
