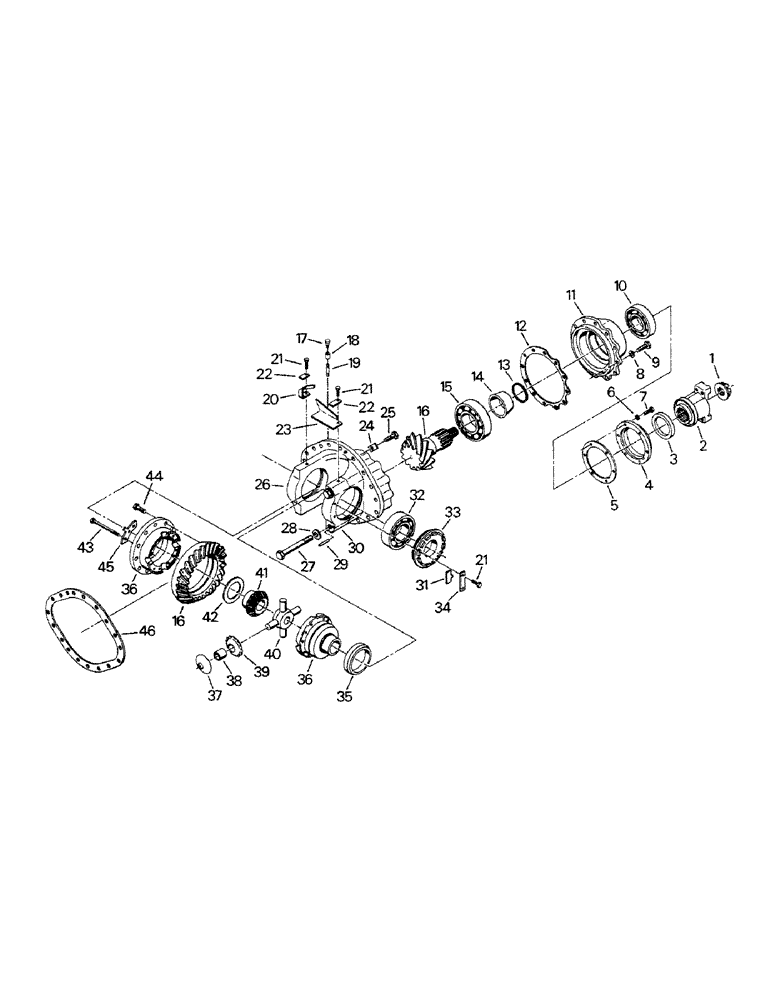

Запчасти Case IH KP-1360 (04-52) - DIFFERENTIAL AND CARRIER ASSEMBLY, K598.60/70 (04) - Drive Train

90-4487T91

DIFFERENTIAL

DIFF ASSY (front)

1шт.

90-4486T91

DIFFERENTIAL

DIFF ASSY (rear) (does not incl refs. 17-19, 24, 25, 29, & 46)

1шт.

1

16-1589

NUT

1шт.

16-1590

COTTER PIN,M6.3 x 63

1шт.

2

1-6763

YOKE

1шт.

3

90-2509T1

SEALING RING

1шт.

4

90-4517T1

COVER

1шт.

5

90-4516T1

GASKET

1шт.

6

16-1586

SPRING WASHER

LOCK WASHER

6шт.

7

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

CAPSCREW

6шт.

8

16-1592

LOCK WASHER

LOCK WASHER

12шт.

9

16-1621

SCREW,Hex, M14 x 1.5 x 45mm, Gr 10.9

NUT

12шт.

10

16-1582

TAPERED BEARING

BEARING

1шт.

11

90-4515T1

HOUSING

BEARING HOUSING

1шт.

12

16-1566

SHIM

(1.00mm)

1шт.

16-1567

SHIM

(.50 mm)

1шт.

16-1568

SHIM

(.30 mm)

1шт.

16-1570

SHIM

(.25 mm)

1шт.

16-1569

SHIM

(.20 mm)

1шт.

13

90-4504T1

SPACER

(4.00mm)

1шт.

90-4505T1

SPACER

(4.04 mm)

1шт.

90-4506T1

SPACER

(4.08 mm)

1шт.

90-4507T1

SPACER

(4.12 mm)

1шт.

90-4508T1

SPACER

(4.16 mm)

1шт.

Adj drawbar kit (field installation) P/N 35-1472T91 incl refs. 9, 24, 28 & 30-40). With plate P/N 70-3029T1 the top mounting hardware is 1/2" (P/N 19-042 - capscrew, 19-109 - washer, 19-961 - washer & 19-081 - nut). (F) - Superseded - P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

90-4509T1

SPACER

(4.20 mm)

1шт.

90-4510T1

SPACER

(4.40 mm)

1шт.

90-4511T1

SPACER

(4.60 mm)

1шт.

90-4512T1

SPACER

(4.80 mm)

1шт.

90-4513T1

SPACER

(5.00 mm)

1шт.

90-4514T1

SPACER

(5.20 mm)

1шт.

14

90-4503T1

SPACER

SLEEVE

1шт.

15

16-1565

TAPERED BEARING

BEARING

1шт.

16

90-4502T91

GEAR, BEVEL

RING GEAR & PINION (front)

1шт.

90-4501T91

GEAR, BEVEL

RING GEAR & PINION (rear) (incl refs. 1, 44 & 45)

1шт.

17

1-1359

BREATHER

VENT

1шт.

18

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING

1шт.

19

31-1841

CONDUIT

NIPPLE

1шт.

20

90-4491T1

LARGE PLATE

BAFFLE PLATE (front)

1шт.

90-4490T1

LARGE PLATE

BAFFLE PLATE (rear)

1шт.

21

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

8шт.

22

90-4492T1

LARGE PLATE

LOCKING TAB

2шт.

23

90-4494T1

LARGE PLATE

BAFFLE PLATE (front)

1шт.

90-4493T1

LARGE PLATE

BAFFLE PLATE (rear)

1шт.

24

16-1520

WASHER

LOCK WASHER

12шт.

16-1521

WASHER

LOCKING PLATE

6шт.

25

16-1519

BOLT,Hex, M12 x 1.75 x 38mm, Gr 10.9

CAPSCREW

18шт.

26

90-4488T91

HOUSING

DIFF HOUSING ASSY (incl refs. 27, 28 & 30)

1шт.

27

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

CAPSCREW

2шт.

28

60-4489T1

WASHER

2шт.

29

16-1514

DOWEL

PIN

2шт.

30

NSS

NOT SOLD SEPARAT

BEARING CAP

1шт.

31

16-1525

LARGE PLATE

LOCKING TAB WASHER

1шт.

16-1526

LARGE PLATE

LOCKING TAB WASHER

1шт.

16-1527

LARGE PLATE

LOCKING TAB WASHER

1шт.

32

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING

2шт.

33

16-1522

SLOTTED NUT

RETAINING RING

2шт.

34

16-524

X

LOCKING PLATE

2шт.

35

16-1564

BAFFLE

Oil, Plate

1шт.

16-1547

DIFFERENTIAL

DIFF ASSY, consists of ref. nos. 36-43

1шт.

36

16-1548

CAGE ASSY.

DIFF CASE HALVES (incl refs. 35 & 43)

1шт.

37

16-1563

WASHER

4шт.

38

16-1562

BUSHING

4шт.

39

15-1561

GEAR (incl refs. 37 & 38)

4шт.

40

16-1560

DIFF. SPIDER

SPIDER

1шт.

41

16-1559

PINION

GEAR

2шт.

42

16-1551

SPACER

(4.6 mm)

2шт.

16-1552

SPACER

(4.7 mm)

2шт.

16-1553

SPACER

(4.8 mm)

2шт.

16-1554

SPACER

(4.9 mm)

2шт.

16-1555

SPACER

(5.0 mm)

2шт.

16-1556

SPACER

(5.1 mm)

2шт.

16-1557

SPACER

(5.2 mm)

2шт.

16-1558

SPACER

(5.3 mm)

2шт.

43

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

CAPSCREW

12шт.

44

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

CAPSCREW

12шт.

45

16-1546

LARGE PLATE

LOCKING PLATE

6шт.

46

16-1531

GASKET

1шт.
