Запчасти Case IH KP-1360 (04-47) - ELECTRIC SHIFT ASSEMBLY, LATER STYLE (04) - Drive Train

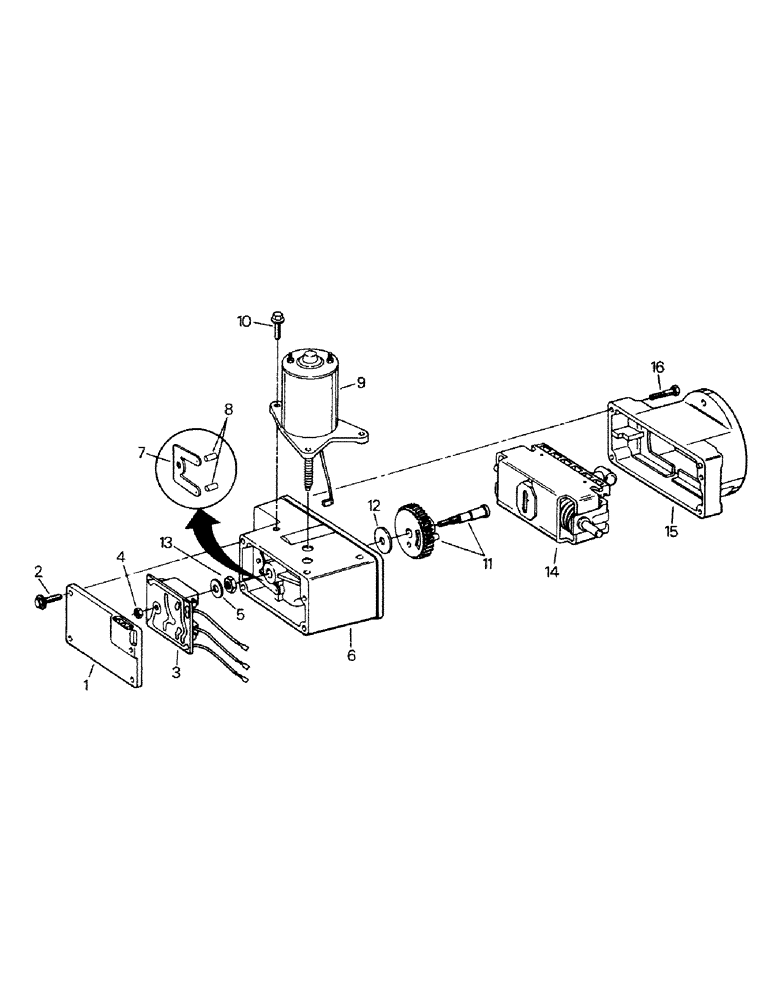

Схема запчастей Case IH KP-1360 - (04-47) - ELECTRIC SHIFT ASSEMBLY, LATER STYLE (04) - Drive Train
5
13
12
15
2
1
3
6
8
9
16
10
4
11
14
7

Артикул

Название

Примечание

Количество

90-4391T91

SHIFTING UNIT

ELECTIC SHIFT ASSY, consists of ref. nos. 1-18

1шт.

1

90-4542T1

COVER

1шт.

2

90-4552T1

SCREW

CAPSCREW

4шт.

3

90-4550T1

BOARD, PRINTED CIRCU

CIRCUIT BOARD ASSY (incl refs. 4 & 5)

1шт.

4

NSS

NOT SOLD SEPARAT

NUT

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER

1шт.

6

90-4543T91

HOUSING

MOTOR HOUSING ASSY (incl ref. 7)

1шт.

7

90-4544T1

SPRING

SWITCH SPRING

1шт.

8

90-4545T1

GEAR

CAM PIN

2шт.

9

90-4546T91

MOTOR, ELECTRIC

MOTOR ASSY (incl ref. 17)

1шт.

10

90-4553T1

SCREW

CAPSCREW

3шт.

11

90-4547T91

GEAR

& SHAFT ASSY (incl refs. 4, 5, 8, 12, 13 & 17)

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER

1шт.

13

NSS

NOT SOLD SEPARAT

NUT

1шт.

14

90-4548T1

SLIDE

SIDE BLOCK & SHAFT

1шт.

15

90-4549T1

HOUSING

1шт.

16

90-4554T1

SCREW

CAPSCREW

4шт.

17

90-4551T1

LUBRICANT (not shown)

1шт.

18

1-1055

SEALANT

RTV SEALANT (not shown)

1шт.

Выбрано товаров: 19
