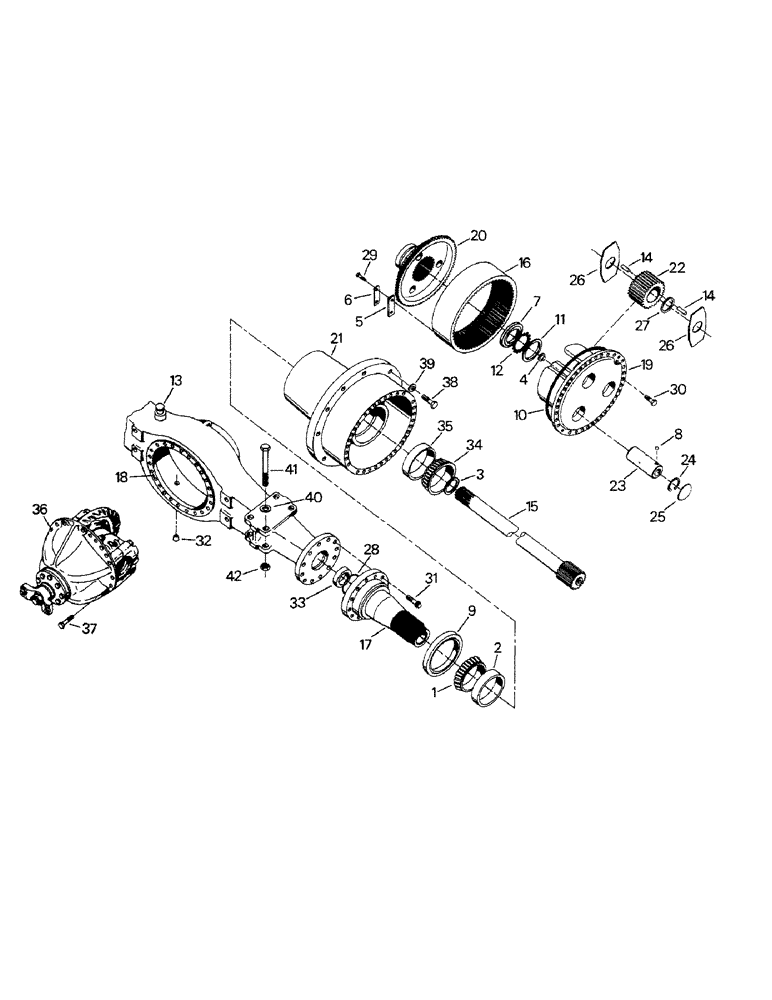

Запчасти Case IH KP-1360 (04-40) - AXLE ASSEMBLY, S-40 (04) - Drive Train
№
Артикул
Название
Примечание
Количество
90-1832T91
AXLE ASSY (front)
1шт.
Standard S-40 diff
1шт.
90-1831T91
PAN
AXLE ASSY (rear)
1шт.
Standard S-40 diff
1шт.
AXLE ASSY (front)
1шт.
Optional true-trac diff
1шт.
AXLE ASSY (rear)
1шт.
Optional true-trac diff
1шт.
90-1834T91
AXLE ASSY (front)
1шт.
Optional no-spin diff
1шт.
90-4059T91
AXLE ASSY (front)
1шт.
Optional controlled traction diff
1шт.
No S/N available (approx 4-1-83)
1шт.
90-4060T91
AXLE ASSY (rear)
1шт.
Optional controlled traction diff
1шт.
No S/N available (approx 4-1-83)
1шт.
90-1822T92
AXLE ASSY (less diff), consists of 1-35
1шт.
1-1413
AXLE ASSY (less diff) (true-trac option only)
1шт.
1
1-1357
ROLLER BEARING,133.35mm ID x 39.69mm W
BEARING CONE
2шт.
2
1-1358
BEARING CUP,190.5mm OD x 33.34mm W
2шт.
3
1-1394
THRUST WASHER
THRUST WASHER
2шт.
4
1-1355
BUTTON
THRUST WASHER
2шт.
5
1-1356
STRIP
LOCKING TAB
6шт.
6
1-1360
CLIP,ELECTRICAL
RETAINING CLIP
6шт.
7
1-1361
WASHER
2шт.
8
1-1393
BALL
STEEL BALL
6шт.
9
90-3839T1
SEAL
(01-1351)
2шт.
Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.
1шт.
11
1-1349
NUT
2шт.
12
1-1363
LOCK WASHER
WASHER
2шт.
Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.
1шт.
90-4378T1
LOCK WASHER
2шт.
Wire harness connector kit P/N 20-1839T1 is available for field replacement of the engine wire harness end where it connects to the main cab wire harness at the firewall. The kit contains all necessary connectors and terminals for the replacement.
1шт.
No S/N available (approx 4-1-83)
1шт.
13
1-1359
BREATHER
VENT
1шт.
14
1-1354
ROLLER BEARING,0.375" OD x 1.46"
288шт.
15
90-1820T1
AXLE SHAFT
2шт.
1-1403
SHAFT
AXLE SHAFT (true-trac option only)
2шт.
16
1-1400
RING
GEAR
2шт.
17
90-3841T1
STEERING KNUCKLE
SPINDLE (90-1826T1)
2шт.
Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.
1шт.
Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.
1шт.
90-3841T2
STEERING KNUCKLE
SPINDLE
2шт.
Wire harness connector kit P/N 20-1839T1 is available for field replacement of the engine wire harness end where it connects to the main cab wire harness at the firewall. The kit contains all necessary connectors and terminals for the replacement.
1шт.
No S/N available (approx 4-1-83)
1шт.
18
2-1098
DIFF HOUSING
1шт.
19
1-1406
CARRIER
PLANET CARRIER
2шт.
20
1-1402
RING
GEAR HUB
2шт.
21
90-1825T2
HUB
WHEEL HUB
2шт.
2-1097
HUB
WHEEL HUB (true-trac option only)
2шт.
22
1-1399
PINION
PLANET GEAR
6шт.
23
1-1353
PIN
Planet gear
6шт.
24
1-1398
OIL SEAL
SNAP RING
6шт.
25
1-1350
PLUG
EXPANSION PLUG
6шт.
26
1-3093
LARGE PLATE
THRUST PLATE
12шт.
27
1-1396
SPACER
6шт.
28
1-1395
O-RING,3.484" ID x 3.762" OD x 0.139"
(qty 4 with spindle P/N 90-1826T1)
2шт.
29
454862
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
CAPSCREW
12шт.
30
271562
SHIELD,Hex, 5/8" - 11 x 2", Gr 5
CAPSCREW
64шт.
31
19-1920
SCREW,Flg, 3/4" - 10 x 2 1/4", Gr 8
12 PT SOCKET HEAD CAPSCREW
24шт.
32
31-531
PLUG
4шт.
33
1-1352
RING
PILOT RING (used with spindle P/N 02-1096 only)
2шт.
34
16-755
ROLLER BEARING,5.25" ID x 1.8125"
BEARING CONE
2шт.
1-1357
ROLLER BEARING,133.35mm ID x 39.69mm W
BEARING CONE (true-trac option only)
1шт.
35
16-1206
BEARING
CUP
2шт.
1-1358
BEARING CUP,190.5mm OD x 33.34mm W
(true-trac option only)
2шт.
36
DIFF ASSY (see fig. 4-42)
1шт.
Standard S-40 diff
1шт.
DIFF ASSY (see fig. 4-60)
1шт.
Optional true-trac diff
1шт.
DIFF ASSY (see fig. 4-59)
1шт.
Optional no-spin diff
1шт.
DIFF ASSY (see fig. 4-44)
1шт.
Optional controlled traction diff
1шт.
No S/N available (approx 4-1-83)
1шт.
37
19-817
SCREW,Hex, 5/8"-11 x 2", G8
CAPSCREW
8шт.
19-840
BOLT,1/2" - 13 x 2 1/2", Gr 5
CAPSCREW
4шт.
38
223470
BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8
LUG BOLT
20шт.
39
19-2975
WASHER
20шт.
40
19-5739
WASHER
8шт.
41
19-1121
BOLT,Hex, 1" - 8 x 10", Gr 8
AXLE BOLT
8шт.
42
19-859
LOCK NUT
8шт.
