Запчасти Case IH KP-1360 (04-37) - TRANSMISSION LUBE PUMP ASSEMBLY (04) - Drive Train

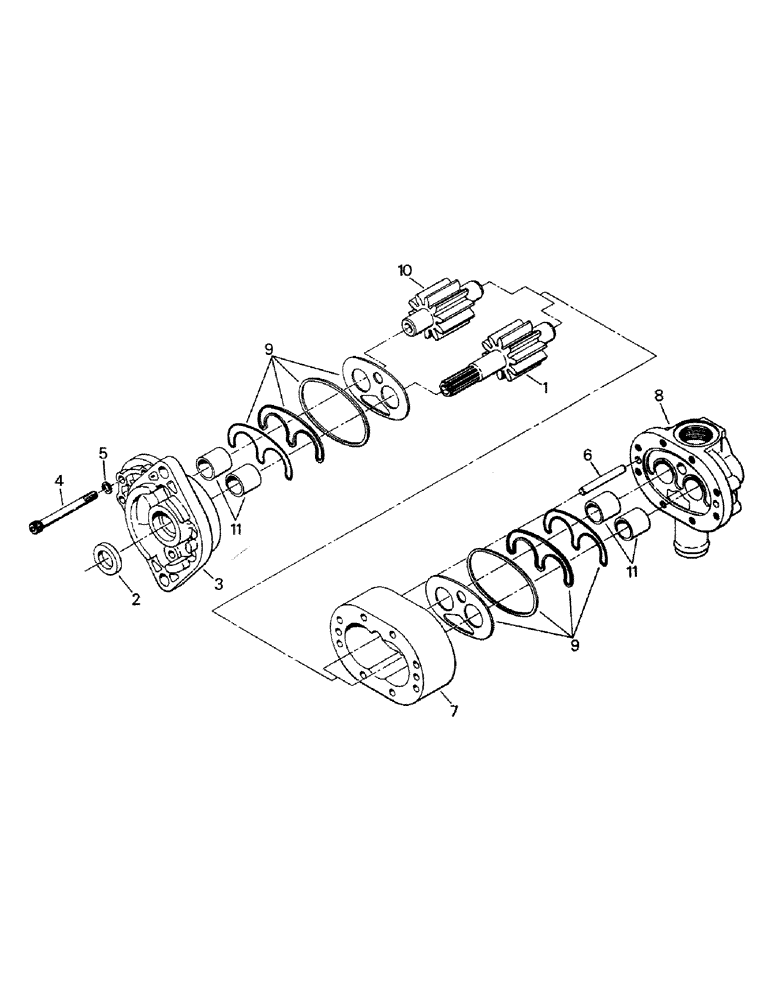

Схема запчастей Case IH KP-1360 - (04-37) - TRANSMISSION LUBE PUMP ASSEMBLY (04) - Drive Train
2
3
11
11
1
9
7
8
10
5
6
9
4

Артикул

Название

Примечание

Количество

90-3249T91

PUMP

TRANS LUBE PUMP ASSY, consists of ref. 1 to 1, Serial Range: 1-11

1шт.

1

90-3337T1

GEAR SHAFT

TRANS LUBE PUMP ASSY

1шт.

2

1-9975

OIL SEAL

SEAL (incl in ref. 9 or sold separately)

1шт.

3

90-3332T91

VALVE BODY

BODY (incl ref. 11)

1шт.

4

19-1057

HEX SOC SCREW,3/8" - 16 x 3 1/2"

SOCKET HEAD CAPSCREW

8шт.

5

1-9979

WASHER

8шт.

6

90-3334T1

DOWEL

2шт.

7

90-3333T1

PLATE

GEAR PLATE

1шт.

8

1-9542

COVER ASSY

COVER (incl ref. 11)

1шт.

9

18-1668

KIT

MINOR REPAIR KIT

1шт.

10

90-3338T1

GEAR

IDLER SHAFT & GEAR

1шт.

11

1-9713

NEEDLE BEARING

SLEEVE BEARING

4шт.

Выбрано товаров: 12
