Запчасти Case IH KP-1360 (04-36) - TRANSMISSION REGULATOR VALVE ASSEMBLY (04) - Drive Train

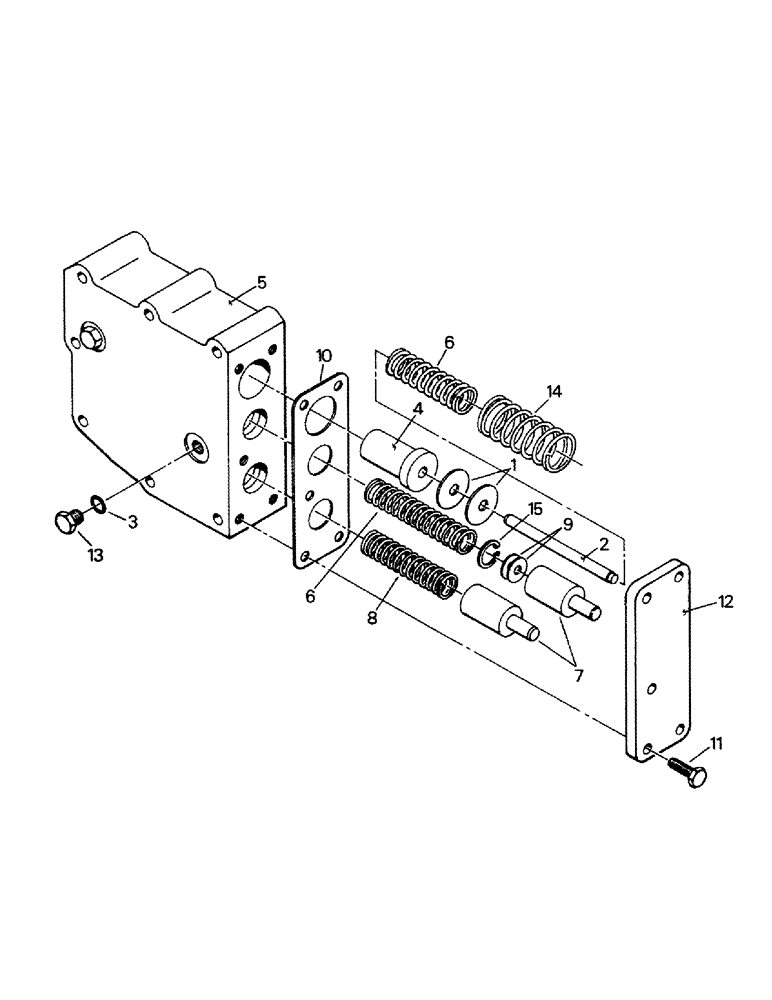

Схема запчастей Case IH KP-1360 - (04-36) - TRANSMISSION REGULATOR VALVE ASSEMBLY (04) - Drive Train
9
8
7
1
3
6
14
10
6
15
5
13
2
4
11
12

Артикул

Название

Примечание

Количество

90-3005T91

VALVE

TRANS REGULATOR VALVE ASSY, consists of ref. 1 to, Serial Range: 1-15

1шт.

1

90-2978T1

SHIM

1шт.

2

90-2979T1

ROD

PRESS. ROD

1шт.

3

90-3304T1

O-RING,0.356" ID x 0.495" OD x 0.075"

included in trans gasket overhaul kit 90-3842T91

2шт.

4

90-3056T1

VALVE

REGULATOR VALVE

1шт.

5

90-3183T1

BODY

REGULATOR VALVE BODY

1шт.

6

90-3016T1

SPRING

2шт.

7

90-3057T1

VALVE

LUBE VALVE

2шт.

8

90-3024T1

SPRING

1шт.

9

90-2980T1

SHIM

1шт.

10

90-3282T1

GASKET

COVER GASKET

1шт.

11

9417950

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

CAPSCREW

5шт.

12

90-3074T1

COVER

VALVE BODY COVER

1шт.

13

9410356

PLUG

2шт.

14

90-3015T1

SPRING

1шт.

15

19-5836

OIL SEAL

SNAP RING

1шт.

Выбрано товаров: 16
