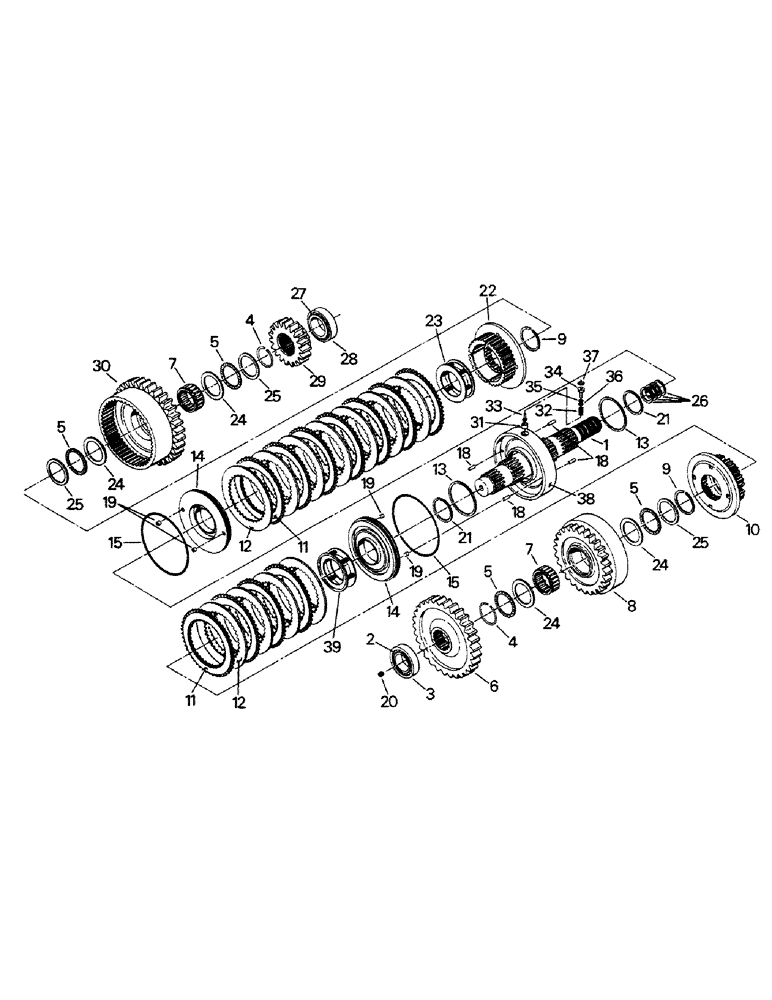

Запчасти Case IH KP-1360 (04-34) - 9" CLUTCH PACK ASSEMBLY (04) - Drive Train

90-3003T92

CLUTCH PACK

9" CLUTCH PACK ASSY (90-3033T91), consists of ref. nos. 1-39

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

90-3321T92

SHAFT

CLUTCH SHAFT ASSY (incl refs. 16-18, 20 & 38) (90-3321T1)

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

65-29

BEARING

CONE

1шт.

3

65-40

CUP

BEARING CUP

1шт.

4

90-3288T1

RING, SNAP

SNAP RING

2шт.

5

90-3272T1

THRUST BEARING,3.007" ID x 3.74" OD x 0.0781"

4шт.

6

90-3128T1

GEAR

DRIVER GEAR

1шт.

7

90-3224T1

NEEDLE BEARING,3" ID x 3.3769" OD x 1.235"

ROLLER BEARING

2шт.

8

90-3240T1

GEAR

& RING ASSY

1шт.

9

90-3287T1

RING, SNAP

SNAP RING

2шт.

10

90-3170T1

HUB

CLUTCH HUB

1шт.

11

90-3041T1

LARGE PLATE

FACED PLATE

12шт.

12

90-3040T1

LARGE PLATE

STEEL PLATE (flat)

12шт.

13

90-3212T1

OIL SEAL

PISTON RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

14

90-3318T91

PISTON

CLUTCH PISTON ASSY (incl ref. 19)

2шт.

15

90-3317T1

OIL SEAL

SEALING RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

16

NSS

NOT SOLD SEPARAT

DOWEL PIN (not shown) (see ref. 1)

1шт.

17

NSS

NOT SOLD SEPARAT

SNAP RING (not shown) (see ref. 1)

2шт.

18

90-3295T1

DOWEL

PIN (see ref. 1)

4шт.

19

90-3100T1

SLEEVE

PISTON SLEEVE

4шт.

20

90-3219T1

PLUG

ORIFICED PLUG (see ref. 1)

1шт.

21

90-3211T1

OIL SEAL

PISTON RING

2шт.

22

90-3084T1

HUB

CLUTCH HUB

1шт.

23

90-3320T91

RETAINER

SPRING RETAINER ASSY

1шт.

24

90-3026T1

THRUST WASHER

THRUST WASHER

4шт.

25

90-3025T1

WASHER

THRUST WASHER

3шт.

26

90-3273T1

SEALING RING

SEALING RING

4шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

27

1-1583

ROLLER BEARING,2.625" ID x 1.1875"

BEARING CONE

1шт.

28

1-1584

BEARING CUP,4.4375" OD x 1.1875"

1шт.

29

90-3146T1

GEAR

DRIVER GEAR

1шт.

30

90-3241T1

GEAR

& RING ASSY

1шт.

90-2977T1

VALVE

DUMP VALVE KIT, consists of ref. nos. 31-36

2шт.

31

NSS

NOT SOLD SEPARAT

FEEDBACK VALVE

2шт.

32

NSS

NOT SOLD SEPARAT

DUMP VALVE SPRING

2шт.

33

NSS

NOT SOLD SEPARAT

DUMP VALVE STEM

2шт.

34

NSS

NOT SOLD SEPARAT

DUMP VALVE SLEEVE

2шт.

35

NSS

NOT SOLD SEPARAT

SHIM

1шт.

36

NSS

NOT SOLD SEPARAT

SHIM

1шт.

37

19-5823

RING

SNAP RING

2шт.

38

NSS

NOT SOLD SEPARAT

PISTON HOUSING ASSY (see ref. 1)

1шт.

39

90-3235T91

RETAINER

SPRING RETAINER ASSY

1шт.

90-3842T91

GASKET KIT

OVERHAUL KIT trans gasket, consists in ref. 13, 15 and 26

1шт.
