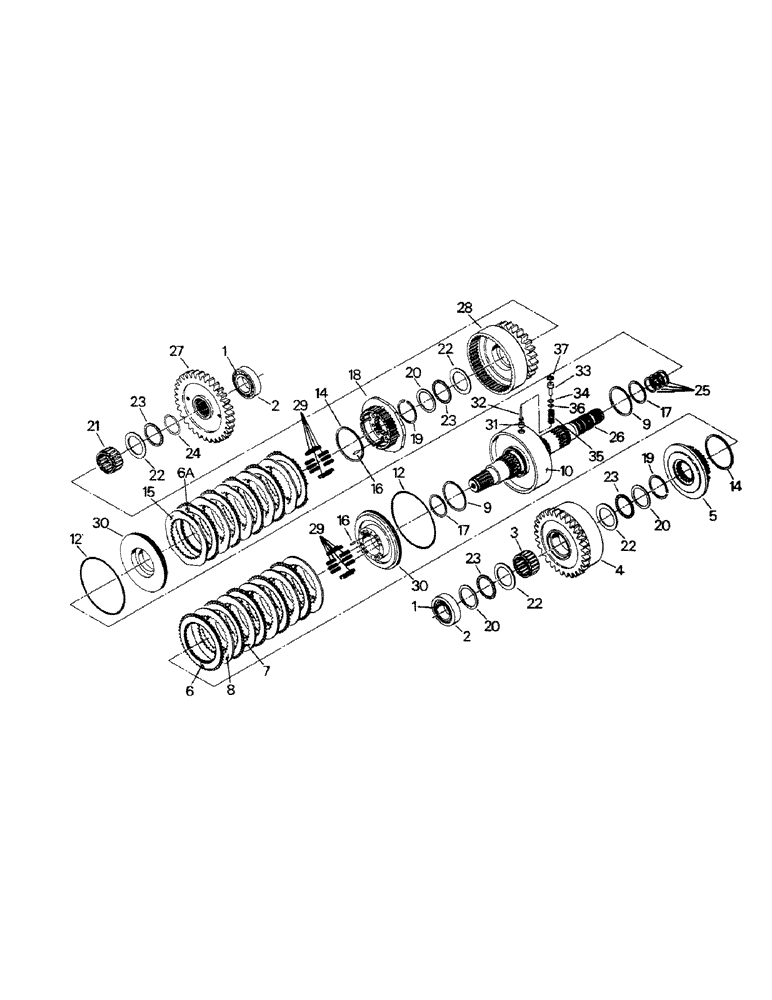

Запчасти Case IH KP-1360 (04-31) - 7" CLUTCH PACK ASSEMBLY, INPUT SHAFT (04) - Drive Train

90-3000T91

CLUTCH PACK

7" CLUTCH PACK ASSY (input), consists ref. nos. 1-38

1шт.

1

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

BEARING CONE

2шт.

2

1-3296

BEARING CUP,3.7402" OD x 0.9252"

BEARING CONE

2шт.

3

90-3223T1

NEEDLE BEARING,2.5" ID x 2.8767" OD x 1"

ROLLER BEARING

1шт.

4

90-3238T1

OIL SEAL

GEAR & DRIVE ASSY

1шт.

5

90-3167T1

HUB

CLUTCH HUB

1шт.

6

90-3047T1

LARGE PLATE

FACED PLATE, qty 5 on early models, used before S/N 2660, Serial Range: -2660

10шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

6a

90-3329T1

PLATE

FACED PLATE, P/N 30-3047T1 replaces P/N 90-3329T1 under a code B suppression, however existing inventory of P/N 90-3329T1 may be used up but only in the location shown on the illustration, used after S/N 2659 (approx 4-4-83), Start Serial: 2659

2шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

7

90-3048T1

LARGE PLATE

STEEL PLATE (coned)

2шт.

8

90-3049T1

LARGE PLATE

STEEL PLATE (flat)

3шт.

9

90-3215T1

OIL SEAL

PISTON RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON HOUSING ASSY (see ref. 26)

1шт.

11

NSS

NOT SOLD SEPARAT

DOWEL PIN (not shown) (see ref. 26)

1шт.

12

90-3316T1

SEALING RING

SEALING RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING (not shown) (see ref. 26)

2шт.

14

90-3216T1

OIL SEAL

PISTON RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

15

90-3050T1

LARGE PLATE

STEEL PLATE (flat)

5шт.

16

454512

SHIM

3/16" x 3/4", Slotted, on later models these pins will now be located inside the return springs, the P/N will change to 455598 and the qty. will be 24.

4шт.

17

90-3213T1

OIL SEAL

PISTON RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

18

90-3168T1

HUB

CLUTCH HUB

1шт.

19

90-3293T1

RING, SNAP

SNAP RING

2шт.

20

90-3027T1

WASHER

THRUST WASHER

3шт.

21

90-3226T1

BEARING CUP,2.5" ID x 2.8767" OD x 1.5"

ROLLER BEARING

1шт.

22

90-3028T1

WASHER

THRUSH BEARING

4шт.

23

90-3227T1

THRUST BEARING,2.507" ID x 3.24" OD x 0.781"

THRUST BEARING

4шт.

24

90-3296T1

OIL SEAL

SNAP RING

1шт.

25

90-3273T1

SEALING RING

SEALING RING

4шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

26

90-3257T1

SHAFT ASSY.

CLUTCH SHAFT ASSY (refs. 10, 11, 13 & 38)

1шт.

27

90-3142T1

GEAR

INPUT DRIVER GEAR

1шт.

28

90-3243T1

GEAR

& DRIVER ASSY

1шт.

29

90-3013T1

SPRING

RETURN SPRING

24шт.

30

90-3258T1

PISTON

CLUTCH PISTON

2шт.

90-2977T1

VALVE

DUMP VALVE KIT, consists of ref. nos. 31-36

2шт.

31

NSS

NOT SOLD SEPARAT

FEEDBACK VALVE

2шт.

32

NSS

NOT SOLD SEPARAT

DUMP VALVE STEM

2шт.

33

NSS

NOT SOLD SEPARAT

DUMP VALVE SLEEVE

2шт.

34

NSS

NOT SOLD SEPARAT

SHIM

1шт.

35

A49183

OIL SEAL

DUMP VALVE SPRING

2шт.

36

NSS

NOT SOLD SEPARAT

SHIM

1шт.

37

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, 0.875", Int, #87

2шт.

38

NSS

NOT SOLD SEPARAT

DUMP VALVE SEAT (not shown) (see ref. 26)

2шт.

90-3842T91

GASKET KIT

OVERHAUL KIT trans gasket, consists of ref. 9, 12, 14, 17 and 25

1шт.
