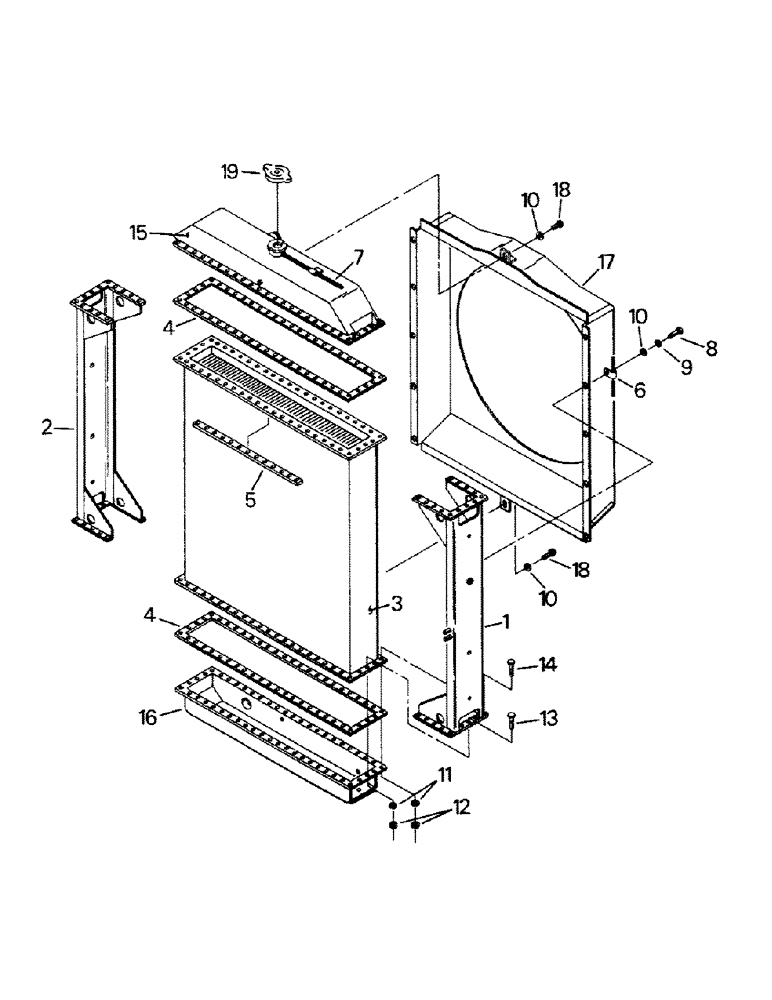

Запчасти Case IH KP-1360 (04-21) - RADIATOR ASSEMBLY (04) - Drive Train

90-1713T92

RADIATOR

ASSY (Cat 3406 engine - 325 HP) (90-1713T91 - code C) consists of ref. 1 to, Serial Range: 1-19

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

90-3516T92

RADIATOR

ASSY (Cummins 855 engine - 325 HP) (90-3516T91 - code C)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

90-1054T92

RADIATOR

ASSY (Cat 3406 engine - 360 & 400 HP) (90-1054T91 - code C)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

90-3517T92

RADIATOR

ASSY (Cummins 855 engine - 360 & 400 HP) (90-3517T91 - code C)

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

1

90-1518T2

FRAME

RADIATOR FRAME, left, Replaces 90-1518T1, but the mounting hardware for the oil cooler and condenser pivot mount must be changed per note on Figure 03-09, consists of Ref. 1 - 19

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

2

90-1517T2

FRAME

RADIATOR FRAME, right, Replaces 90-1517T1, but the mounting hardware for the oil cooler and condenser pivot mount must be changed per note on Figure 03-09

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

3

90-2359T1

CORE

3" thick, 325 HP engine

1шт.

90-1534T1

CORE

4-1/2" thick, 360 and 400 HP engines

1шт.

4

90-1529T1

GASKET

HEADER GASKET

2шт.

5

90-1530T1

BAR

HEADER BAR

4шт.

6

31-2173

CLIP

CLAMP

2шт.

7

31-1260

HOSE,0.25" ID x 57.00"

1шт.

8

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

TAPPING SCREW

10шт.

9

19-115

LOCK WASHER,1/4"

1/4"

10шт.

10

19-223

WASHER,1/4"

12шт.

11

19-116

LOCK WASHER,5/16"

5/16"

108шт.

12

19-77

NUT,5/16"-18, G5

108шт.

13

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW

100шт.

14

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW

8шт.

15

90-1531T2

TANK

TOP TANK, Replaces 90-1531T1

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

16

90-1532T1

TANK

BOTTOM TANK

1шт.

17

90-1522T2

SHROUD

SHOURD, 34", Cat 3406 engine, Replaces 90-1522T1

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

90-3514T2

SHROUD

32", Cummins 855 engine, Replaces 90-3514T1

1шт.

Superseded - old P/N can be used up on all models prior to S/N break only. New P/N must be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

The change to this Ref. occurred with the introduction of the tilt up hood, after S/N 2797

1шт.

18

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

CAPSCREW

2шт.

19

10-21

CAP

RADIATOR CAP

1шт.

20

1-1055

SEALANT

RTV SEALANT (not shown)

1шт.
