Запчасти Case IH KP-1360 (04-18) - RADIATOR MOUNTING, LATER STYLE (04) - Drive Train

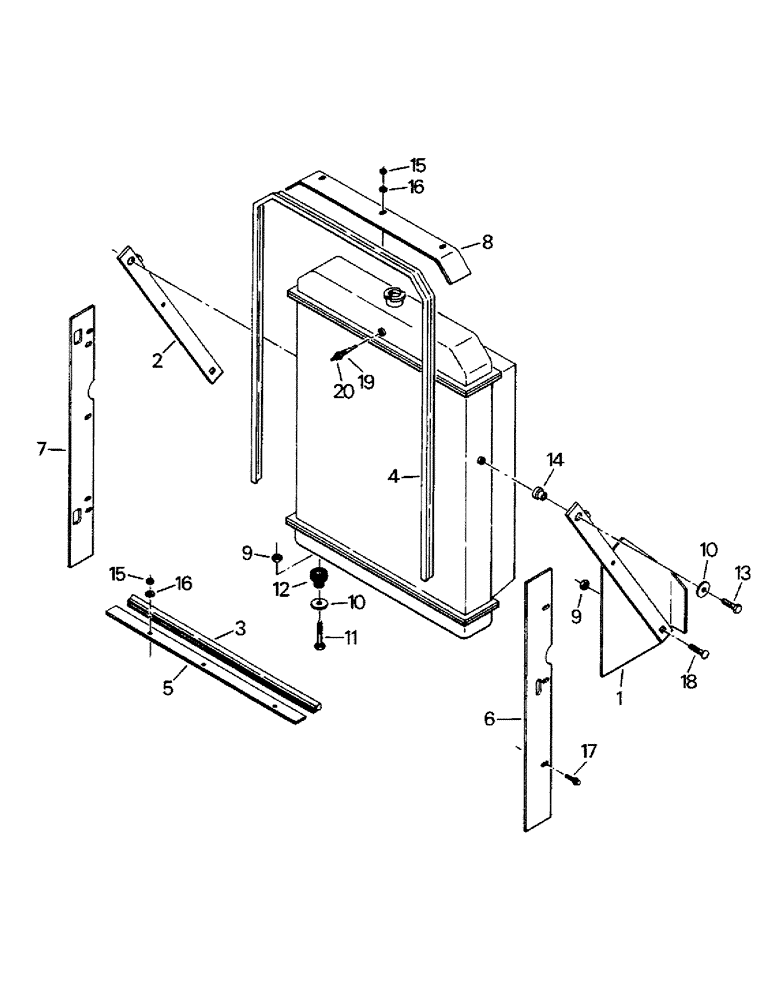

Схема запчастей Case IH KP-1360 - (04-18) - RADIATOR MOUNTING, LATER STYLE (04) - Drive Train
7
14
6
5
15
20
10
18
17
3
8
9
9
12
19
15
2
11
10
13
1
4
16
16

Артикул

Название

Примечание

Количество

1

70-2825T1

SUPPORT

RADIATOR SUPPORT (left)

1шт.

2

70-2823T1

SUPPORT

RADIATOR SUPPORT (right)

1шт.

3

90-2896T1

SEAL

1шт.

4

70-2821T1

SEAL

1шт.

5

90-3534T1

PLATE

1шт.

6

70-2818T1

STRIP

(left)

1шт.

7

70-2819T1

STRIP

(right)

1шт.

8

70-2820T1

STRIP

1шт.

9

19-82

LOCK NUT

LOCK NUT

4шт.

10

19-806

WASHER

4шт.

11

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW

2шт.

12

47-4208

RUBBER BUSHING

CAPSCREW

2шт.

13

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW

2шт.

14

18-511

MOUNTING PARTS

CENTER MOUNT

2шт.

15

19-77

NUT,5/16"-18, G5

6шт.

16

19-700

WASHER,5/16"

6шт.

17

9416625

SCREW

TAPPING SCREW

6шт.

18

120917

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

19

20-1248T1

SENSOR

PROBE

1шт.

20

19-481

SERRATED NUT

KEP NUT

1шт.

Выбрано товаров: 20
