Запчасти Case IH KP-1360 (04-07) - ENGINE BLOCK HEATER (04) - Drive Train

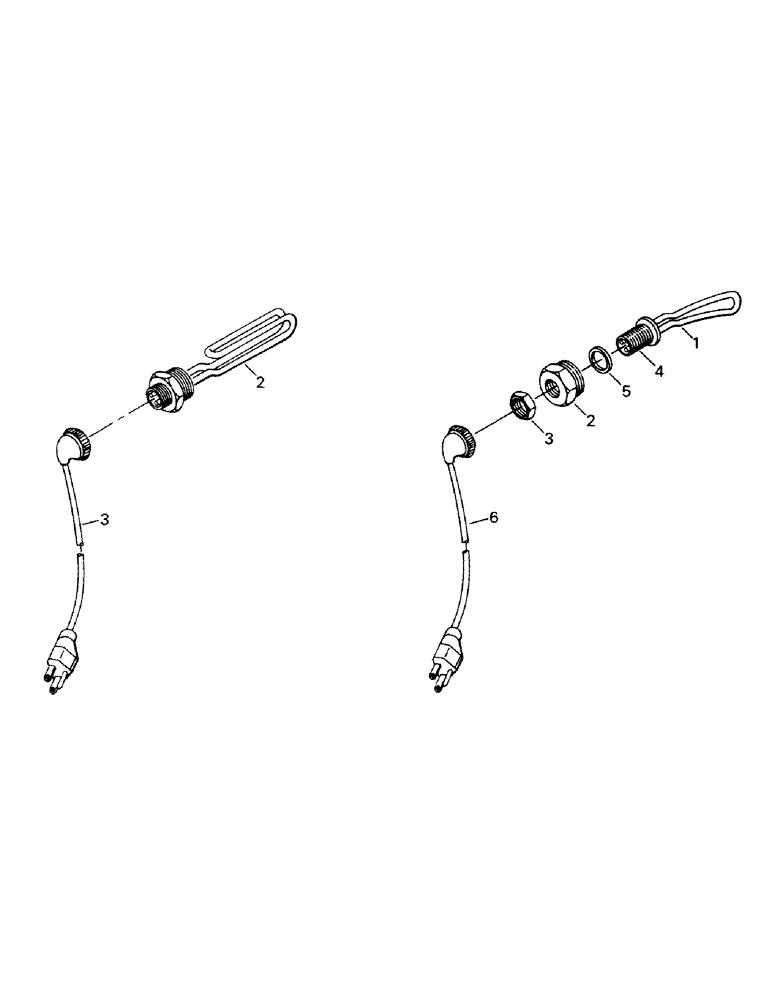

Схема запчастей Case IH KP-1360 - (04-07) - ENGINE BLOCK HEATER (04) - Drive Train
3
6
4
3
5
2
1
2

Артикул

Название

Примечание

Количество

35-1092

HEATER

ENGINE BLOCK HEATER KIT (Cat 3406 engine), consists of ref. nos. 1-3

1шт.

1

1-5614

INSTRUCTION

INSTALLATION DRAWING

1шт.

1-5645

HEATER

ENGINE BLOCK DRAWING, consists of ref. nos. 2-3

1шт.

2

1-5613

ELEMENT

1шт.

3

1-5604

ROPE

HEATER CORD

1шт.

90-3490T91

HEATER

ENGINE BLOCK HEATER (Cummins 855 engine), consists of, Serial Range: 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

2

NSS

NOT SOLD SEPARAT

REDUCER

1шт.

3

NSS

NOT SOLD SEPARAT

NUT

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET

1шт.

6

90-3491T1

CABLE

HEATER CORD

1шт.

7

19-464

CABLE TIE

TY RAP (not shown)

1шт.

Выбрано товаров: 13
