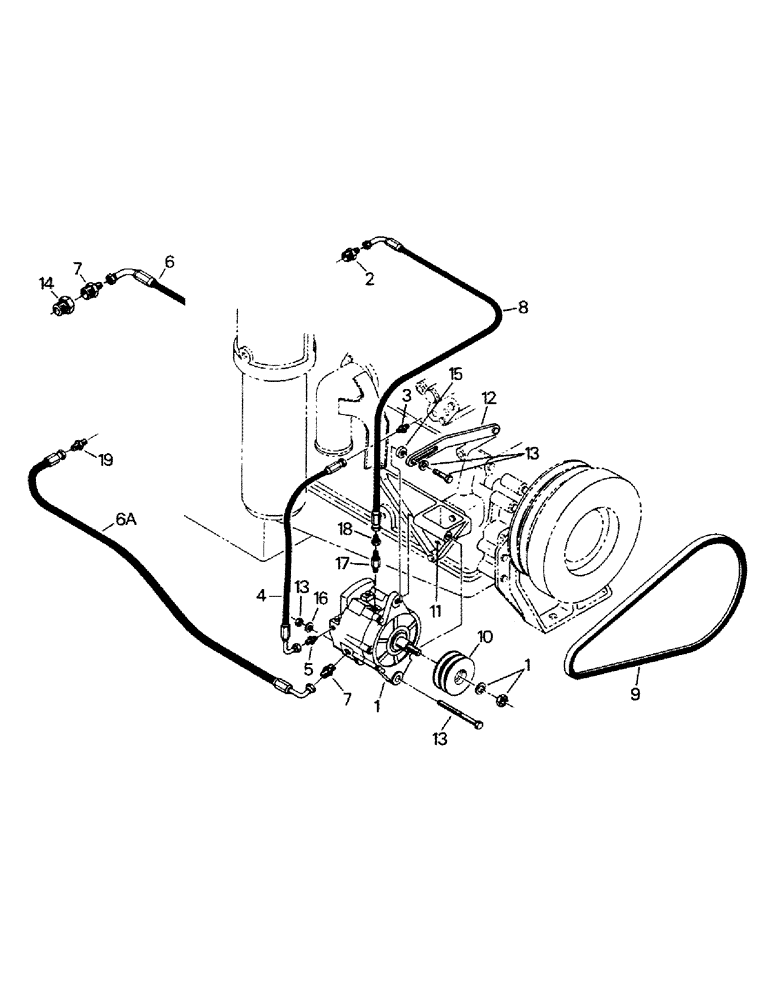

Запчасти Case IH KP-1360 (04-05) - ALTERNATOR AND MOUNTING, CUMMINS 855 ENGINE (04) - Drive Train

1

ALT ASSY (see figure 2-6)

1шт.

2

31-2229

FITTING

1шт.

3

31-2207

HYD CONNECTOR,1/2"-20, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

4

31-2203

HOSE

1шт.

5

31-2204

ADAPTER,1/2"-20, 37 Degree x 1/8"-27, NPTF

FITTING

1шт.

6

31-2051

HOSE (early models only)

1шт.

6a

31-2249

HOSE

(later models)

1шт.

7

31-411

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-14, NPTF

FITTING (qty 2 on early models)

1шт.

8

31-2227

HOSE

1шт.

9

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator (Set of 2) 0.53" W x 45.92" L

1шт.

10

22-741

PULLEY

ALT PULLEY

1шт.

11

NAP

ALT MOUNT (Cummins part)

1шт.

12

NAP

ADJUSTING BRACKET (Cummins part)

1шт.

13

NAP

MISC MOUNTING HARDWARE (Cummins parts)

1шт.

14

31-405

REDUCER (early models only) 1 1/2"-11 1/2 Male NPTF x 3/4"-14 Female NPTF

1шт.

15

1-7145

SPACER

BUSHING

1шт.

16

19-5801

WASHER

1шт.

17

50-2094T91

VALVE

CHECK VALVE (see fig. note)

1шт.

18

21-2276

FITTING (see fig. note)

1шт.

19

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

FITTING

1шт.
