Запчасти Case IH KP-1360 (04-02) - ENGINE AND ATTACHING PARTS, CUMMINS 855 ENGINE (04) - Drive Train

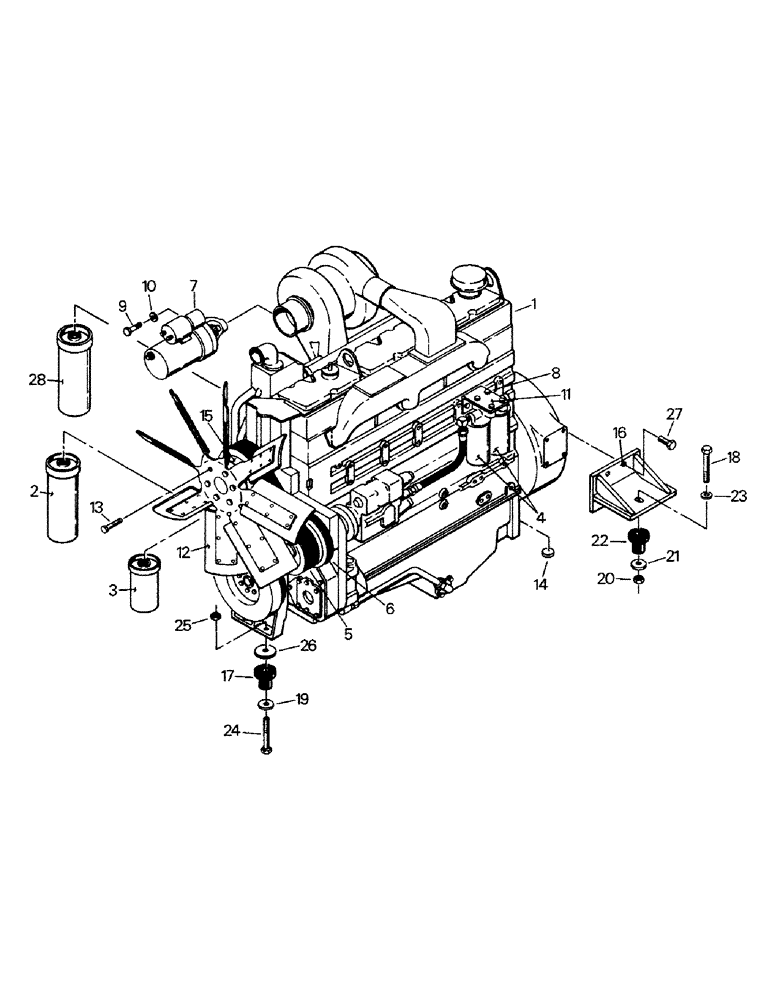

Схема запчастей Case IH KP-1360 - (04-02) - ENGINE AND ATTACHING PARTS, CUMMINS 855 ENGINE (04) - Drive Train
8
11
18
6
10
15
25
24
27
26
3
21
20
23
7
17
22
9
1
2
19
13
16
28
12
5
4
14

Артикул

Название

Примечание

Количество

1

90-2366T1

ENGINE (NTA 855 C - 325 HP)

1шт.

90-2367T1

ENGINE (NTA 855 C - 360 HP)

1шт.

90-2368T1

ENGINE (NTA 855 C - 400 HP)

1шт.

2

1-2187

ENGINE OIL FILTER

OIL FILTER

1шт.

3

28-31

FILTER

WATER FILTER (see fig. note)

1шт.

1-7834

FILTER

WATER FILTER (precharged)

1шт.

4

28-35

FUEL FILTER

2шт.

5

2-4432T1

SET OF BELTS

2, Fan

1шт.

6

90-2383T1

BELT,43.60" L, 6 Ribs

Water Pump 43.60" L, 6 Ribs

1шт.

7

STARTER (see figure 2-4)

1шт.

8

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

9

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

CAPSCREW

3шт.

10

19-912

WASHER

CAPSCREW

3шт.

11

NAP

FUEL FILTER BRACKET (Cummins part)

1шт.

12

6-1597

FAN

1шт.

13

19-942

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 8

CAPSCREW (19-1258 - code E)

6шт.

14

9427697

PLUG

1шт.

15

90-3799T1

SPACER

FAN SPACER (90-1721T1 - code B)

1шт.

16

90-1545T1

MOUNTING PARTS

ENGINE MOUNT (left)

1шт.

90-1546T1

MOUNTING PARTS

ENGINE MOUNT (right)

1шт.

17

24-231

RUBBER MOUNTING

RUBBER MOUNT

2шт.

18

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

CAPSCREW

2шт.

19

19-408

WASHER

2шт.

20

19-85

LOCK NUT

LOCK NUT

2шт.

21

19-112

WASHER,3/4"

2шт.

22

47-4172

SHOCK ABSORBER

RUBBER MOUNT

2шт.

23

19-712

WASHER,3/4", SAE

2шт.

24

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW

2шт.

25

19-222

LOCK NUT,5/8" - 11, GB

2шт.

26

51-128

WASHER

2шт.

27

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

CAPSCREW

8шт.

28

90-1158T1

ENGINE OIL FILTER

LUBE FILTER

1шт.

Выбрано товаров: 32
