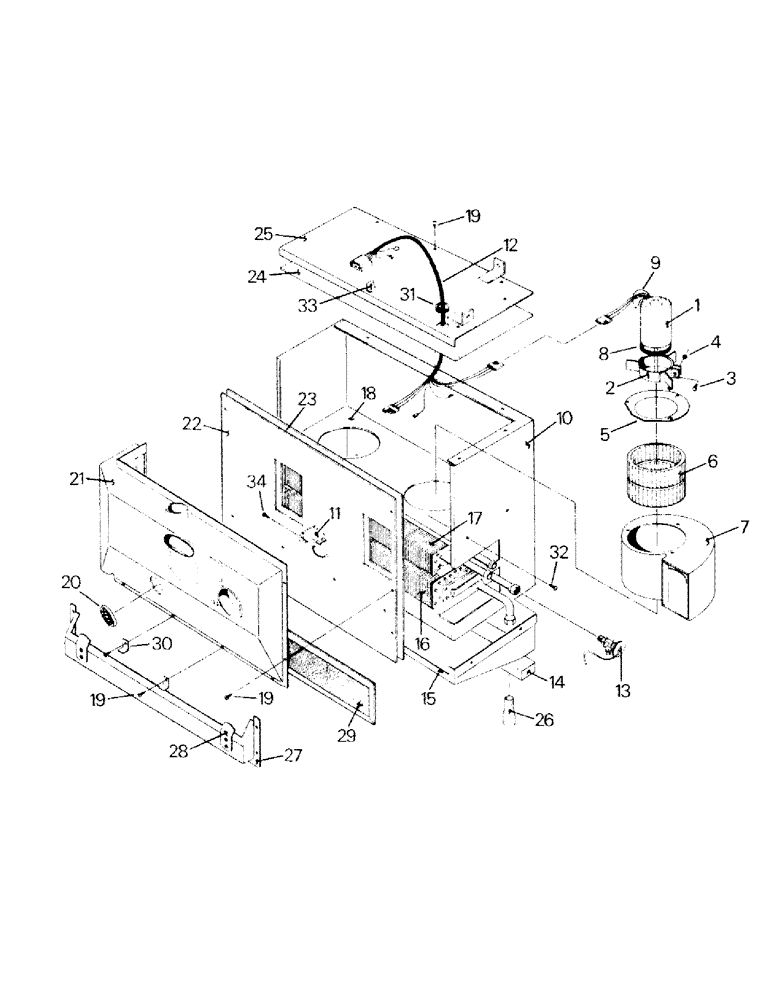

Запчасти Case IH KM-360 (03-03) - A/C AND HEATER MODULE ASSEMBLY, EARLY STYLE* (03) - Climate Control

2-3719T91

CONTROL

Module Assy, consists of Ref. 1-34

1шт.

2-1373

MOTOR

Assy, consists of Ref. 1-9

2шт.

1

1-4005T1

MOTOR

1шт.

2

25-1049

BRACKET

1шт.

3

19-159

SCREW,Sl Rnd Hd, #10 - 24 x 3/4", Gr 2

Machine Screw

1шт.

4

19-1038

NUT

Kep Nut

2шт.

5

25-1047

OIL SEAL

Blower Inlet Ring

1шт.

6

25-1046

BLOWER

Wheel

1шт.

7

25-1045

HOUSING

Blower Housing

1шт.

8

25-1050

GASKET

1шт.

9

25-1048

ELECTRICAL WIRE

Ground Wire

1шт.

10

1-8083

CURTAIN

Wrapper Assy

1шт.

11

25-1039

THERMOSTAT

1шт.

12

20-1242T1

HARNESS

Wire Harness

1шт.

13

1-7844

VALVE

Expansion Valve

1шт.

14

25-1059

PAD

1шт.

15

1-8087

PAN

Drip Pan

1шт.

16

1-7842

COIL

Evaporator Coil

1шт.

17

1-7843

HEATER ASSY.

Heater Core

1шт.

18

25-1043

PLATE

Blower Mounting Plate

1шт.

19

19-1033

SCREW,#8 x 3/8"

Tapping Screw

28шт.

20

25-1071

GUARD

Louver Assy

1шт.

21

25-1057

TRANSMISSION

Transition Assy

1шт.

22

1-8386

PANEL

1шт.

23

25-1054

INSULATOR

Insulation

1шт.

24

25-1056

INSULATOR

Insulation

1шт.

25

25-1055

COVER

Assy

1шт.

26

25-1060

Drain Tube 1" ID, 1.06" OD, 3" Length

2шт.

27

1-2066

TRANSMISSION

Filter Transition Assy

1шт.

28

1-2068

CLAMP

2шт.

29

1-2065

FILTER

(with Foam Seal)

1шт.

30

1-2067

CLIP

2шт.

31

31-1008

GROMMET

1шт.

32

9418047

SCREW,#12 - 12 x 1/2", Gr 2

Tapping Screw

4шт.

33

2-1374

CLIP

1шт.

34

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

Tapping Screw

2шт.

35

1-1701

CLOTHES

Filter Coating (can not shown)

1шт.
