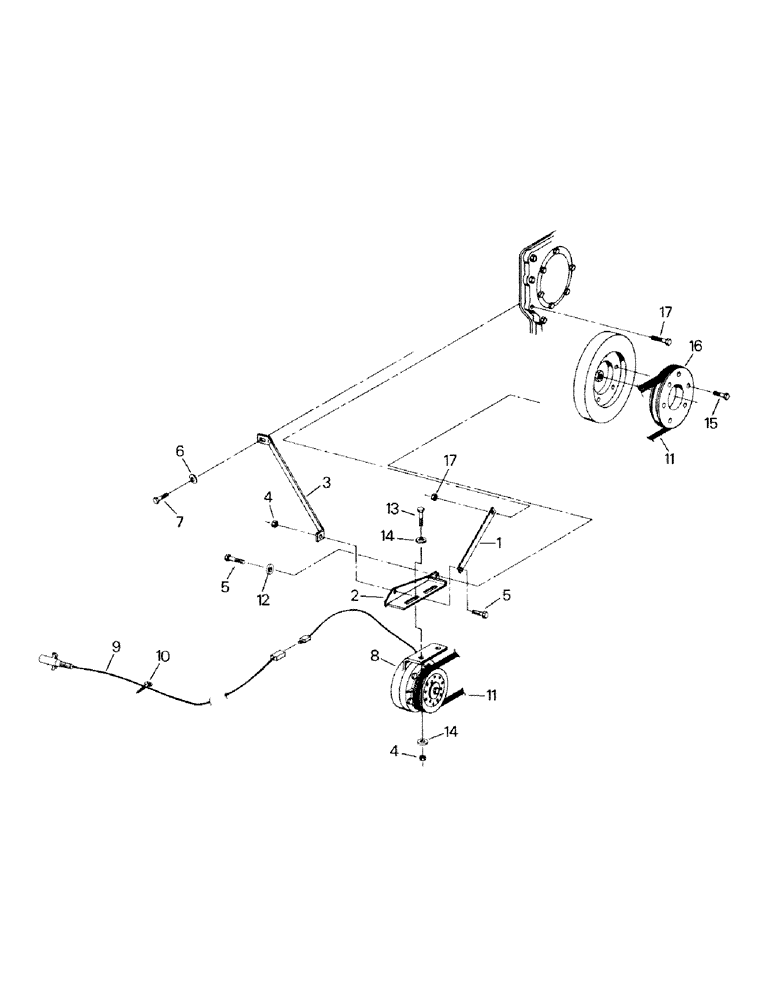

Запчасти Case IH KM-360 (10-12) - SPRAYER PUMP AND ATTACHING PARTS, CAT 3306 ENGINE Options & Miscellaneous

35-1238T91

KIT

Sprayer Pump Kit, consists of Ref. 1-16

1шт.

1

1-2971

BRACE

1шт.

2

1-9277

Mount

1шт.

3

1-2970

BRACE

1шт.

4

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

5

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

Capscrew

3шт.

6

19-111

WASHER,5/8"

1шт.

7

19-759

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Capscrew

1шт.

8

Sprayer Pump Assy (Fig. 10-15)

1шт.

9

1-2908

ELECTRICAL WIRE

Wire

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

2шт.

11

90-3513T1

V-BELT,0.53" W x 48.00" L

0.53" W x 48.00" L

1шт.

12

19-117

LOCK WASHER,3/8"

3/8"

2шт.

13

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

2шт.

14

19-107

WASHER

4шт.

15

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

6шт.

16

1-9280

Pulley

1шт.

17

NAP

Capscrew & Nut (existing engine hardware)

1шт.
