Запчасти Case IH KM-360 (06-07) - DRAWBAR AND MOUNTING, EARLY STYLE, BSN 3913 4/23/84 (12) - FRAME

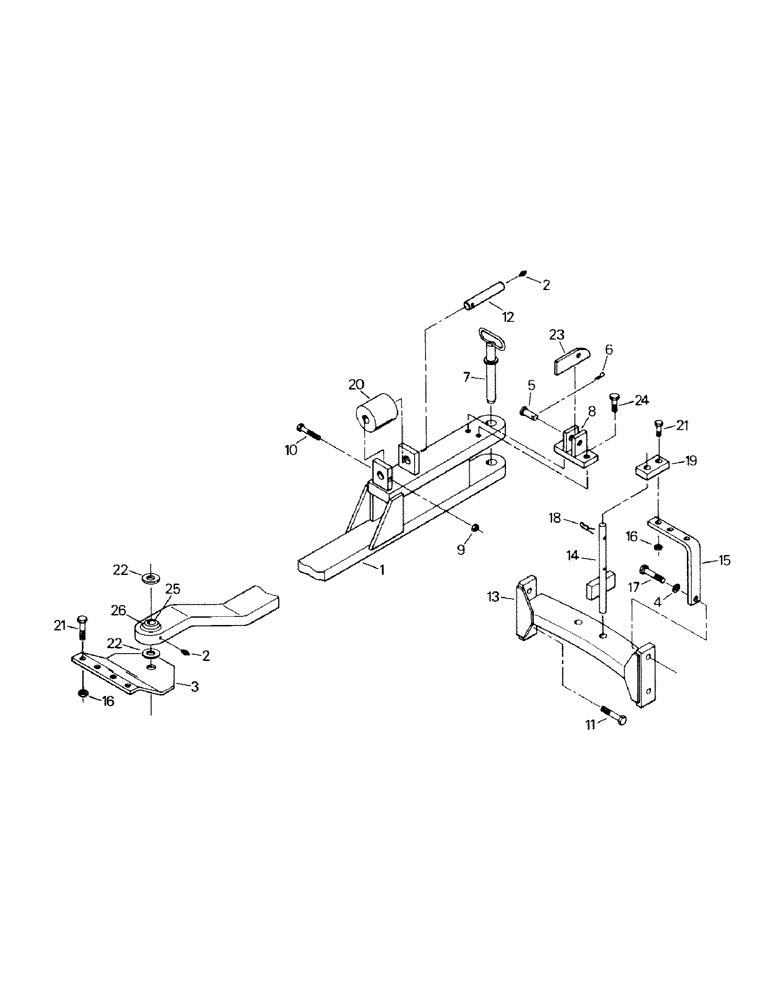

Схема запчастей Case IH KM-360 - (06-07) - DRAWBAR AND MOUNTING, EARLY STYLE, BSN 3913 4/23/84 (12) - FRAME
20
13
25
7
6
23
1
2
8
10
21
22
11
16
24
9
22
19
4
12
17
5
15
14
18
21
2
26
3
16

Артикул

Название

Примечание

Количество

1

1-4905T1

DRAWBAR

(incl Refs. 25 & 26)

1шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

51-25

PLATE

Hing Plate

1шт.

4

19-112

WASHER,3/4"

2шт.

5

42-102

CLEVIS PIN,1/2" x 2.060"

Pin

1шт.

6

19-168

COTTER PIN,1/8" x 1"

1шт.

7

1-4896

PIN

1шт.

8

1-4908

LATCH

Pivot

1шт.

9

19-82

LOCK NUT

Lock Nut

1шт.

10

19-41

BOLT,1/2" - 13 x 4 1/2", Gr 5

Capscrew

1шт.

11

19-394

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Capscrew

2шт.

12

1-4900

PIN

Roller Pin

1шт.

13

40-511

Drawbar Hanger

1шт.

14

53-107

STOP

Drawbar Stop

2шт.

15

53-111

MOUNTING PARTS

Coupler Mount

2шт.

16

19-85

LOCK NUT

Lock Nut

6шт.

17

19-216

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Capscrew

2шт.

18

19-843

Hair Pin

2шт.

19

53-110

LINK

Top Link

2шт.

20

1-4901

ROLLER

1шт.

21

19-63

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

Capscrew

6шт.

22

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

2шт.

23

1-4906

LATCH

1шт.

24

19-59

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

Capscrew

2шт.

25

40-140

BUSHING,44.7mm ID x 82.42mm OD

Uniball

1шт.

26

40-139

HOUSING

Uniball Housing

2шт.

Выбрано товаров: 26
