Запчасти Case IH KM-360 (02-19) - UPPER CAB AND CONSOLE ELECTRICAL (06) - ELECTRICAL

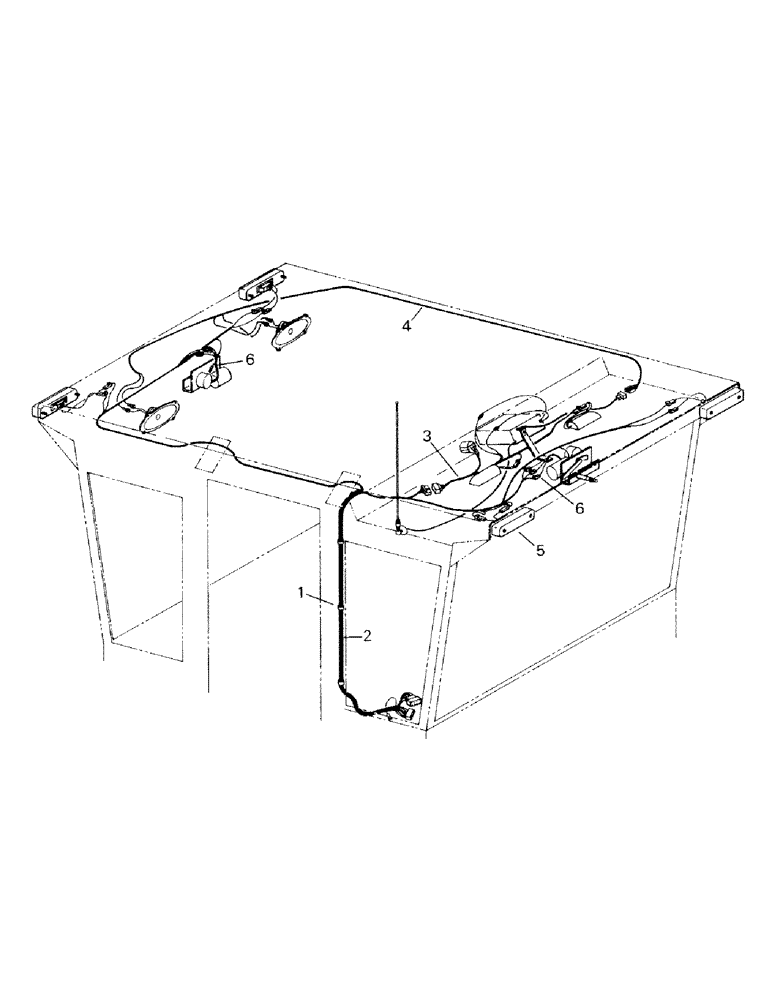

Схема запчастей Case IH KM-360 - (02-19) - UPPER CAB AND CONSOLE ELECTRICAL (06) - ELECTRICAL
5
1
6
3
6
4
2

Артикул

Название

Примечание

Количество

1

22-821

CLIP

Clamp

3шт.

2

1-5970

HARNESS

Upper Cab Wire Harness

1шт.

Two single terminal ends to warning lights.

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

20-1812T1

HARNESS

Upper Cab Wire Harness

1шт.

One double terminal end to warning lights, in effect ASN 3974, 5-1-84

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

3

20-1377T1

HARNESS

Front Console Wire Harness, Serial Range: -3113

1шт.

Superseded, old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

20-1811T1

HARNESS

Front Console Wire Harness, Start Serial: 3113

1шт.

Superseded, old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

4

20-1298T2

HARNESS

Speaker Wire Harness

1шт.

5

Warning Light Assy., see Fig. 02-21)

4шт.

6

20-1203T1

HARNESS

Adapter Wire Harness, used with Wire Harness P/N 01-5970 only

1шт.

20-1452T1

ELECTRICAL WIRE

Ground Wire, use with Wire Harness P/N 20-1812T1 only

1шт.

Выбрано товаров: 15
