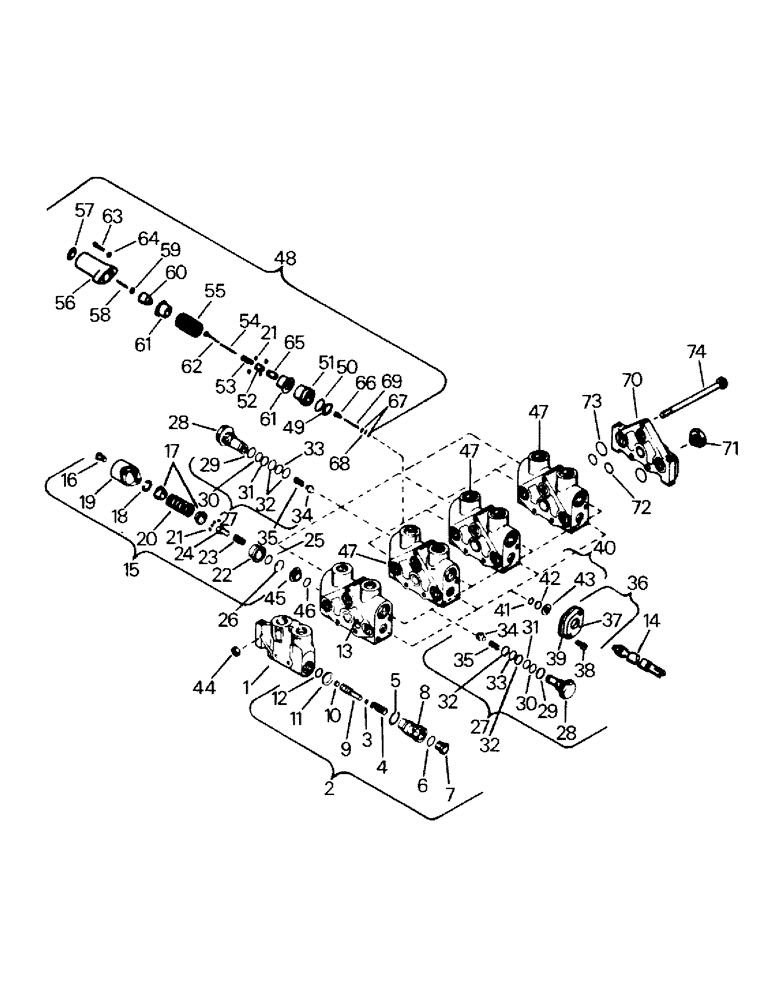

Запчасти Case IH KM-325 (08-20) - CONTROL VALVE ASSEMBLY (07) - HYDRAULICS

50-1398T91

VALVE

Control Valve Assy (3-Spool)

1шт.

50-1396T91

VALVE

Control Valve Assy (4-Spool)

1шт.

50-1397T91

VALVE

Control Valve Assy (5-Spool)

1шт.

1

50-1977T91

PLATE

Cover Plate (Left) (incl Ref. 2)

1шт.

2

50-1978T91

ASSEMBLY

Relief Assy (incl Refs. 3-12)

1шт.

3

18-1509

SHIM

(.010)

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 78)

1шт.

6

NSS

NOT SOLD SEPARAT

O-RIng (incl in Ref. 78)

1шт.

7

NSS

NOT SOLD SEPARAT

Relief Spring Cap

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve Body

1шт.

9

NSS

NOT SOLD SEPARAT

Poppet (incl in Ref. 77)

1шт.

10

NSS

NOT SOLD SEPARAT

Seal (incl in Ref. 77)

1шт.

11

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Ref. 78)

2шт.

12

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 78)

1шт.

13

50-1979T91

HYD VALVE SECTION

Float Section (incl Refs. 14, 15, 27, 36 & 40)

1шт.

14

NSS

NOT SOLD SEPARAT

Spool (see Refs. 13 & 47)

4шт.

15

50-1980T91

CAP ASSY.

Float Positioner Assy (incl Refs. 16-26)

1шт.

16

18-712

SCREW

2шт.

17

18-826

COLLAR ASSY.

Collar

2шт.

18

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Bonnet

1шт.

20

NSS

NOT SOLD SEPARAT

Centering Spring

1шт.

21

NSS

NOT SOLD SEPARAT

Detent Ball

4шт.

22

NSS

NOT SOLD SEPARAT

Detent Sleeve

1шт.

23

NSS

NOT SOLD SEPARAT

Detent Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Detent Ball Follower

1шт.

25

NSS

NOT SOLD SEPARAT

Quad Ring Seal (incl in Ref. 76)

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 76)

1шт.

27

18-876

PLUG

Load Check Plug Assy (incl Refs. 28-35) (see Note)

8шт.

28

NSS

NOT SOLD SEPARAT

Lift Check Plug

8шт.

3-Pt Relief Cartricge P/N 01-5974 replaces the lift check plug in the control valve and is used to limit the down force on the lift cylinders to 500 psi.

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75 & 76)

8шт.

30

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 75 & 76)

8шт.

31

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75, 76 & 79)

8шт.

32

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Refs. 75, 76 & 79)

16шт.

33

NSS

NOT SOLD SEPARAT

O-Ring (incl in Refs. 75, 76 & 79)

8шт.

34

NSS

NOT SOLD SEPARAT

Lift Check Poppet

8шт.

35

NSS

NOT SOLD SEPARAT

Lift Check Spring

8шт.

36

18-1704

RETAINER

Spool Seal Retainer (incl Refs. 37-39)

4шт.

37

NSS

NOT SOLD SEPARAT

Plate

4шт.

38

18-1702

SCREW

& Lock Washer

8шт.

39

NSS

NOT SOLD SEPARAT

Plate

4шт.

40

18-878

SEAL

Assy (incl Refs. 41-43) (incl in Ref. 76)

4шт.

41

NSS

NOT SOLD SEPARAT

Seal (incl in Ref. 76)

4шт.

42

NSS

NOT SOLD SEPARAT

Backup Washer (incl in Ref. 76)

4шт.

43

NSS

NOT SOLD SEPARAT

Seal Retainer (incl in Ref. 76)

4шт.

44

18-909

LOCK NUT

Nut

3шт.

45

18-895

LARGE PLATE

Plate

3шт.

46

238-7020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

(incl in Refs. 76 & 80)

3шт.

IF 238-7020 NOT AVAILABLE YOU CAN USE 238-5020 NITRILE.

1шт.

47

50-1981T91

HYD VALVE SECTION

Knockout Section (incl Refs. 14, 27, 36, 40 & 48) ( Ref. 79)

3шт.

48

50-2038T91

LEVER

Knockout Positioner Assy ( Ref. 80)

3шт.

49

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 80)

3шт.

50

NSS

NOT SOLD SEPARAT

Backup Ring (incl in Ref. 80)

3шт.

51

NSS

NOT SOLD SEPARAT

Detent Sleeve

3шт.

52

NSS

NOT SOLD SEPARAT

Ball Follower

3шт.

53

NSS

NOT SOLD SEPARAT

Spring

3шт.

54

NSS

NOT SOLD SEPARAT

Spring

3шт.

55

NSS

NOT SOLD SEPARAT

Spring

3шт.

56

NSS

NOT SOLD SEPARAT

Bonnet

3шт.

57

2-3815T1

PLUG

Button Plug

3шт.

58

NSS

NOT SOLD SEPARAT

Set Screw

3шт.

59

NSS

NOT SOLD SEPARAT

Lock Nut

3шт.

60

NSS

NOT SOLD SEPARAT

Spool Collar

3шт.

61

NSS

NOT SOLD SEPARAT

Spring Collar

6шт.

62

NSS

NOT SOLD SEPARAT

Spring Guide

3шт.

63

NSS

NOT SOLD SEPARAT

Screw

6шт.

64

NSS

NOT SOLD SEPARAT

Bearing Plate

6шт.

65

NSS

NOT SOLD SEPARAT

Knockout Plunger

3шт.

66

NSS

NOT SOLD SEPARAT

Piston Guide

3шт.

67

NSS

NOT SOLD SEPARAT

Backup Ring (incl in Ref. 80)

6шт.

68

NSS

NOT SOLD SEPARAT

O-Ring (incl in Ref. 80)

3шт.

69

NSS

NOT SOLD SEPARAT

Needle Roller

3шт.

70

50-1188T1

LARGE PLATE

Cover Plate (Right) (incl Ref. 71)

1шт.

71

31-1594

PLUG,Hex Hd, 1 3/16"-12 ORB

(14)

1шт.

The power beyond adapter is P/N 18-1134 and is used in place of Ref. 71.

1шт.

72

2-2861

O-RING

(incl in Refs. 76 & 81)

10шт.

73

2-2862

O-RING

(incl in Refs. 76 & 81)

10шт.

74

18-1037

STUD,Flg, 3/8" x 9 1/2"

Capscrew (3 & 4-Spool Valves)

3шт.

18-1038

STUD,3/8" - 24 x 11.50"

Capscrew (5-Spool Valve)

3шт.

75

2-4786T1

SEAL KIT

Kit (Load Check incl 1 ea Refs. 29-31 & 33; 2 ea Ref. 32)

1шт.

76

18-962

SEAL KIT

Kit (Complete for Float Banks (incl 2 of Ref. 75, 1 ea Refs. 25, 26, 40, 46 & 81)

1шт.

77

18-1417

SEAL

Relief Poppet & Seal Assy (incl Refs. 9 & 10)

1шт.

78

50-2039T1

SEAL KIT

Kit (Relief Body) (incl Refs. 5, 6, 11 & 12)

1шт.

79

35-1059

SEAL KIT

Kit (Complete for Knockout Section) (incl 1 ea Refs. 57, 80 & 81, & 2 of 75)

1шт.

80

50-2050T1

SEAL KIT

Kit (Knockout Positioner Assy) (incl Refs. 49, 50, 68 & 2 of 67)

1шт.

81

1-8344

SEAL KIT

O-Ring Kit (incl 2 each of Refs. 72 & 73)

1шт.

One seal kit is needed between each valve section.

1шт.

40

18-878

SEAL

Kit (incl 1 ea Refs. 41-43) (note that Refs. 49 & 50 are same as 41 & 42)

1шт.
