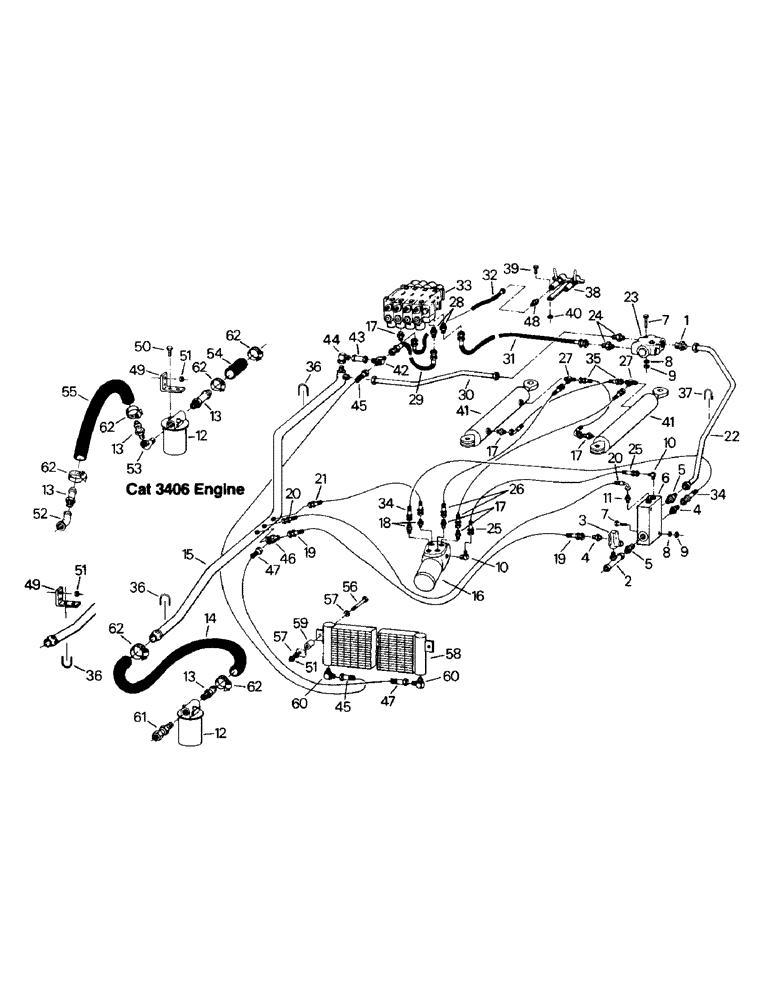

Запчасти Case IH KM-325 (08-02) - HYDRAULIC SYSTEM, LESS PUMP AND ATTACHING PARTS (07) - HYDRAULICS

1

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

1шт.

2

18-1541

TEE

Press. Tube (not on w/Komatsu engine)

1шт.

3

Relief Valve Assy (Fig. 8-14)

1шт.

4

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Fitting (10)

2шт.

5

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12)

2шт.

6

Priority Valve Assy (Fig. 8-16)

1шт.

7

19-1007

BOLT,Hex, 5/16" - 18 x 3", Gr 5

Capscrew

4шт.

8

19-700

WASHER,5/16"

6шт.

9

19-508

LOCK NUT

Lock Nut

4шт.

10

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4)

2шт.

11

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

Fitting (4)

1шт.

12

18-497

FILTER

Assy (purchase separately if no longer available)

1шт.

50-2602T1

HEAD

Filter Head

1шт.

18-498

FILTER, ENGINE OIL

Element

1шт.

18-669

O-RING

(for above)

1шт.

13

18-1529

FITTING

(qty 3 with Cat 3406 Engine)

1шт.

14

31-2339

HOSE,1.55" ID x 11.25"

Return Hose 1.55" ID x 11.25"

1шт.

15

18-1528

TUBE,1.5" ID, 1.582" OD

Return Hose (other models)

1шт.

50-1191T1

TUBE

Return Tube (Cat 3406 Engine)

1шт.

16

Steering Control Valve Assy (Fig. 8-17)

1шт.

17

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Fitting (8)

1шт.

18

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

Fitting (8)

2шт.

19

18-1540

HOSE

(all except w/Komatsu engine)

1шт.

31-1147

HOSE

(w/Komatsu engine only)

1шт.

20

18-1537

HOSE ASSY.

Hose

1шт.

21

31-1046

HOSE

1шт.

22

31-2513

HOSE ASSY.

Hose (Repl 18-1527 Tube shown above)

1шт.

Kit # 35-1582T91, which includes the Ref. 22 hose & installation instructions, can be installed in place of the tube. This will reduce hydraulic noise generated while steering. NOTE: Steering cyls w/cast clevises (in use ASN 4164) will have the ports facing down & the Ref. 27's are in the front ports. NOTE: Hose protector sleeves (not shown) are as follows: 18-1611 - 7/8" x 10" long; 18-1612 - 1-3/4" x 10" long (E) Superseded - Old P/N is not used an longer; the new P/N is to be used in ALL cases. Old P/

1шт.

23

Flow Divider Assy (Fig. 8-15)

1шт.

24

31-610

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

2шт.

25

18-1536

HOSE

1шт.

26

31-1953

HOSE ASSY.

Hose (BSN4164)

2шт.

31-2521

HOSE

(ASN4164)

2шт.

27

31-507

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

(8) (BSN4164)

2шт.

31-1072

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

(8) (ASN4164)

2шт.

28

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Fitting (12)

2шт.

29

31-1704

HOSE

1шт.

30

50-2064T1

Tube

1шт.

31

31-1944

HOSE ASSY.

Hose

1шт.

32

31-1948

HOSE ASSY.

Hose

1шт.

33

Control Valve Assy (Fig. 8-20)

1шт.

34

31-1044

HOSE

1шт.

35

18-1700

HOSE

2шт.

36

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

2шт.

37

19-152

U-BOLT

1шт.

38

Coupler Assy (Fig. 8-23)

1шт.

39

19-46

BOLT,1/2" - 13 x 2", Gr 5

Capscrew

1шт.

40

19-82

LOCK NUT

Lock Nut

1шт.

41

Steering Cylinder Assy (Fig. 8-18 & 8-19)

2шт.

42

31-1693

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

1шт.

43

50-1023T1

VALVE

Check Valve

1шт.

44

31-1477

ELBOW

1шт.

45

31-1694

HOSE

1шт.

46

31-495

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

(all except below)

1шт.

31-1997

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

(w/Komatsu Engine)

1шт.

47

31-1703

HOSE

1шт.

48

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

Fitting (10)

1шт.

49

1-3070

Filter Bracket (w/Cat 3406, Komatsu & 10L Cummins engines only)

1шт.

50

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

Capscrew

2шт.

51

19-78

SPECIAL NUT,3/8"-16, G5

1шт.

52

1-3716

Elbow

1шт.

53

31-23

Street Elbow

1шт.

54

1-3708

Hose

1шт.

55

1-3709

HOSE

1шт.

56

19-133

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Capscrew

2шт.

57

19-107

WASHER

6шт.

58

10-39

COOLER

Oil Cooler

1шт.

59

2-1981T1

SPACER

2шт.

60

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

2шт.

61

31-1869

ADAPTER

1шт.

62

31-1283

MOUNTING CLIP

Clamp (qty 4 with Cat 3406 Engine)

2шт.

63

19-135

CABLE TIE

Ty Rap (not shown)

6шт.
