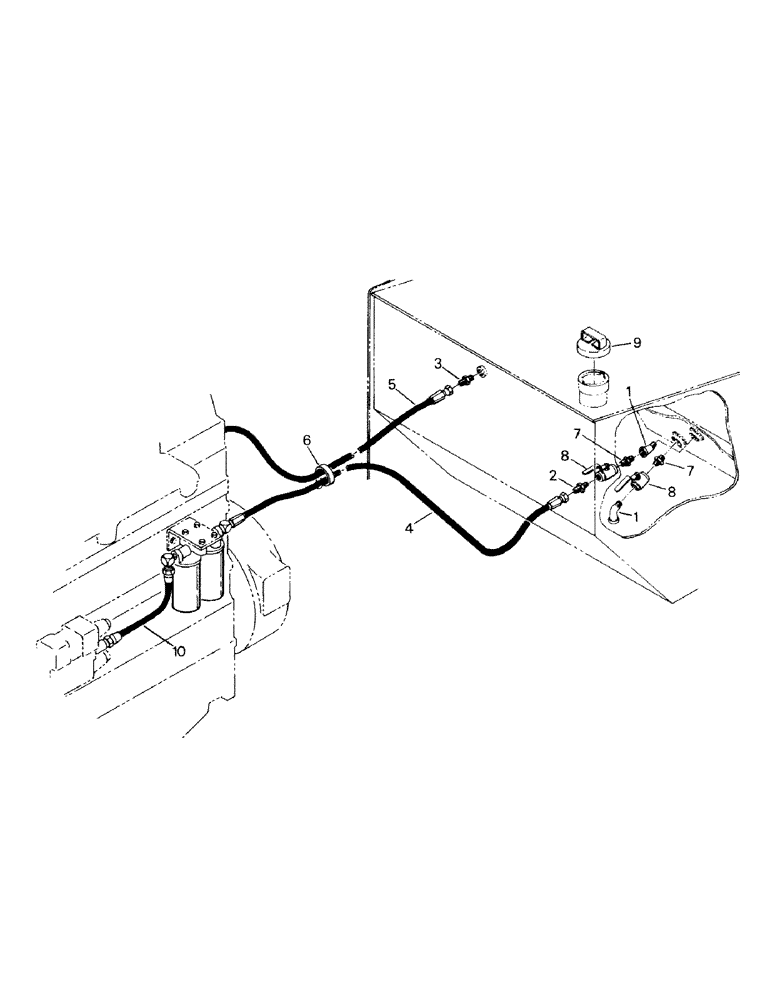

Запчасти Case IH KM-280 (07-03) - FUEL SYSTEM, CUMMINS 855 ENGINE (02) - FUEL SYSTEM

1

31-210

Street Elbow

2шт.

2

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

Fitting

1шт.

3

31-363

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

Fitting

1шт.

4

31-1952

HOSE ASSY.

Hose

1шт.

5

31-1949

HOSE ASSY.

Hose

1шт.

6

32-343

MOUNTING CLIP

Clamp

1шт.

7

31-345

FITTING

2шт.

8

31-1267

SHUT-OFF VALVE

Ball Valve

2шт.

9

Fuel Cap (Fig. 6-5)

1шт.

10

NAP

Hose (supplied with engine)

1шт.
