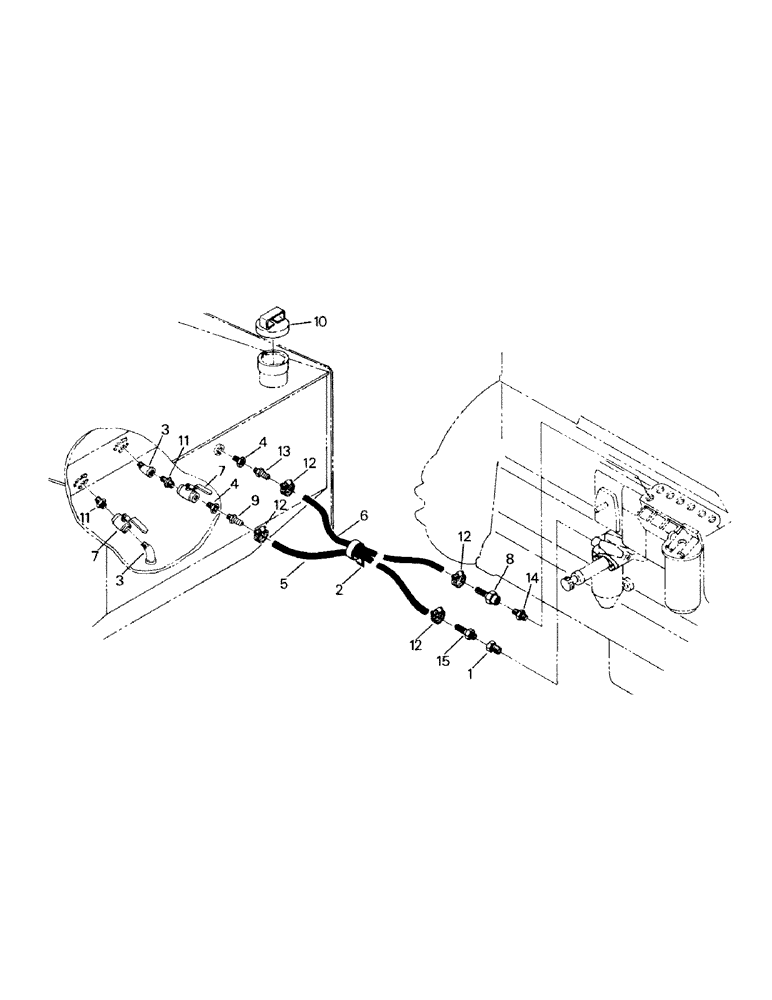

Запчасти Case IH KM-280 (07-01) - FUEL SYSTEM, CAT 3306 ENGINE (02) - FUEL SYSTEM

1

31-1547

ADAPTER

Reducer (8)

1шт.

2

32-343

MOUNTING CLIP

Clamp

1шт.

3

31-210

Street Elbow

2шт.

4

31-181

REDUCER

2шт.

5

31-1947

HOSE

1шт.

6

31-1946

HOSE

1шт.

7

31-1267

SHUT-OFF VALVE

Ball Valve

2шт.

8

31-1588

FITTING

Barbed Fitting

1шт.

9

31-137

FITTING

Barbed Fitting

1шт.

10

Fuel Cap (Fig. 6-5)

1шт.

11

31-345

FITTING

2шт.

12

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

Clamp

4шт.

13

31-1186

FITTING

Barbed Fitting

1шт.

14

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

Adapter

1шт.

15

31-218

CONNECTING ROD

Barbed Fitting

1шт.
