Запчасти Case IH KM-280 (10-11) - FLOW DIVIDER ASSEMBLY Options & Miscellaneous

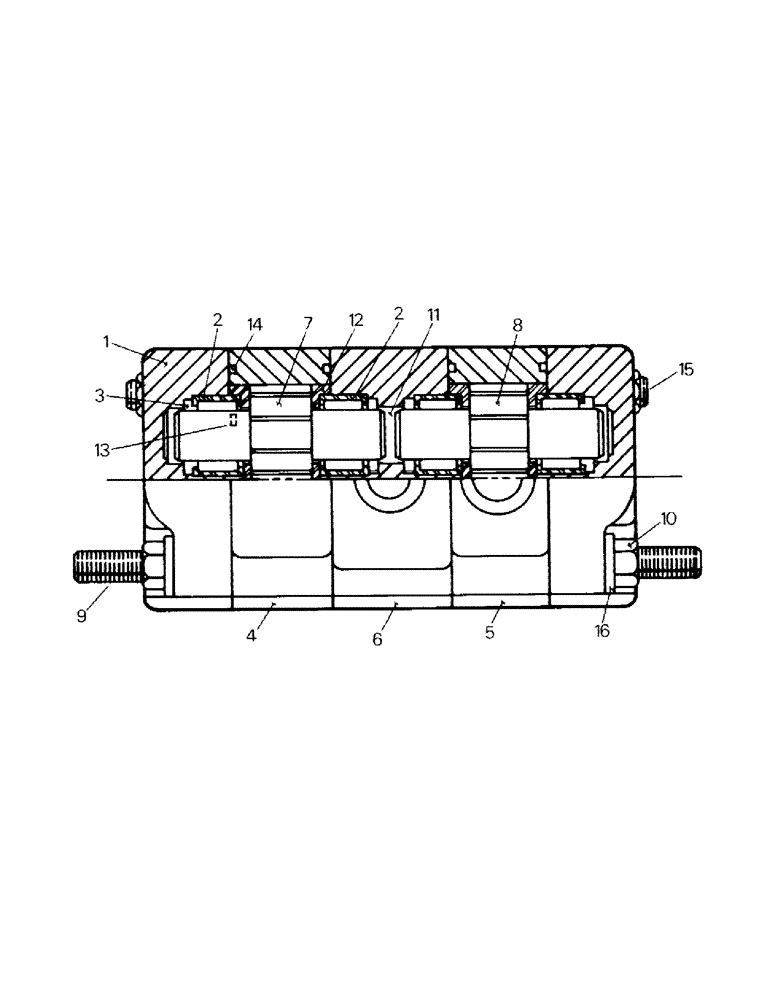

Схема запчастей Case IH KM-280 - (10-11) - FLOW DIVIDER ASSEMBLY Options & Miscellaneous
8
3
11
1
13
2
14
9
7
15
10
12
16
2
4
6
5

Артикул

Название

Примечание

Количество

50-1190T91

DIVIDER

Flow Divider Assy., 1/3 and 2/3 Flow, consists of Ref. 1 - 16

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1839T91

DIVIDER

Flow Divider Assy., 1/2 and 1/2 Flow, consists of Ref. 1 - 16

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

1

18-779

PORT

End Cover

2шт.

2

18-773

ROLLER BEARING

8шт.

3

19-771

Ring Seal

4шт.

4

18-977

HOUSING

Gear Housing, used in Flow Divider assy. 50-1190T91

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1856T1

HOUSING

Gear Housing, used in Flow Divider assy. 50-1839T91

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

5

2-4170T1

HOUSING

Gear Housing, used in Flow Divider assy. 50-1190T91

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1856T1

HOUSING

Gear Housing, used in Flow Divider assy. 50-1839T91

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

6

2-4169T1

CARRIER

Bearing Carrier, used in Flow Divider assy. 50-1190T913

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1857T1

CARRIER

Bearing Carrier

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

7

18-976

GEAR-SET

Gear Set, used in Flow Divider assy. 50-1190T91

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1858T1

GEAR-SET

Gear Set, used in Flow Divider assy. 50-1839T91

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

8

2-4168T1

Gear Set, used in FlowDivider assy. 50-1190T91

1шт.

Used in Flow divider P/N 50-1190T91

1шт.

50-1858T1

GEAR-SET

Gear Set, used in Flow Divider assy. 50-1839T91

1шт.

Used in Flow Divider P/N 50-1839T91

1шт.

9

2-4165T1

STUD

2шт.

10

18-803

NUT

8шт.

11

18-975

SHAFT

Connecting Shaft

1шт.

12

18-774

LARGE PLATE

Thrust Plate

4шт.

13

2-3433T1

SEAL

Pocket Seal

24шт.

14

18-777

GASKET,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

Seal

4шт.

15

2-4167T1

STUD

2шт.

16

2-4166T1

WASHER

8шт.

Выбрано товаров: 35
