Запчасти Case IH KM-280 (10-10) - SOLENOID VALVE ASSEMBLY Options & Miscellaneous

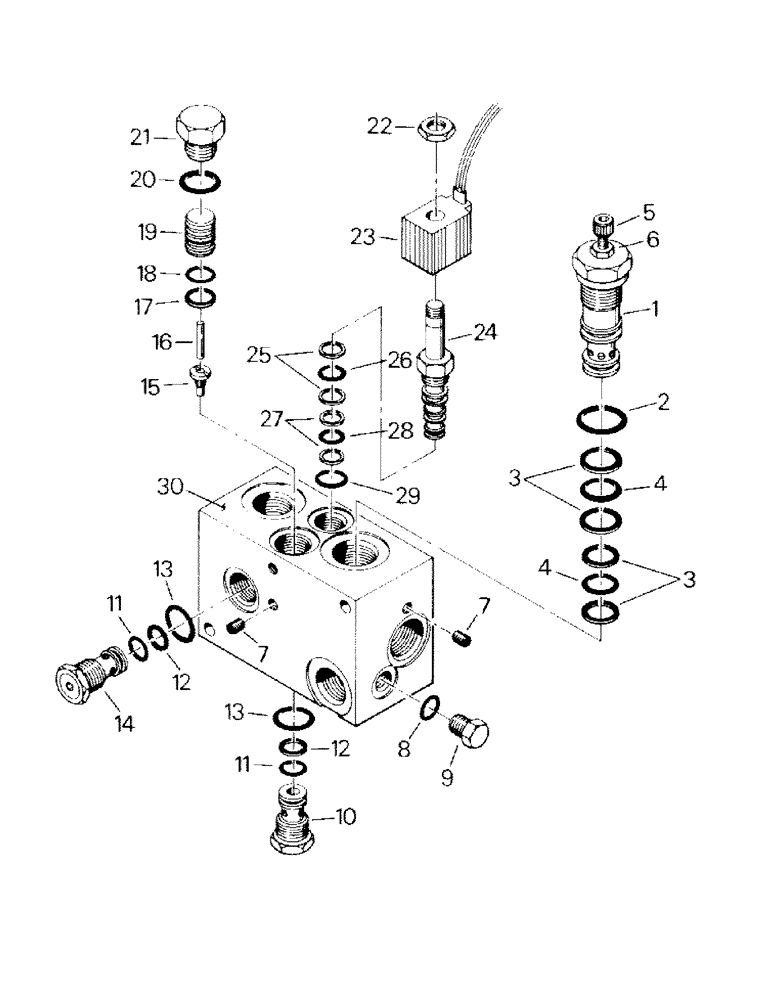

Схема запчастей Case IH KM-280 - (10-10) - SOLENOID VALVE ASSEMBLY Options & Miscellaneous
5
4
3
12
13
9
17
23
30
20
11
8
13
19
12
11
28
25
1
14
24
18
7
22
29
10
21
3
4
2
16
27
7
26
6
15

Артикул

Название

Примечание

Количество

50-2154T91

SOLENOID

Valve Assy, consists of Ref. 1-30

1шт.

50-2159T91

VALVE

Relief Valve Assy, consists of Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

Relief Valve

1шт.

50-2160T1

SEAL KIT

Kit, consists of Ref. 2-4

1шт.

2

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

NSS

NOT SOLD SEPARAT

Backup Ring

4шт.

4

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

5

40-1187

CAPSCREW,M6 x 22mm, Gr 12.9

Socket Head Capscrew (metric)

1шт.

6

40-1188

NUT

(metric)

1шт.

7

31-535

PLUG

Pipe Plug

3шт.

8

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

1-3213

PLUG

(with O-Ring)

1шт.

50-2161T91

VALVE, CHECK

Check Valve Assy, consists of Ref. 10-13

1шт.

10

NSS

NOT SOLD SEPARAT

Check Valve

1шт.

50-2163T91

VALVE, CHECK

Check Valve Assy, consists of Ref. 11-14

1шт.

50-2162T1

SEAL KIT

Seal Kit, consists of Ref. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Backup Ring

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

14

NSS

NOT SOLD SEPARAT

Check Valve

1шт.

15

50-2164T1

GUIDE

1шт.

16

19-6103

PIN,3/16" x 1 1/8"

Dowel Pin

1шт.

17

31-2314

O-RING

1шт.

18

31-2315

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

19

50-2165T1

PISTON

1шт.

20

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

86512512

PLUG,7/8" - 14 ORB

1шт.

50-2611T91

Solenoid Valve Sub-Assy, consists of Ref. 22-29

1шт.

22

19-237

NUT,Jam, 1/2" - 20, Gr 5

Jam Nut

1шт.

23

50-2167T1

SOLENOID

1шт.

24

NSS

NOT SOLD SEPARAT

Valve

1шт.

35-1511T91

SEAL ASSY.

Seal Kit, consists of Ref. 25-29

1шт.

25

50-2168T1

RING

Backup Ring

2шт.

26

31-2316

O-RING

1шт.

27

50-2169T1

RING

Backup Ring

2шт.

28

31-2027

O-RING

1шт.

29

31-2317

O-RING

1шт.

30

NSS

NOT SOLD SEPARAT

Body

1шт.

Выбрано товаров: 38
