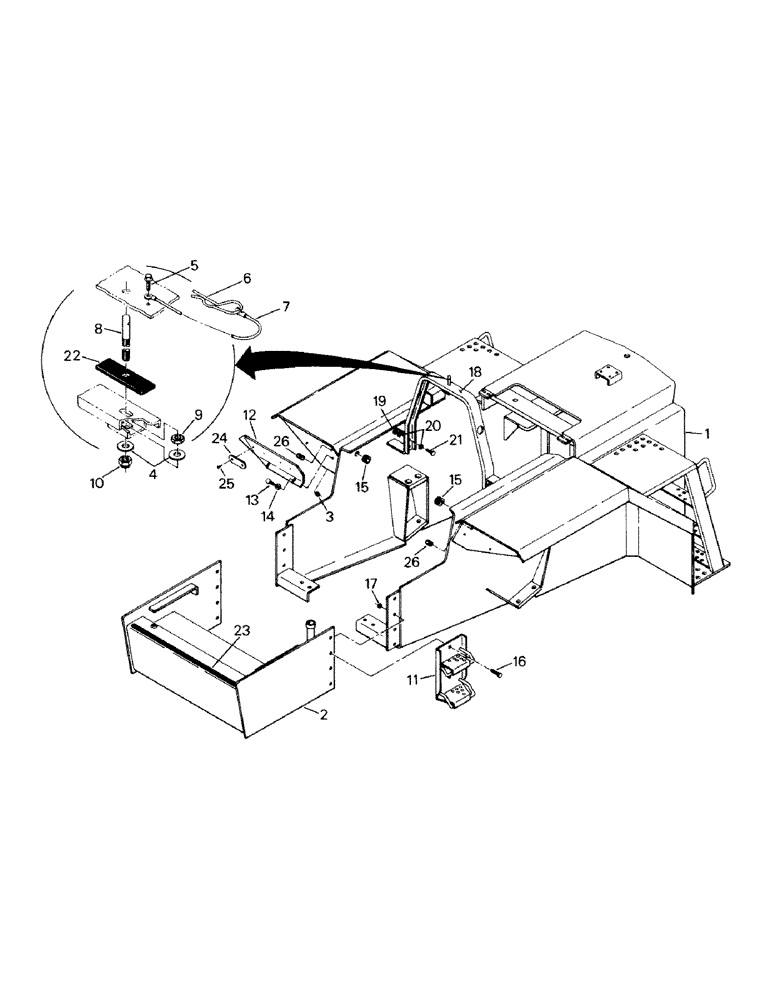

Запчасти Case IH KM-280 (06-01) - FRONT FRAME (12) - FRAME

1

Front Frame, special order item, need S/N to get frame part number

1шт.

2

Hydraulic Reservoir, see Figure 08-04

1шт.

3

19-76

NUT,1/4"-20, G5

4шт.

1-545

LATCH

Hood Latch Assy, consists of Ref. 4 -10

1шт.

4

19-463

WASHER,1/2", SAE

1шт.

5

281-1438

SELF-TAP SCREW,Hex Wash Hd, #6 x 1/2"

Tapping Screw

1шт.

6

19-5768

PIN

Clip Pin

1шт.

7

2-4120T1

CABLE

Lanyard Cable

1шт.

8

2-4121T1

PIN

1шт.

9

19-93

NUT,1/2"-20, G5

1шт.

10

231-2448

LOCK NUT,1/2"-20, GB

1шт.

11

51-449

STEP

Plate

1шт.

12

51-472

Wire Cover, left, BSN 4164, Serial Range: -4164

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

51-472T1

Wire Cover, left, ASN 4164 (reflectors changed to stick on eliminating need for holes in wire covers), Start Serial: 4164

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

51-473

NO LONGER SERVICED

Wire Cover, right, BSN 4164, Serial Range: -4164

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

51-473T1

LARGE PLATE

Wire Cover, right, ASN 4164, (reflectors changed to stick on eliminating need for holes in wire covers), Start Serial: 4164

1шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

13

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

4шт.

14

19-223

WASHER,1/4"

4шт.

15

22-288

Grommet

2шт.

16

19-187

CAPSCREW,3/4" - 16 x 2", Gr 5

8шт.

17

19-97

NUT,3/4"-16, G5

8шт.

18

70-1240T2

HOOD

Rest

1шт.

19

232-4136

LOCK NUT,3/8"-16, GC

4шт.

20

19-107

WASHER

8шт.

21

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Capscrew

4шт.

22

1-4073

FOAM

Pad

1шт.

23

70-3028T1

SEAL

1шт.

24

22-832

REFLECTOR

screw on, BSN 4164, Serial Range: -4164

4шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

22-832T1

REFLECTOR

stick on, after 4164 reflectors changed to stick on eliminating need for holes in wire covers, Start Serial: 4164

4шт.

Superseded, old P/N can be used up on all models prior to S/N break only. New P/N MUST be used after S/N break. Order new P/N when old stock is depleted as it will work for all.

1шт.

25

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw, BSN 4164, Serial Range: -4164

8шт.
