Запчасти Case IH KM-280 (01-24) - TRANSMISSION SHIFT TOWER (10) - CAB

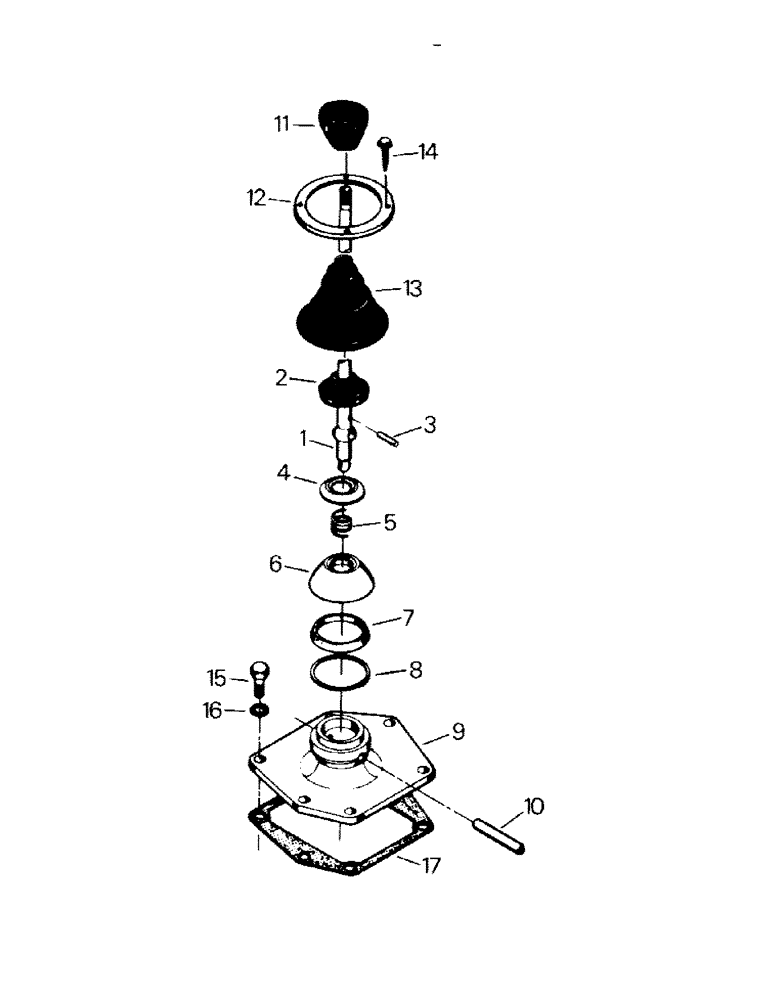

Схема запчастей Case IH KM-280 - (01-24) - TRANSMISSION SHIFT TOWER (10) - CAB
10
8
4
16
7
15
3
17
14
2
9
11
1
6
5
12
13

Артикул

Название

Примечание

Количество

12-1996T92

LEVER

Tower Assy., Replaces 12-1996T91, consists of Ref. 1 - 10

1шт.

Either version is OK to use on all except KM 225 which should always use the T92 and the T2 version of Refs. 1-10 and 1.

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

12-1995T2

LEVER

Shift Lever, Replaces 12-1995T1

1шт.

Either version is OK to use on all except KM 225 which should always use the T92 and the T2 version of Refs. 1-10 and 1.

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

12-1565

BOOT

Grommet

1шт.

3

12-1566

PIN,5/16" x 1"

1шт.

4

12-1567

COLLAR

Compression Collar

1шт.

5

12-1568

SPRING

1шт.

6

12-1569

CUP

Compression Cup

1шт.

7

12-1570

WASHER

Compression Washer

1шт.

8

12-1573

OIL SEAL

Snap Ring

1шт.

9

12-422

LEVER

Cover

1шт.

10

12-1572

SHAFT

Shift Lever Rod Shaft

1шт.

11

12-8

KNOB

Shifter Ball

1шт.

12

54-71

LARGE PLATE

Ring

1шт.

13

24-218

BOOT

1шт.

14

19-388

SELF-TAP SCREW,Hex Wshr Hd, 1/4" x 1 1/4"

Tapping Screw

4шт.

15

12-1575

BOLT

Capscrew

6шт.

16

12-1496

LOCK WASHER

Washer

6шт.

17

12-1571

GASKET

1шт.

Выбрано товаров: 22
