Запчасти Case IH KM-280 (01-03) - DOOR ASSEMBLY (10) - CAB

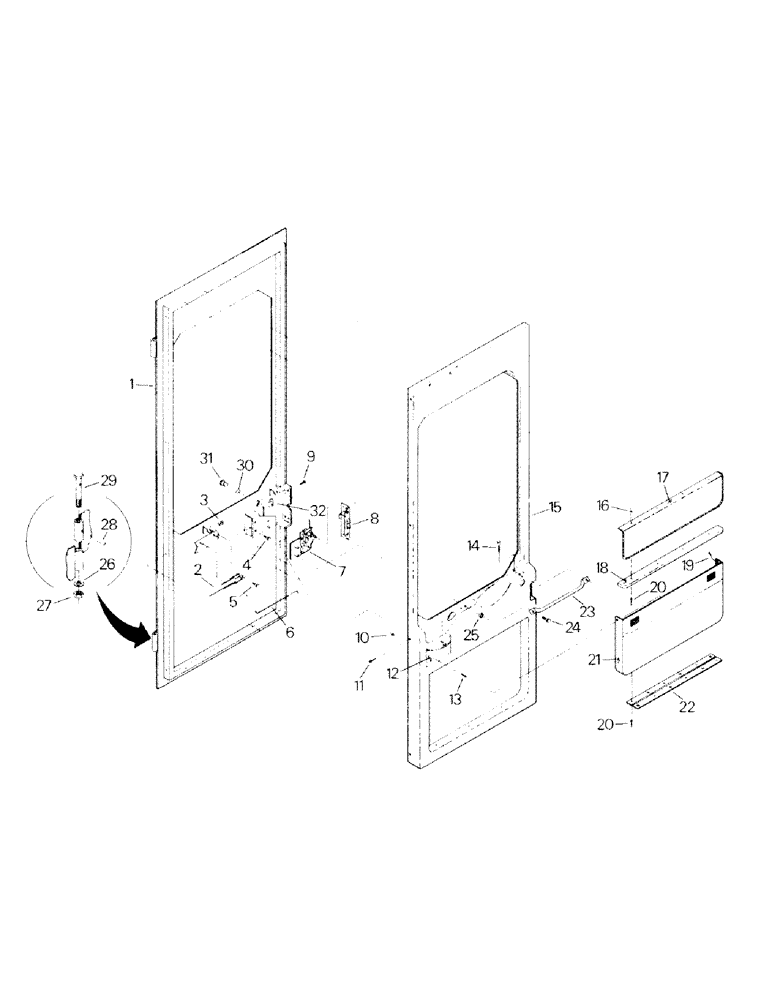

Схема запчастей Case IH KM-280 - (01-03) - DOOR ASSEMBLY (10) - CAB
30
1
32
4
28
25
9
3
24
21
6
5
18
17
20
12
23
8
13
15
2
20
29
31
16
27
26
22
7
14
19
10
11

Артикул

Название

Примечание

Количество

1

1-3382T1

DOOR

Frame (Left)

1шт.

1-3383T1

DOOR

Frame (Right)

1шт.

2

1-4024

HANDLE

Inside Handle Assy (Left)

1шт.

1-4025

HANDLE

Inside Handle Assy (Right)

1шт.

3

19-378

NUT

Clip Nut

2шт.

4

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

3шт.

5

19-891

HEX SOC SCREW,1/4"-20 x 1/2"

Socket Head Capscrew

2шт.

6

1-4023

ROD

Release Rod

1шт.

7

1-3183

HANDLE

Outside Handle Assy (Left)

1шт.

1-3184

HANDLE

Outside Handle Assy (Right)

1шт.

8

1-3181

LATCH

Assy (Left)

1шт.

1-3182

LATCH

Assy (Right)

1шт.

9

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

Capscrew

4шт.

10

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

11

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

8шт.

12

64-95

ASH TRAY

(Left side only)

1шт.

13

19-1000

SCREW,Rnd Hd, #8 - 32 x 3/4"

Machine Screw

2шт.

14

1-3254

KNOB

Plunger Knob

1шт.

15

1-3219T2

PANEL

(Left)

1шт.

1-3197T2

PANEL

(Right)

1шт.

16

19-708

WASHER,#6

16шт.

17

1-3186

COVER

Flap

1шт.

18

1-3187

SUPPORT

Flap Support

1шт.

19

1-3200

RETAINER

2шт.

20

19-157

RIVET

Pop Rivet

16шт.

21

1-3198

COVER

Pouch

1шт.

22

1-3185

HINGE

1шт.

23

1-9155

HANDLE

1шт.

24

19-5557

CAPSCREW,5/16" - 18 x 1 1/4", Gr 5

2шт.

25

19-6060

SPACER

2шт.

26

19-5434

WASHER

2шт.

27

19-341

LOCK NUT,3/8" - 16, GB

2шт.

28

9417915

PIN,3/32" x 3/4", Coiled

2шт.

29

2-6502T1

CAPSCREW,M6 x 45mm

2шт.

30

1-4074

RUBBER WASHER

Rubber Washer

1шт.

31

1-6685

LOCK

set

1шт.

32

1-4788

CLIP

Mounting Clip

1шт.

Выбрано товаров: 37
