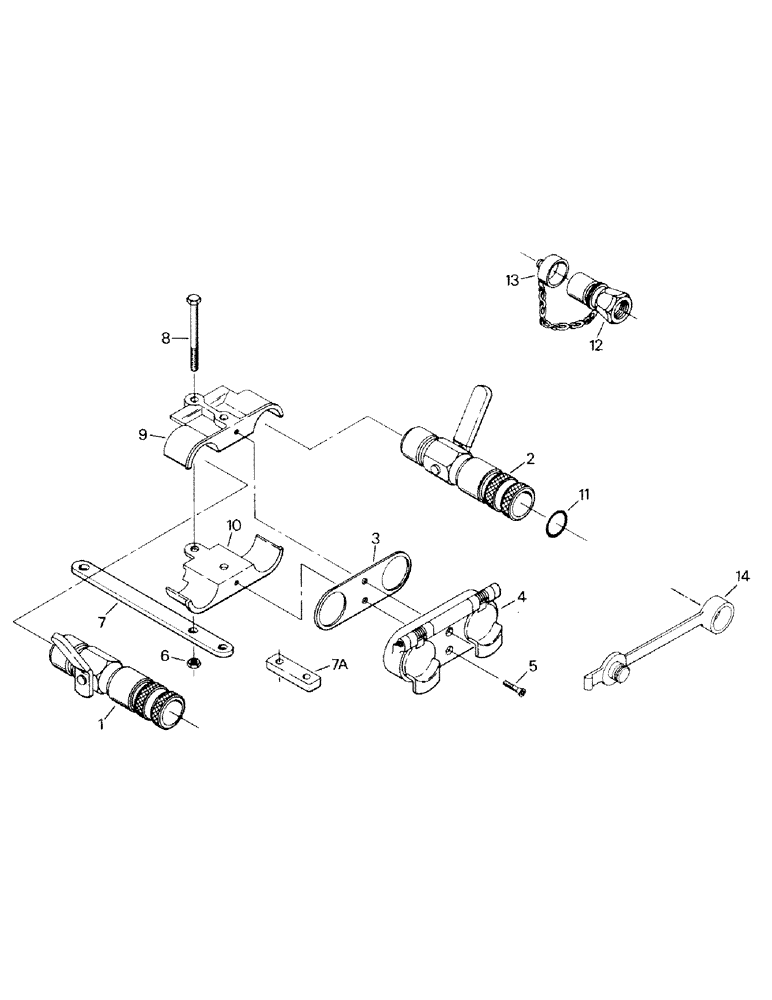

Запчасти Case IH KM-280 (08-23) - HYDRAULIC COUPLER ASSEMBLY (07) - HYDRAULICS

50-1347T91

COUPLING

Hyd Coupler Assy., with early style rear frame, Includes Refs. 1 - 13, service with 50-1347T92, Serial Range: -3913

1шт.

50-1347T92

COUPLING

Hyd Coupler Assy., with early style rear frame, Includes Refs. 1, 2, 6, 7 - 14, Serial Range: -3913

1шт.

50-1328T92

ASSEMBLY

Hyd Coupler Assy., with later style rear frame, Includes Refs. 1, 2, 6, 7A - 14, Start Serial: 3913

1шт.

1

50-1460T91

PUSH-PULL COUPLING

Female Coupler, Yellow, Includes Ref. 11

1шт.

2

50-1459T91

PUSH-PULL COUPLING

Female Coupler, Red, Includes Ref. 11

1шт.

3

50-1458T1

GASKET

1шт.

4

50-1457T1

HOUSING

Assy

1шт.

5

138203

HEX SOC SCREW,1/4" - 20 x 1 1/4", Gr 8

Socket Head Capscrew

2шт.

6

232-4136

LOCK NUT,3/8"-16, GC

2шт.

7

50-1456T1

CLAMP

Bar, with early style rear frame, Serial Range: -3913

1шт.

7a

50-1604T1

SPACER

with later style rear frame, Start Serial: 3913

1шт.

8

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

Capscrew

2шт.

9

50-1455T1

CLAMP BRACKET

Top Clamp

1шт.

10

50-1454T1

CLAMP BRACKET

Bottom Clamp

1шт.

11

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-Ring

2шт.

12

1-7141

FITTING

Male Tip Assy

2шт.

13

1-7142

CAP

Dust Cap

2шт.

14

50-2267T1

PLUG

Replaces Refs. 3 - 5

2шт.
