Запчасти Case IH KM-280 (08-14) - RELIEF VALVE ASSEMBLY (07) - HYDRAULICS

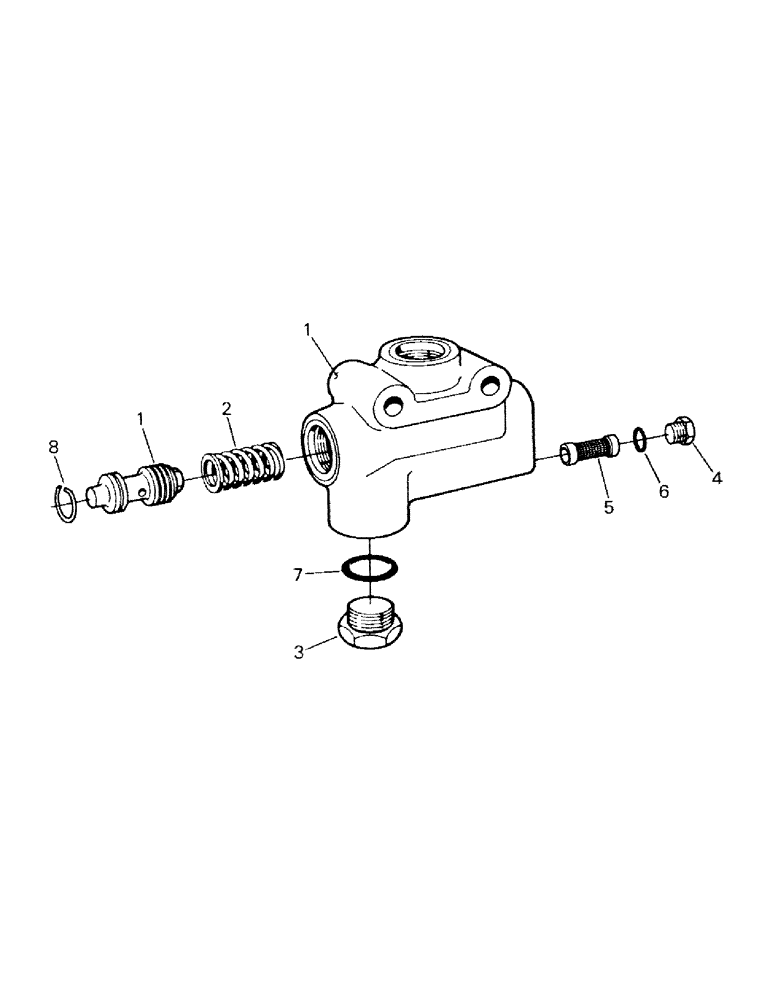

Схема запчастей Case IH KM-280 - (08-14) - RELIEF VALVE ASSEMBLY (07) - HYDRAULICS
6
7
8
1
2
3
5
4
1

Артикул

Название

Примечание

Количество

50-1209T91

VALVE, PRESSURE RELI

Relief Valve Assy, Ref. 1-8

1шт.

1

50-1878T1

SPOOL

Control Valve Sub-Assy

1шт.

2

50-1141T1

SPRING

1шт.

3

1-2198

PLUG

Assy (with O-Ring)

1шт.

4

31-1551

Plug Assy (with O-Ring)

1шт.

5

50-1143T1

SCREEN

Filter

1шт.

6

31-1552

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

50-1142T1

RING, SNAP

Snap Ring

1шт.

Выбрано товаров: 9
