Запчасти Case IH KM-280 (08-08B) - HYDRAULIC PUMP ASSEMBLY, KOMATSU ENGINE (07) - HYDRAULICS

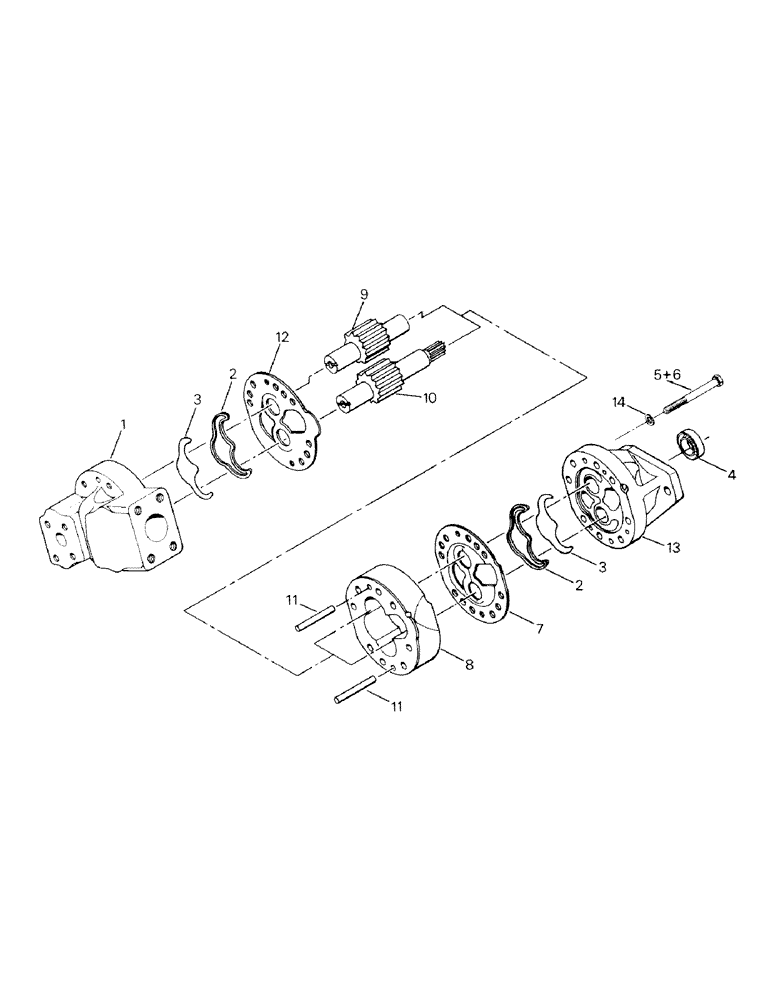

Схема запчастей Case IH KM-280 - (08-08B) - HYDRAULIC PUMP ASSEMBLY, KOMATSU ENGINE (07) - HYDRAULICS
2
2
3
3
11
5
10
11
7
12
14
13
4
1
9
6
8

Артикул

Название

Примечание

Количество

50-2260T91

PUMP

Hyd Pump Assy, Includes: Ref. 1-14

1шт.

1

50-2271T1

COVER

Rear Cover

1шт.

2

N60243

SEAL

Gland, Seal

2шт.

Part of P/N 50-2278T1 Seal Kit

1шт.

3

N60305

RETAINER

Seal Retainer

2шт.

Part of P/N 50-2278T1 Seal Kit

1шт.

4

50-2111T1

SEAL

Shaft

1шт.

Part of P/N 50-2278T1 Seal Kit

1шт.

5

50-2276T1

CAPSCREW,Flg, 1/2" - 13 x 4", Gr 8

long

4шт.

6

50-2277T1

CAPSCREW,Hex, M10 x 25mm

short

4шт.

7

50-2112T1

PLATE

Wear Plate, front

1шт.

8

50-2274T1

HOUSING

Center Housing

1шт.

9

50-2273T1

GEAR

Driven Gear

1шт.

10

50-2272T1

GEAR

Drive Gear

1шт.

11

19-6093

Dowel Pin

2шт.

12

50-2116T1

PLATE

Wear Plate, rear

1шт.

13

50-2275T1

COVER

Front Cover

1шт.

14

19-118

LOCK WASHER,7/16"

7/16"

8шт.

50-2278T1

SEAL KIT, consists of Ref. 2, 3 and 4

1шт.

Выбрано товаров: 19
