Запчасти Case IH KM-280 (08-08) - HYDRAULIC PUMP AND ATTACHING PARTS, CAT 3406 ENGINE (07) - HYDRAULICS

1

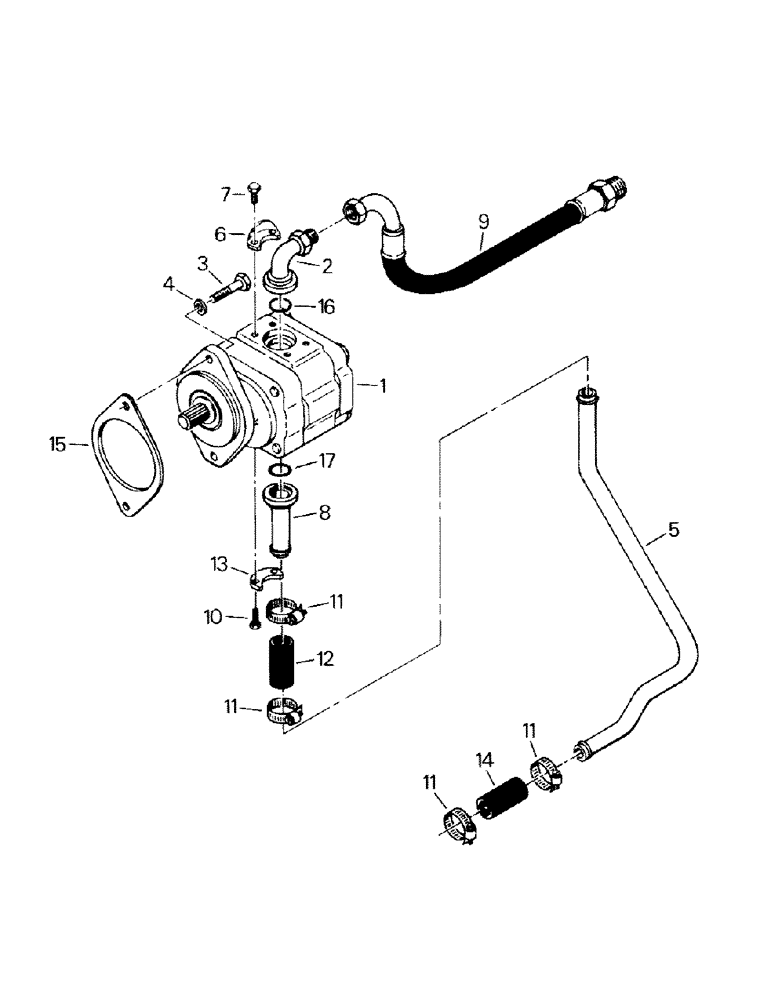

Hydraulic Pump Assy (Fig. 8-13)

1шт.

2

31-2035

ELBOW

Adapter Elbow

1шт.

3

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

Capscrew

2шт.

4

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

50-2056T1

Tube

1шт.

6

1-3526

COUPLING FLANGE

Split Flange

2шт.

7

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Capscrew

4шт.

8

31-2275

ADAPTER

1шт.

9

18-1745

HOSE

1шт.

10

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew

4шт.

11

31-1283

MOUNTING CLIP

Clamp

4шт.

12

1-4571

HOSE

1шт.

13

31-1911

FLANGE

Split Flange

2шт.

14

1-6220

HOSE,1.45" ID, 1.55" ID x 6.00"

1шт.

15

18-1176

GASKET

1шт.

16

31-1097

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

17

31-1328

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.
