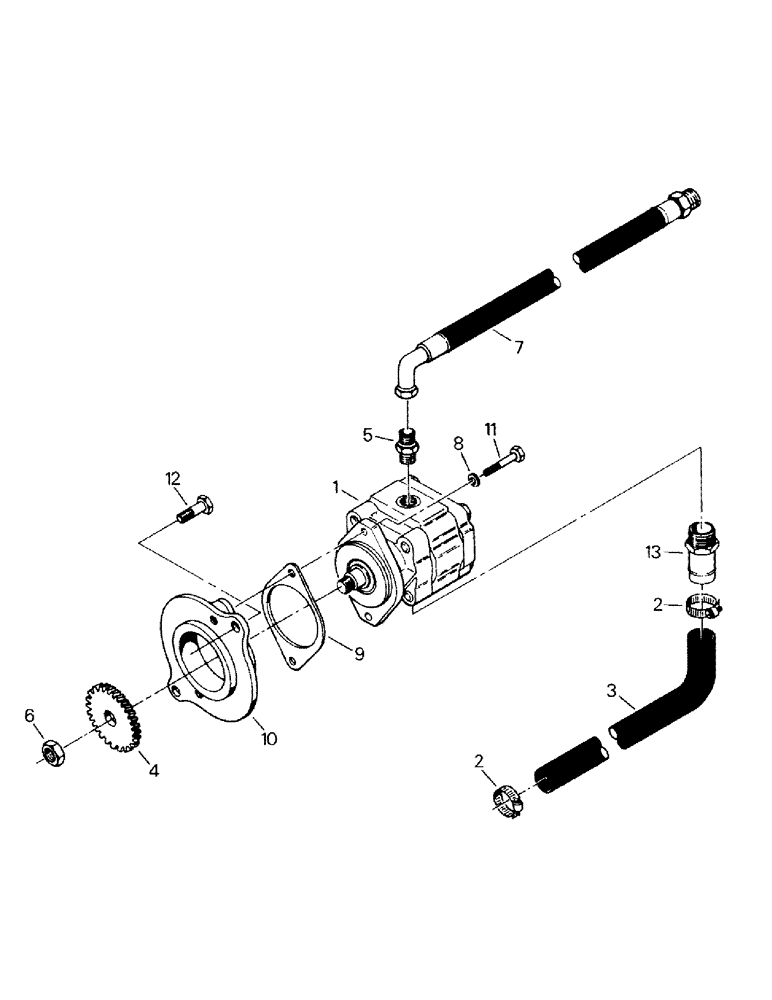

Запчасти Case IH KM-280 (08-05) - HYDRAULIC PUMP AND ATTACHING PARTS, CAT 3306 ENGINE (07) - HYDRAULICS

1

Hydraulic Pump Assy (Fig. 8-9)

1шт.

2

31-1283

MOUNTING CLIP

Clamp

2шт.

3

32-158

HOSE

1шт.

4

6-1491T1

GEAR

1шт.

5

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Fitting (16)

1шт.

6

19-261

NUT,7/8" - 14, Gr 5

1шт.

7

18-1554

HOSE

1шт.

8

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

9

18-1176

GASKET

1шт.

10

18-955T1

ADAPTER

1шт.

11

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

Capscrew

2шт.

12

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

Capscrew

2шт.

13

31-266

FITTING

(20)

1шт.
