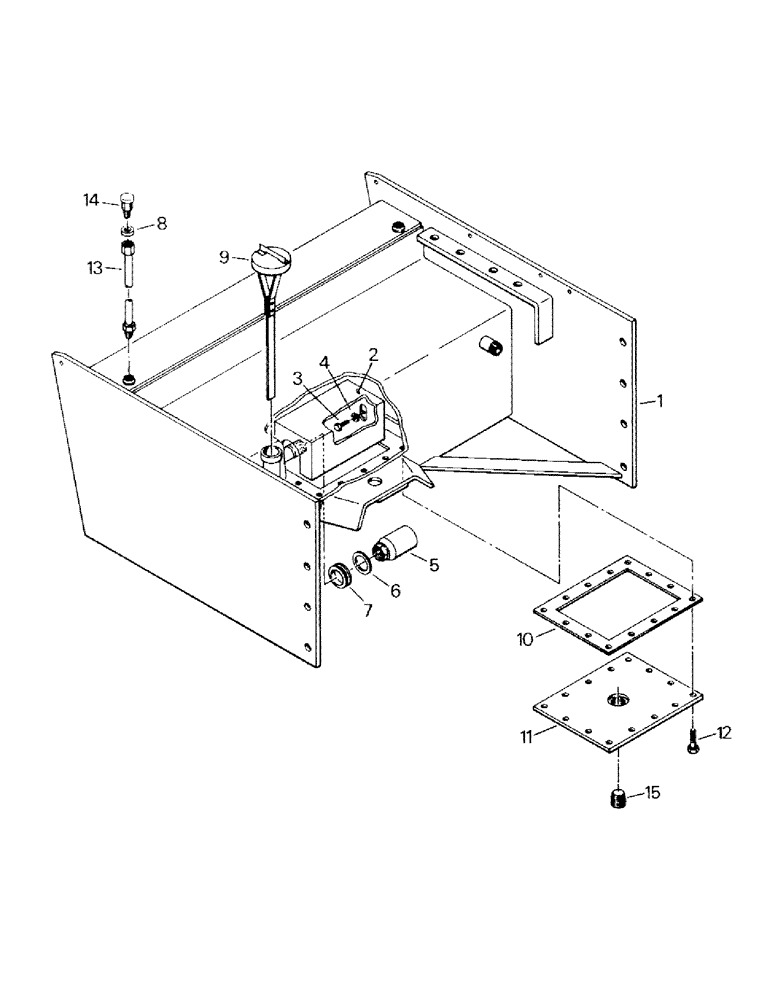

Запчасти Case IH KM-280 (08-04) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

1

50-1368T2

TANK

Hydraulic Reservoir

1шт.

2

51-428

Sump Box

1шт.

3

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

1шт.

4

19-107

WASHER

1шт.

5

18-496

FILTER SCREEN

Suction Screen

1шт.

50-2029T1

FILTER SCREEN

Suction Screen (interchangeable with P/N 18-496)

1шт.

6

19-953

LOCK NUT

Lock Nut

1шт.

7

32-327

GROMMET

1шт.

8

31-2298

Hose

2шт.

9

51-431

DIPSTICK

1шт.

10

51-433

GASKET

1шт.

11

1-1802

Filter Cover

1шт.

12

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

14шт.

13

31-2293

Hose

2шт.

14

31-303

BREATHER

Vent

2шт.

15

31-81

PLUG

Pipe Plug

1шт.
