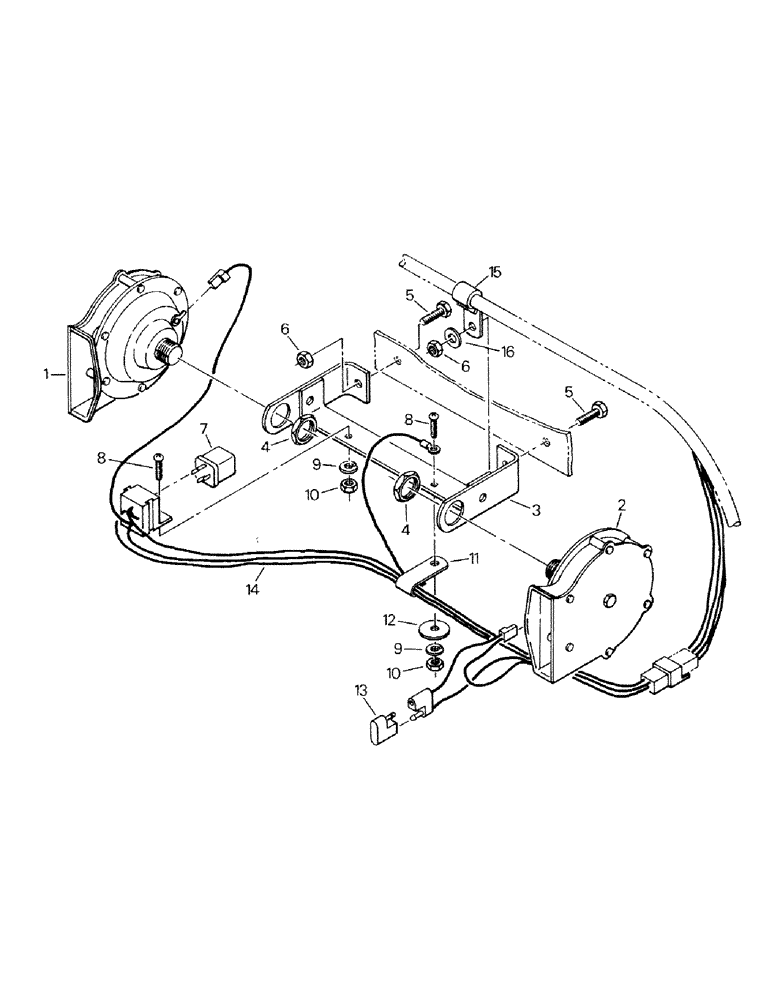

Запчасти Case IH KM-280 (02-22) - HORN AND MOUNTING (06) - ELECTRICAL

1

29-1002

HORN

1шт.

2

29-1003

HORN

1шт.

3

29-1004

BRACKET

2шт.

Ref. 3 replaced by 2 of P/N 29-1004 which is simply the end portions of the old mt w/o the brace between them, will require remounting Refs. 7-12 between Ref. 5

1шт.

4

19-1002

SPECIAL NUT

2шт.

5

19-288

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Capscrew

2шт.

6

19-508

LOCK NUT

Lock Nut

2шт.

7

20-2133T1

RELAY

Replaces 01-7877

1шт.

Superseded, P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

8

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

9

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

10

19-567

NUT,#10-24

2шт.

11

22-633

CLIP

1шт.

12

9421394

WASHER

1шт.

13

22-738

DIODE

1шт.

14

20-1867T1

HARNESS

Horn Wire Harness

1шт.

15

22-631

CLIP

1шт.

16

19-106

WASHER,5/16", SAE

1шт.
