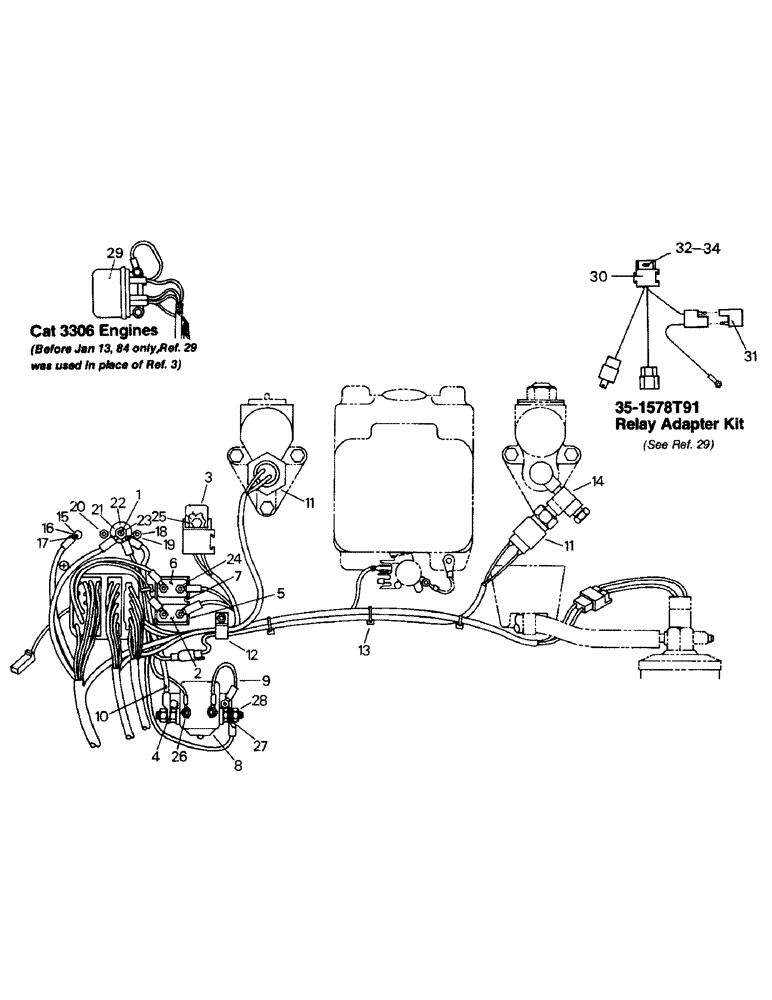

Запчасти Case IH KM-280 (02-14) - CAB FRONT ELECTRICAL (06) - ELECTRICAL

1

20-1150T1

BLOCK

Junction Block

1шт.

2

22-809

BREAKER

Circuit Breaker (5 Amp)

1шт.

3

20-2133T1

RELAY

(01-7877)

1шт.

4

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Tapping Screw

2шт.

5

20-1171T1

SUPPORT

Circuit Breaker Bracket

1шт.

6

22-670

BREAKER

Circuit Breaker (10 Amp)

1шт.

7

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

2шт.

8

20-1608T1

SOLENOID

Magnetic Switch

1шт.

9

20-1198T1

ELECTRICAL WIRE

Wire

1шт.

10

20-1197T1

ELECTRICAL WIRE

Wire

1шт.

11

22-729

SWITCH

Hydraulic Switch

2шт.

12

22-632

CLIP

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

4шт.

14

31-1353

TEE,1/8"-27 Female x 1/8"-27 Male Run

1шт.

15

19-115

LOCK WASHER,1/4"

1/4"

1шт.

16

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

Capscrew

1шт.

17

19-76

NUT,1/4"-20, G5

1шт.

18

436751

SCREW,Slotted Pan Hd, #10-32 x 5/8"

Machine Screw

2шт.

19

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

20

19-308

NUT,#10 - 32

2шт.

21

1-7096

GASKET

Junction Block Gasket

1шт.

22

19-5577

LOCK WASHER

Lock Washer

1шт.

23

115772

NUT

1шт.

24

19-481

SERRATED NUT

Kep Nut

4шт.

25

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

Tap Screw

1шт.

26

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

27

19-116

LOCK WASHER,5/16"

5/16"

2шт.

28

19-88

NUT,5/16"-24, G5

2шт.

29

1-3861

RELAY

(can be serviced w/Ref. 3 plus 35-1578T91 Relay Adapter Kit) (incl Refs. 30-34)

1шт.

30

20-2131T1

HARNESS

Relay Harness

1шт.

31

22-738

DIODE

1шт.

32

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

33

19-297

LOCK WASHER,#10

Washer, Lock, #10

1шт.

34

19-567

NUT,#10-24

1шт.
