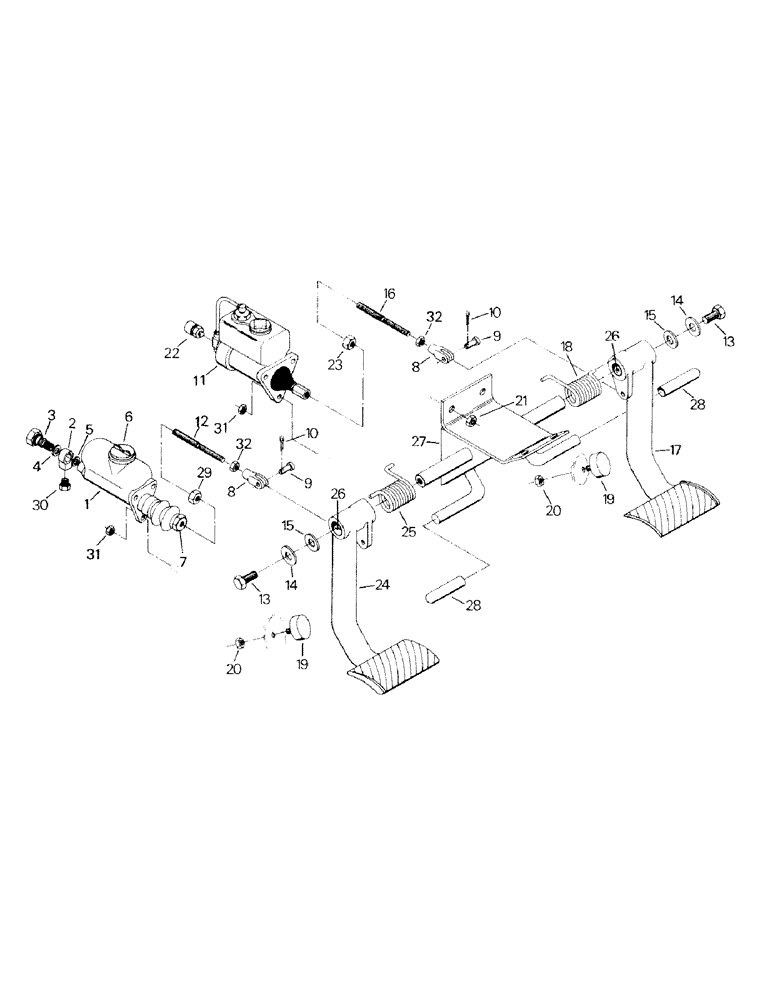

Запчасти Case IH KM-225 (01-27) - CLUTCH AND BRAKE CONTROLS (10) - CAB

1-2961T91

KIT

Clutch Master Cyl consists of Ref. 2-7

1шт.

35-1079

SEAL KIT

Minor Repair Kit

1шт.

THIS IS SEAL KIT FOR 1-2961T91 CYLINDER WHICH HAS A 1.000" BORE. 35-1894T91 IS SEAL KIT FOR 90-7554T91 WHICH HAS A .88" BORE.

1шт.

2

31-664

FITTING

Swivel Fitting

1шт.

3

31-663

BANJO BOLT

Outlet Port Bolt

1шт.

4

1-1799

GASKET

1шт.

5

1-1800

GASKET

1шт.

6

1-9956

PLUG

Cap

1шт.

7

1-2960

STEM

Push Rod

1шт.

8

19-139

YOKE

Clevis

2шт.

9

19-145

CLEVIS PIN,3/8" x 1.06"

2шт.

10

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

11

Brake Master Cyl (Fig. 5-4)

1шт.

12

1-3509

ROD

Push Rod

1шт.

13

19-43

BOLT,1/2" - 13 x 1", Gr 5

Capscrew

2шт.

14

19-109

WASHER,1/2"

2шт.

15

54-294

THRUST WASHER

Thrust Washer

2шт.

16

60-2367T1

ROD

Push Rod

1шт.

17

54-273

PEDAL

Brake Pedal

1шт.

18

11-19

SPRING

1шт.

19

4-1019

STOP

Bumper Stop

2шт.

20

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

21

19-653

LOCK NUT

Lock Nut

4шт.

22

22-729

SWITCH

Hydraulic Switch Brake

1шт.

23

19-2257

NUT

Jam Nut

1шт.

24

54-271

Clutch Pedal

1шт.

25

11-20

SPRING

1шт.

26

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

Bearing

4шт.

27

1-3416

Bracket

1шт.

28

1-3520

BUMPER

Molding

2шт.

29

19-92

NUT,7/16"-20, G2

1шт.

30

31-673

ROD, CONNECTING

Fitting

1шт.

31

19-341

LOCK NUT,3/8" - 16, GB

6шт.

32

19-91

NUT,3/8"-24, G5

2шт.
