(01-21) - RADIO AND MOUNTING, ALPINE ELECTRONIC CASSETTE RADIO

Запчасти Case IH KM-225 (01-21) - RADIO AND MOUNTING, ALPINE ELECTRONIC CASSETTE RADIO (10) - CAB

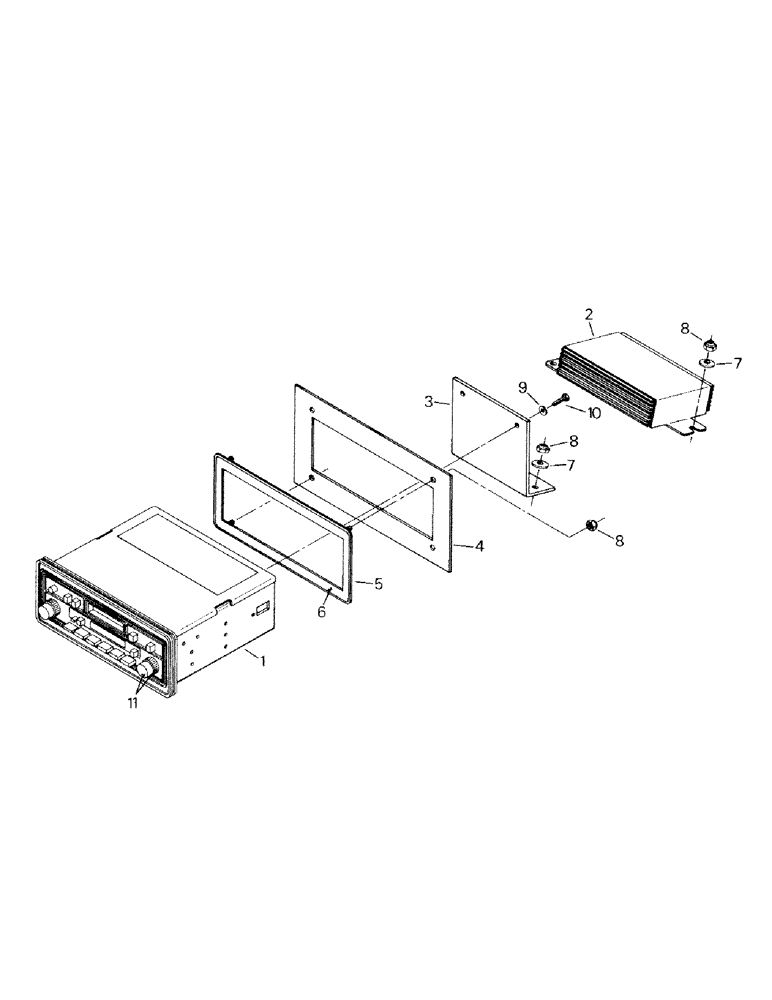

Схема запчастей Case IH KM-225 - (01-21) - RADIO AND MOUNTING, ALPINE ELECTRONIC CASSETTE RADIO (10) - CAB
3
6
8
10
8
9
5
4
8
2
7
11
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-3400T1

RADIO

Electronic Cassette Radio (incl Ref. 11)

1шт.

2

60-3401T1

AMPLIFIER

1шт.

3

60-3482T2

BRACKET

1шт.

4

60-3483T1

Plate

1шт.

5

60-3485T1

Mounting Plate

1шт.

6

60-3486T1

DECAL

1шт.

7

9421089

WASHER

5шт.

8

19-5563

LOCK NUT

Lock Nut

9шт.

9

19-603

LOCK WASHER,Ext Tooth, #10

2шт.

10

40-1172

BOLT,Hex, M4 x 6mm, Gr 8.8

Machine Screw (metric)

2шт.

11

60-3408T1

KIT

Knob Set (Left)

1шт.

60-3403T1

KIT

Knob Set (Right)

1шт.
