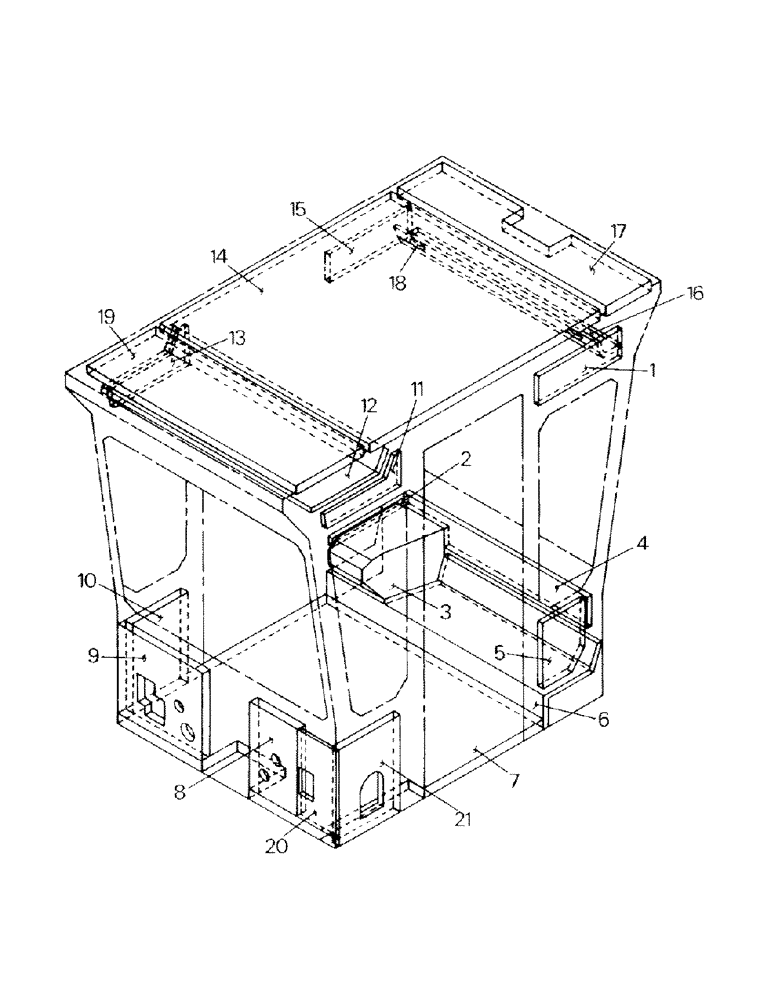

Запчасти Case IH KM-225 (01-05) - CAB INSULATION AND VINYL (10) - CAB

1

1-8092

ISOLATOR

Left Upper Rear Insulation

1шт.

2

54-347

ISOLATOR

Right Lower Rear Insulation

1шт.

3

1-1410T1

ISOLATOR

Hydraulic Cover Insulation

1шт.

1-2091

ISOLATOR

Top Cover Insulation (inside)

1шт.

1-2090

ISOLATOR

Side Cover Insulation (inside)

1шт.

1-1411

ISOLATOR

Front Cover Insulation (inside)

1шт.

4

54-350

ISOLATOR

Bottom Rear Insulation

1шт.

5

54-351

INSULATOR

Left Lower Rear Insulation

1шт.

6

60-1937T1

FLOOR MAT

Rear Floormat

1шт.

7

1-3532T2

FLOOR MAT

Floormat

1шт.

8

1-3533T2

ISOLATOR

Wrap-A-Round Insulation

1шт.

9

1-4562T1

ISOLATOR

Wrap-A-Round Insulation

1шт.

10

54-348

ISOLATOR

Right Side Front Insulation

1шт.

11

1-8719

ISOLATOR

Left Upper Front Insulation

1шт.

12

1-8109

INSULATOR

Front Console Insulation

1шт.

13

1-8718

INSULATOR

Right Upper Front Insulation

1шт.

14

1-8104

ISOLATOR

Headliner Insulation

1шт.

15

1-8103

ROOF LINING

Right Upper Rear Insulation

1шт.

16

1-8110

ISOLATOR

Rear Cover Insulation

1шт.

17

1-8112

ISOLATOR

Top Rear Insulation

1шт.

18

1-8111

ROOF LINING

Speaker Insulation

1шт.

19

1-8108

INSULATOR

Top Front Insulation

1шт.

20

25-1005

ISOLATOR

Module Front Insulation

1шт.

21

1-8612

ISOLATOR

Module Front Insulation

1шт.

22

1-9839

ISOLATOR

Steering Control Valve Insulation (not shown)

1шт.

23

27-1

ADHESIVE

(1 gal.) (not shown)

1шт.
