Запчасти Case IH KM-225 (02-17) - AUDIO ALARM ASSEMBLY (06) - ELECTRICAL

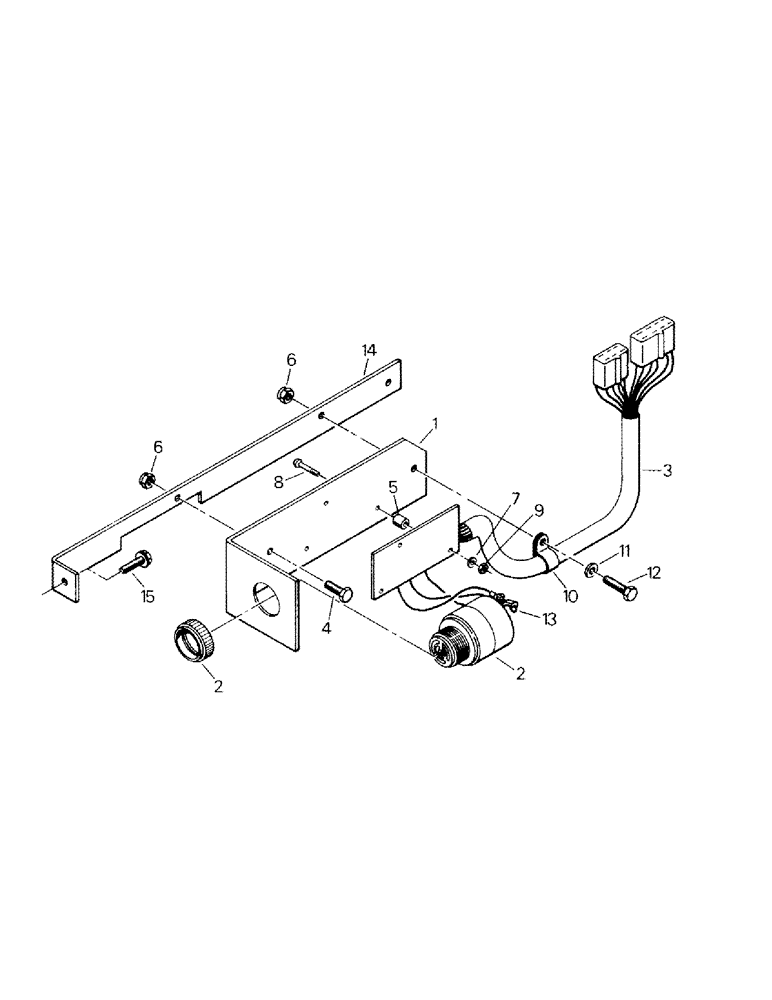

Схема запчастей Case IH KM-225 - (02-17) - AUDIO ALARM ASSEMBLY (06) - ELECTRICAL
1
8
9
5
13
14
12
6
3
15
6
11
10
2
2
7
4

Артикул

Название

Примечание

Количество

20-1216T92

ALARM

Audio Alarm Assy consists of Ref. 1-13

1шт.

1

60-1360T2

BRACKET

Mounting Bracket

1шт.

2

20-1215T91

ALARM

Audio Alarm

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

20-1215T92

ALARM

Audio Alarm (incl Ref. 13)

1шт.

Superseded, Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

20-1211T92

ASSEMBLY

Electronic Assy

1шт.

4

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Capscrew

1шт.

5

2-3440T1

SPACER

3шт.

6

19-1081

LOCK NUT

Lock Nut

2шт.

7

138522

YOKE

Lock Washer

3шт.

8

19-4874

Machine Screw

3шт.

9

225-14104

NUT,#4-40

3шт.

10

22-1109

CLAMP

1шт.

11

19-105

WASHER,1/4", SAE

1шт.

12

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Capscrew

1шт.

13

20-1940T1

RHEOSTAT

Varistor Assy

1шт.

14

4-1003

BRACKET

Mounting Bracket

1шт.

15

19-5391

SCREW,Hex Flg, 1/4" - 20 x 1/2"

Machine Screw

1шт.

Выбрано товаров: 19
