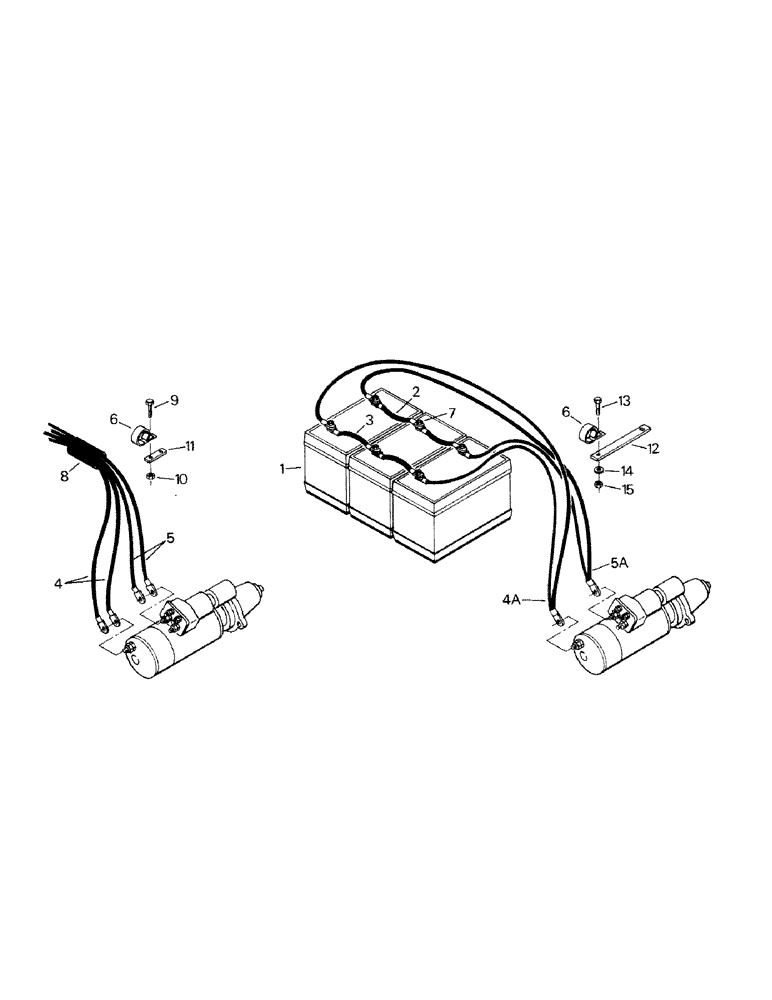

Запчасти Case IH KM-225 (02-06) - STARTER AND BATTERY ELECTRICAL (06) - ELECTRICAL

1

2-7000

WET BATTERY

3шт.

2

20-1743T1

CABLE

Battery Cable (Pos)

2шт.

3

20-1744T1

CABLE

Battery Cable (Neg)

2шт.

4

1-4963

CABLE

Battery Cable (Neg)

2шт.

4a

20-1106T1

CABLE

Battery Cable (Neg)

1шт.

5

1-4964

CABLE

Battery Cable (Pos)

2шт.

1-4964T1

CABLE

Battery Cable (Pos)

1шт.

Later style cable which has conduit added for better protection. It will replace the earlier style but larger clamp & hose are needed, Refs. 6 & 8.

1шт.

5a

20-1913T1

CABLE

Battery Cable (Pos)

1шт.

20-1913T2

CABLE

Battery Cable (Pos)

1шт.

Later style cable which has conduit added for better protection. It will replace the earlier style but larger clamp & hose are needed, Refs. 6 & 8.

1шт.

6

32-343

MOUNTING CLIP

Clamp (w/o Conduit on Refs. 5 & 5A)

1шт.

31-1427

MOUNTING CLIP

Clamp (w/ Conduit on Refs. 5 & 5A)

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

6шт.

8

1-4571

HOSE

(w/o Conduit on Ref. 5)

2шт.

31-2457

ADAPTER

Hose (w/ Conduit on Ref. 5)

1шт.

9

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew

1шт.

10

232-4136

LOCK NUT,3/8"-16, GC

1шт.

11

4-588

Spacer

1шт.

12

25-395

STRAP

1шт.

13

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Capscrew

1шт.

14

19-223

WASHER,1/4"

1шт.

15

19-76

NUT,1/4"-20, G5

1шт.

16

19-464

CABLE TIE

(not shown)

2шт.
