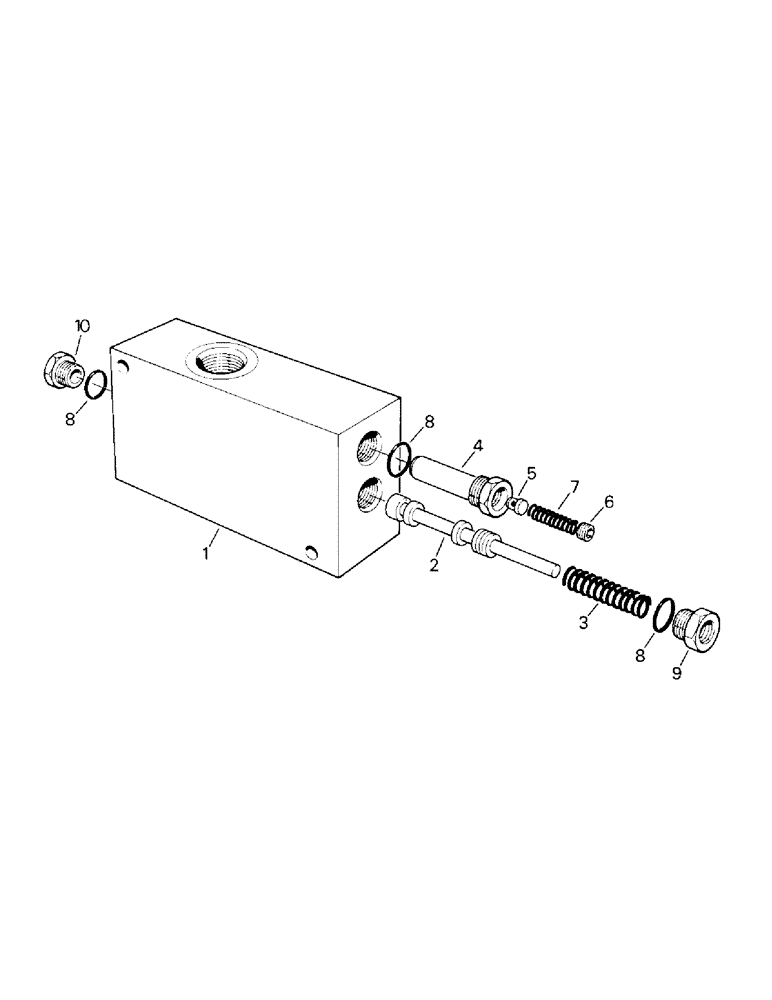

Запчасти Case IH CS-360 (08-12) - PRIORITY VALVE ASSEMBLY (07) - HYDRAULICS

1-2391T91

VALVE

Priority Valve Assy, Includes: Ref. Nos. 1-10)

1шт.

1

18-1600

VALVE

Housing

1шт.

2

18-1599

SPOOL

1шт.

3

18-1598

SPRING

3шт.

50-1959T91

VALVE

Relief Cartridge (50-1289T91) Includes: Ref. Nos. 4-8)

1шт.

Superseded - Old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

NSS

NOT SOLD SEPARAT

Poppet

1шт.

6

NSS

NOT SOLD SEPARAT

Adjusting Screw

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

18-1592

O-RING

3шт.

9

18-1591

PLUG

Retainer Plug

1шт.

10

18-1590

PLUG

Assy (with O-Ring)

1шт.
