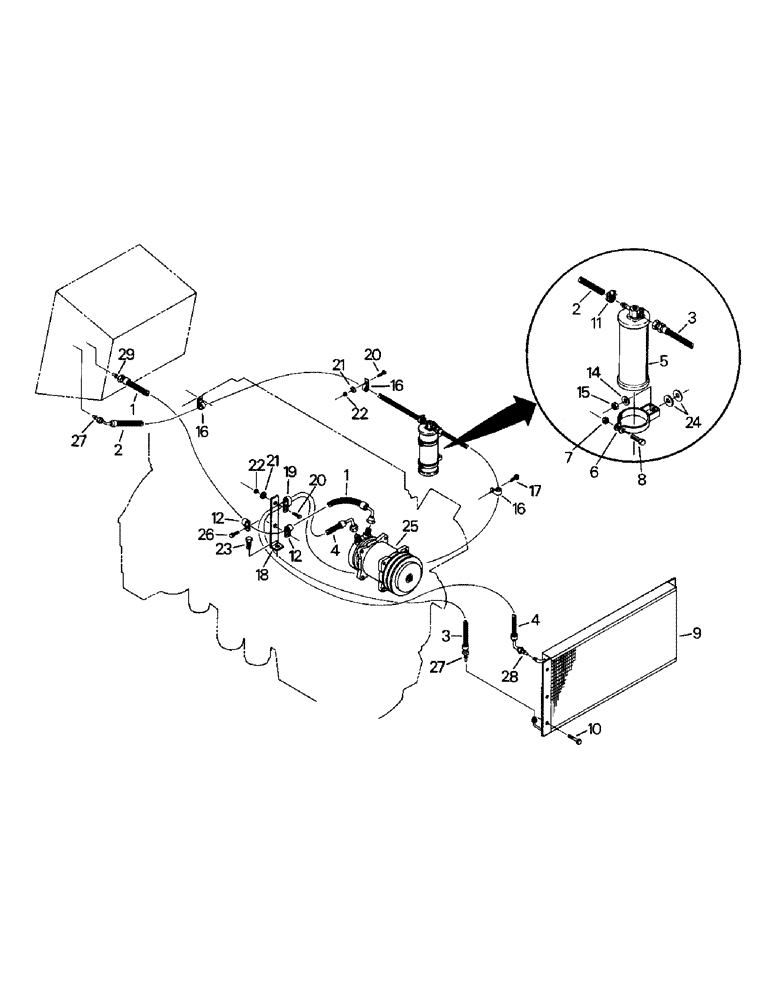

Запчасти Case IH CR-1280 (03-11) - A/C PLUMBING, CUMMINS L10 ENGINE (03) - Climate Control

1

31-2517

HOSE,15.88mm ID x 62mm L

1шт.

2

31-2503

HOSE

1шт.

3

31-2500

HOSE

1шт.

4

31-2518

HOSE

1шт.

5

1-7778

AIR CONDITIONER

Receiver Drier

1шт.

6

1-8563

CLAMP BRACKET

Bracket

2шт.

7

280129

NUT,1/4"-20

2шт.

8

19-720

BOLT,1/4" - 20 x 3/4"

Capscrew

2шт.

9

60-4335T1

CONDENSER

1шт.

10

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Capscrew

6шт.

11

25-285

SQUARE NUT,Sq, 5/16"-18

Clamp

1шт.

12

32-161

COLLAR CLAMP

Clamp

2шт.

13

2-4152T1

COLLAR CLAMP

Cable Tie, not shown

1шт.

14

19-106

WASHER,5/16", SAE

2шт.

15

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

2шт.

16

31-1776

MOUNTING CLIP

Clamp

3шт.

17

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

Capscrew, metric

1шт.

This capscrew will only be used on early models with the clamp mounted on the engine. On later models this clamp is mounted on the A/C compressor.

1шт.

18

50-2624T1

BRACKET

1шт.

19

31-2488

CLAMP

2шт.

20

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Capscrew

4шт.

21

19-224

WASHER,3/8", SAE

4шт.

22

232-4136

LOCK NUT,3/8"-16, GC

4шт.

23

40-1213

CAPSCREW,Hex, M12 x 1.75 x 25mm, Gr 8.8

metric

1шт.

24

19-700

WASHER,5/16"

4шт.

25

A/C Compressor Assy., see Fig. 03-13

1шт.

26

NAP

Capscrew, existing hardware

1шт.

27

31-1807

O-RING

O-Ring

2шт.

28

31-1808

O-RING

O-Ring

1шт.

29

31-1809

O-RING

1шт.
