Запчасти Case IH CR-1280 (01-34) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (10) - CAB

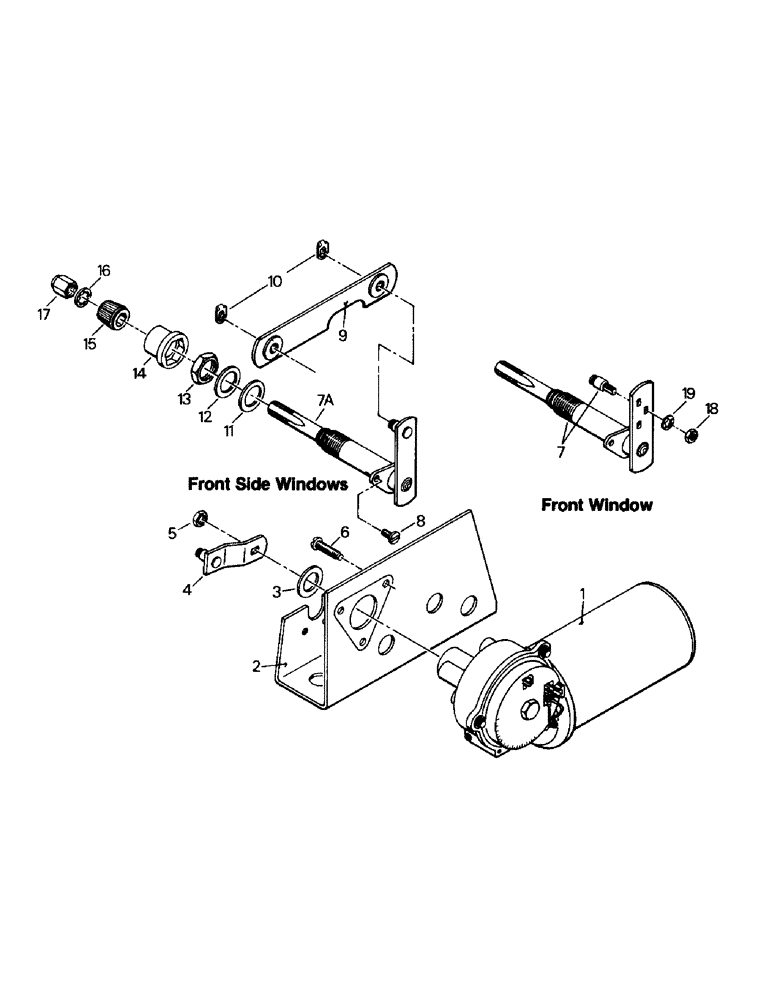

Схема запчастей Case IH CR-1280 - (01-34) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS (10) - CAB
9
10
17
7a
16
7
12
15
1
18
3
11
2
4
19
14
6
5
13
8

Артикул

Название

Примечание

Количество

60-1147T91

DRIVE

Wiper Drive Assy (Front Window) consists of Ref. 1-19

1шт.

60-1437T91

DRIVE

Wiper Drive Assy (Left Front Side Window) consists of Ref. 1-17

1шт.

60-1438T91

DRIVE

Wiper Drive Assy (Right Front Side Window)

1шт.

1

20-1205T1

ADAPTER

Wiper Motor (Front Window)

1шт.

2-6866T1

MOTOR, ELECTRIC

Wiper Motor (Front Side Windows)

1шт.

2

1-2681

SUPPORT

Mounting Bracket

1шт.

3

1-2678

WASHER

Bowed Washer

1шт.

4

2-6867T1

ARM

Drive Lever

1шт.

5

1-2680

NUT

Nut & Lock Washer

1шт.

6

1-2682

BOLT

Screw & Lock Washer

3шт.

7

2-6869T91

SHAFT ASSY.

Shaft, incl Refs. 18 & 19)

1шт.

7a

2-6868T1

SHAFT ASSY.

Shaft

1шт.

8

2-6870T1

SCREW

& Lock Washer

2шт.

9

1-2683

LINK

Connecting Link

1шт.

10

1-2685

CLIP

Spring Clip

2шт.

11

60-3495T1

WASHER

1шт.

12

60-3496T2

WASHER

1шт.

13

60-3497T1

NUT

1шт.

14

60-3498T1

COVER

Cap

1шт.

15

60-3499T2

KNOB

Knurled Driver

1шт.

16

60-3501T1

WASHER

1шт.

17

60-3500T1

CAP

Nut

1шт.

18

19-936

JAM NUT

Jam Nut

1шт.

19

19-890

LOCK WASHER,Int Tooth, 1/4"

1шт.

Выбрано товаров: 24
