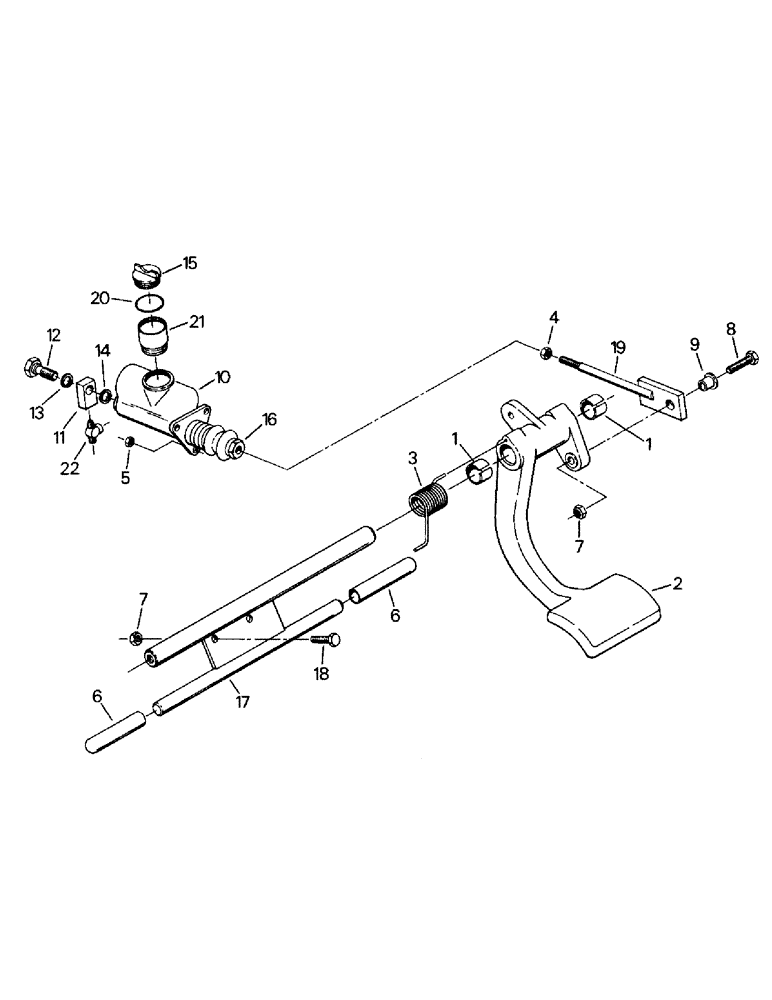

Запчасти Case IH CR-1280 (01-32) - BRAKE CONTROLS (10) - CAB

1

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

Bearing

2шт.

2

60-4251T2

PEDAL

(60-425T1)

1шт.

Old part can be used on all tractors. New part should be used when stock is depleted.

1шт.

3

11-19

SPRING

1шт.

4

19-92

NUT,7/16"-20, G2

1шт.

5

19-341

LOCK NUT,3/8" - 16, GB

3шт.

6

1-3520

BUMPER

Molding

2шт.

7

19-653

LOCK NUT

Lock Nut

3шт.

8

19-46

BOLT,1/2" - 13 x 2", Gr 5

Capscrew

1шт.

9

60-4337T1

FLANGED BEARING

Flange Bearing

1шт.

10

1-2961T91

KIT

Brake Master Cylinder Assy (incl Refs. 11-16)

1шт.

35-1079

SEAL KIT

Minor Repair Kit

1шт.

11

31-664

FITTING

Swivel Fitting

1шт.

12

31-663

BANJO BOLT

Outlet Port Bolt

1шт.

13

1-1799

GASKET

1шт.

14

1-1800

GASKET

1шт.

15

1-9956

PLUG

Cap

1шт.

16

1-2960

STEM

Push Rod

1шт.

17

60-4385T1

Pedal Mount

1шт.

18

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Capscrew

2шт.

19

60-4306T1

THREADED ROD

Push Rod

1шт.

20

60-4581T1

GASKET

Filler Plug Gasket

1шт.

21

60-4546T1

INSERT

Standpipe

1шт.

22

1-3100

TEE

1шт.
